Eaton Dana 44 Front/Rear Master Install Kit – K-D44-FR

Eaton

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eaton master install kit with bearings for Dana 44 axles
  • Front or rear axle location
  • Covers differential installs and ring and pinion replacement
  • Part number EATK-D44-FR
  • Fitment is by axle type, not by a specific vehicle

Description

Overview

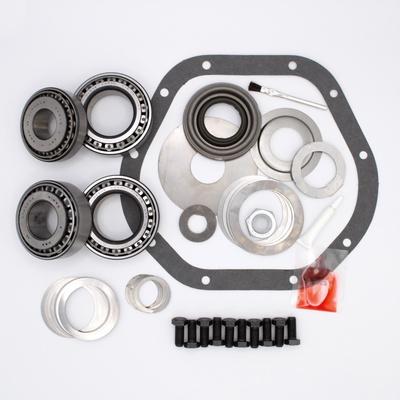

The Eaton EATK-D44-FR is a master install kit with bearings for Dana 44 axles, usable at the front or rear axle location. It gathers the components needed to install an Eaton differential or replace a ring and pinion in one kit. Eaton describes premium bearings and components that support long life and quiet operation.

Key features

  • Master kit with bearings for Dana 44 axles
  • Front or rear axle location
  • Brings together the parts needed for a differential install or ring and pinion replacement
  • Bearings and components are designed for long life and quiet operation.

Preparing for a rebuild

A master kit is most useful when the axle is opened for work. Before starting, clean the housing thoroughly, remove old seals and inspect the bearing bores for scoring or wear. Damage found at this stage can change which parts need replacing, so check before the new components go in.

Gear set setup depends on pinion depth, carrier shims and preload, which are measured and adjusted during assembly. Keep removed shims and bearing races together, and use fresh gasket material and the correct fluid for the axle. Careful work at this stage helps the new parts run quietly and last.

  • Clean the housing and mating surfaces
  • Inspect bearing bores for scoring
  • Replace seals and gaskets at the same time
  • Record shim positions as you remove them

Specifications

Brand Eaton
Part number EATK-D44-FR
Kit type Master install kit with bearings
Axle manufacturer Dana
Axle type Dana 44
Axle location Front or rear

Vehicle fitment

Fitment is by axle, not by vehicle. This kit is for Dana 44 axles, and no specific year, make, model or trim is stated.

Confirm that your axle is a Dana 44 before ordering. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Ring and pinion replacement depends on gear mesh and bearing preload, so a qualified differential technician should set up the install.

What’s included

A master install kit with bearings for Dana 44 axles.

Not included: Confirm the gear set, differential case and axle housing against your rebuild plan before ordering.

Questions & Answers

What is the Eaton EATK-D44-FR?

It is a master differential install kit with bearings from Eaton, made for Dana 44 axles at the front or rear location. The kit collects the parts needed to install an Eaton differential or replace a ring and pinion.

Does the kit include a ring and pinion gear set?

The kit includes the components needed to install an Eaton differential or replace a ring and pinion. Check the contents against your build before ordering to see whether a gear set is needed.

Which axles is it made for?

It is made for Dana 44 axles, in front or rear locations. Confirm your axle is a Dana 44 and that your vehicle's year, model and trim match before ordering.

Should the pinion seal be replaced during a rebuild?

Yes, it is usually a good time to replace it. Pinion seals cost little compared with the labor of reopening the axle later. Inspect the seal surface for grooves before installing the new seal, and use the correct installation tool.

Is a master kit needed for a simple fluid change?

No. A master kit is for opening the axle for differential or ring and pinion work. A fluid change only needs the correct gear oil and a clean drain and fill process, so the kit is not necessary for that job.
