Crown Automotive Dana 35 Master Ring and Pinion Installation Kit – 3171166K

Crown Automotive

$155.56In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 20, 2026 8:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Crown Automotive 3171166K master ring and pinion installation kit for Dana 35 rear axles
  • Includes bearings, pinion seal, crush sleeve, carrier bearings, complete shim kit and ring gear bolts
  • Part number 3171166K, UPC 848399075526

Description

Overview

The Crown Automotive 3171166K is a master ring and pinion installation kit for Dana 35 rear axles, supplied with bearings. Crown Automotive built it to collect the hard-to-find small parts used in a differential rebuild, so those items come in one package.

The kit is a master kit with bearings for the rear position. Dana 35 is the only fitment detail, and no vehicle years or models are shown.

Key features

  • Pinion seal, pinion bearings and crush sleeve
  • Carrier bearings and a complete shim kit
  • Ring gear bolts and cover gasket
  • Silicone sealer and Lock Tite included
  • Gear marking compound included

Reassembly and sealing

Reassembly on a Dana 35 rear is mostly about clean surfaces and correct sequence. Sealers and threadlocks are useful at joints where leakage or loosening is a risk, but they should be applied sparingly and only where the sequence calls for them. Excess sealer can squeeze into the bearing or gear area and cause trouble later.

Carrier bearings and the pinion bearing should be seated squarely, and the shim pack should be measured rather than guessed. Inspect the cover gasket and the mating surfaces for nicks before closing the housing, since small damage can leak under load. Fresh fluid after setup is a sensible final step.

  • Clean all mating surfaces before sealing
  • Apply sealer and threadlock only where needed
  • Measure the shim pack before final assembly

Specifications

Brand Crown Automotive
Part number 3171166K
UPC 848399075526
Kit type Master kit with bearings
Axle type Dana 35
Position Rear

Vehicle fitment

Fitment is limited to the Dana 35 axle type in the rear position. Check year, model and trim against your vehicle before ordering.

Match the Dana 35 axle type to your rear housing, then verify year, model and trim against your vehicle before ordering.

Installation notes

The silicone sealer and Lock Tite are used on specific joints during reassembly, so follow the sequence for your axle. Pinion depth and gear backlash are usually set by a gear setup professional.

What’s included

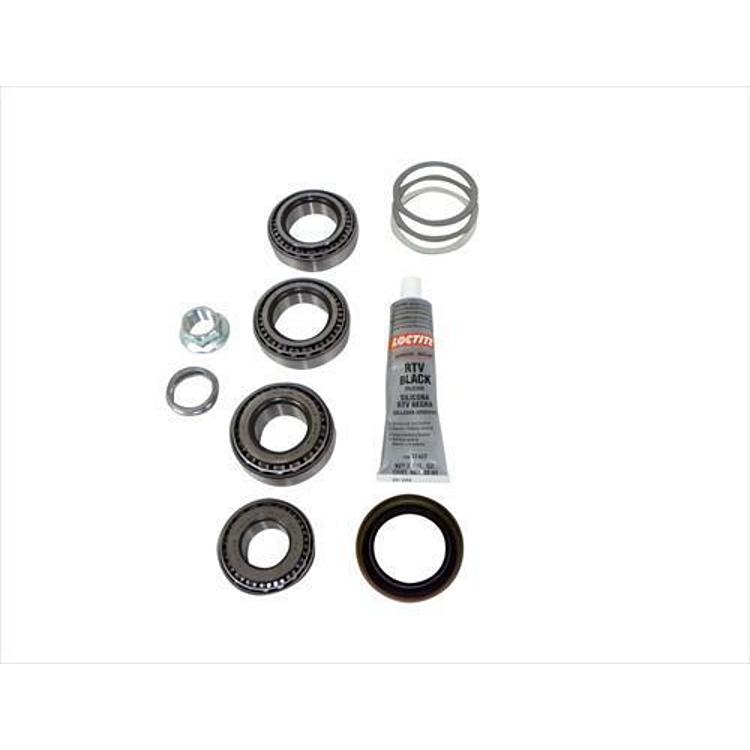

Pinion seal, pinion bearings, crush sleeve, pinion nut, carrier bearings, ring gear bolts, complete shim kit, cover gasket, silicone sealer, Lock Tite and gear marking compound.

Not included: The ring and pinion gear set is not part of the kit, so plan to source it separately.

SKU: CRO3171166K Category:

Specification

Shipping weight 4.10 lbs
Package dimensions 8.00 × 6.00 × 4.50 in
brands

Questions & Answers

Is this kit made for a Dana 35 axle?

Yes. It is made for the Dana 35 axle type in the rear position. Match the axle type on your housing and check fit for your vehicle before installing the kit.

Does the kit include bearings?

Yes. The kit is a master kit with bearings, and the contents name pinion bearings and carrier bearings along with the pinion seal, crush sleeve and complete shim kit.

What is the part number?

The part number is 3171166K from Crown Automotive, and the UPC is 848399075526. Both identify this master ring and pinion installation kit for Dana 35 rear axles.

How do you know when the pinion seal needs replacing?

Replace the pinion seal whenever the yoke is removed, and when fluid seeps around the pinion area. A worn seal can let fluid escape and draw in dirt, so it is usually replaced with the bearings during a rebuild.
