G2 GM 9.25 Inch IFS Late Master Ring and Pinion Installation Kit – 35-2096A

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Master installation kit with bearings for a GM 9.25-inch independent front suspension axle
  • Late-style 9.25-inch IFS kit
  • Part number G/235-2096A
  • Includes bearings, shims, pinion nut and seals

Description

Overview

The G2 Axle and Gear GM 9.25-inch IFS master installation kit, part G/235-2096A, is for the front 9.25-inch independent front suspension axle in the late style.

The kit covers the install parts that a new ring and pinion needs on this axle, so the install is not held up by missing bearings or shims.

The GM 9.25-inch IFS housing is a different unit from a solid Dana front axle, so the kit’s axle type has to match the axle in your truck. Check that before ordering, since the bearings and shims are sized for this housing.

Key features

  • Master kit with bearings
  • Shim kit for setting gear depth

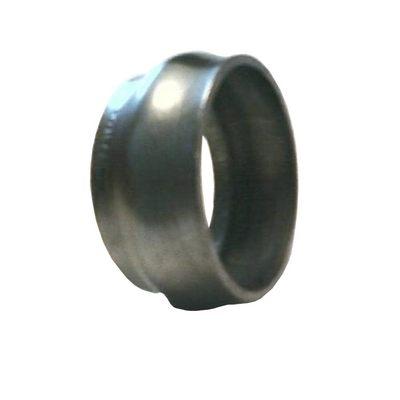

  • Pinion seal, pinion nut and crush sleeve
  • Ring gear bolts, silicone sealer, Loctite and gear marking compound

Why IFS housings differ

An independent front suspension housing is built differently from a solid front axle, with its own carrier mounting and axle shaft arrangement. The gears and bearings are sized for that housing, so a kit for a solid axle will not line up correctly. Confirm the housing before any parts are ordered.

IFS rebuilds also involve more linkage and axle joints than a solid setup, so keep the front end supported and clean while the carrier is out. Check the axle shaft joints and seals at the same time, since they are easy to overlook during the gear swap.

  • Confirm the housing type before ordering
  • Keep the carrier and axle joints clean during work
  • Inspect the axle shaft seals while the carrier is out

Specifications

Brand G2 Axle and Gear
Part number G/235-2096A
Axle location Front
Axle type GM 9.25 inches IFS, late
Kit type Master kit with bearings

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering, and confirm the axle type matches the 9.25-inch IFS on your truck.

Installation notes

Pinion depth and carrier preload are set with the shims and bearings in this kit. Mark the teeth and check the pattern before the front end is put back into service.

What’s included

Bearings, shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, Loctite and gear marking compound.

Not included: the GM 9.25-inch IFS ring and pinion gears.

Questions & Answers

Does this kit fit a GM 9.25-inch IFS front axle?

It is for the late-style GM 9.25-inch IFS front axle. Confirm fit for your vehicle's year, model and trim before ordering, and make sure the axle type matches your truck.

Are gears included with the install kit?

No. The kit has bearings and install parts only, so the ring and pinion gears are a separate purchase that must match the 9.25-inch IFS axle.

What is in the kit for setting gear depth?

A shim kit is included, along with the pinion nut and crush sleeve needed to set gear depth and preload on the front axle. Gear marking compound is included to check the tooth contact.

Does the kit include sealant?

Yes. It includes silicone sealer, Loctite and gear marking compound for the install, along with the seals and bearings described in the kit.

Do IFS ring and pinion sets need special gear marking?

The marking process is the same as on a solid axle: coat the ring gear teeth, rotate the carrier and read the contact pattern. The housing layout means the shim stack and bearing sizes must match this housing exactly.
