G2 Dana 30 JK Minor Ring and Pinion Installation Kit – 25-2050

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Minor installation kit for the Dana 30 JK front axle
  • Shims, crush sleeve, pinion nut and seal, ring gear bolts
  • Thread locker, marking compound and silicone sealer
  • No bearings or gears

Description

Overview

The G2 Axle and Gear 25-2050 is a minor ring and pinion installation kit for the front Dana 30 axle of Jeep Wrangler JK models, for installers who do not need to change the bearings.

G2 says minor installation kits are meant for newer vehicles whose bearings are in good shape. The kit gathers the parts that a parts store seldom stocks: a shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, thread locker and gear marking compound.

The word minor in G2’s naming means the kit does not include bearings. That fits a newer vehicle whose bearings are in good shape, as G2 describes, and it keeps the cost of a regear lower than a full master kit. The parts included, such as the crush sleeve and shims, are consumables that are normally replaced whenever a ring and pinion is installed. The Dana 30 JK is the front axle of non-Rubicon Wranglers.

Key features

  • Minor installation kit for the Dana 30 JK front axle
  • Pinion nut, pinion seal and crush sleeve
  • Pinion shims and carrier shims
  • Ring gear bolts
  • Thread locker, gear marking compound and silicone sealer
  • No bearings

Setting pinion depth and backlash

A ring and pinion swap is a setup job as much as a parts job. Pinion depth controls where the teeth meet, and backlash sets how much play sits between the gears. Marking compound shows the tooth contact pattern, which tells you whether the shims need adjusting before the carrier is fully torqued.

Installers who reuse bearings should check their condition first, because a worn bearing changes preload and can undo a careful setup. Keep the pinion crush sleeve fresh and tighten it in small steps to reach preload without overcrushing. Record shim thicknesses as you go so the final setup can be repeated.

  • Clean the carrier and housing surfaces before assembly
  • Check the pinion nut torque at each step
  • Use a dial indicator for backlash readings

Specifications

Brand G2 Axle and Gear
Part number 25-2050
UPC 631410095173
Part type Minor ring and pinion installation kit
Axle Dana 30 JK
Axle location Front
Kit type Minor kit, no bearings
Contents Pinion nut, pinion seal, crush sleeve, pinion shims, carrier shims, ring gear bolts, thread locking compound, gear marking compound, silicone sealer

Vehicle fitment

It is for the front Dana 30 JK axle of 2007–2018 Jeep Wrangler JK models.

It is for the front Dana 30 axle of 2007–2018 Jeep Wrangler JK models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A minor kit assumes the bearings are reused. The shims and gear marking compound exist so pinion depth and backlash can be set, which calls for gear setup experience.

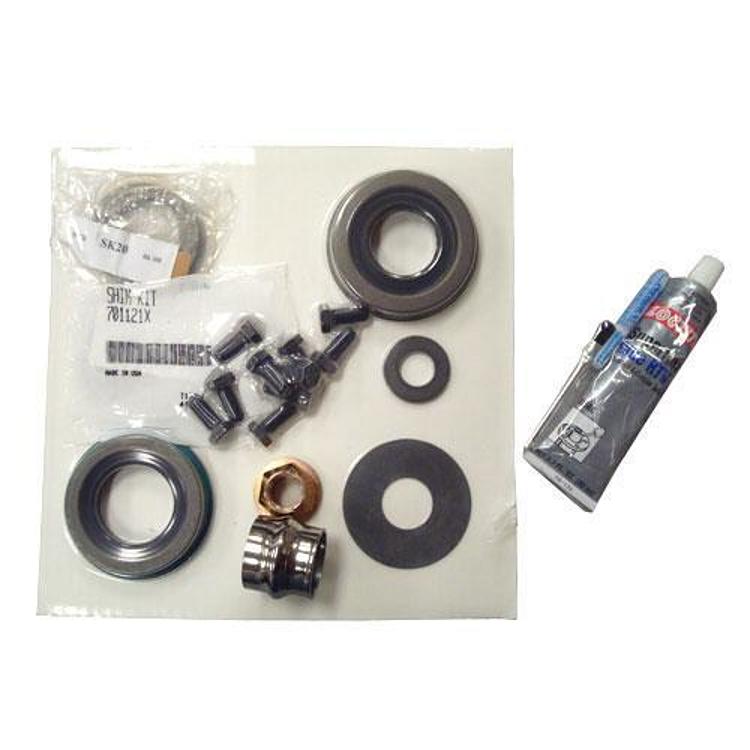

What’s included

  • Pinion nut
  • Pinion seal
  • Crush sleeve
  • Pinion shims
  • Carrier shims
  • Ring gear bolts
  • Thread locking compound
  • Gear marking compound
  • Silicone sealer

Not included: Ring and pinion gears and bearings.

SKU: G/225-2050 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What axle does the G2 25-2050 fit?

It fits the front Dana 30 JK axle of the 2007–2018 Jeep Wrangler JK, which is the front axle of non-Rubicon models. The kit is for installers who keep the existing bearings.

What does the 25-2050 contain?

The kit has a pinion nut, pinion seal, crush sleeve, pinion and carrier shims, ring gear bolts, thread locker, gear marking compound and silicone sealer, but no bearings.

Does the 25-2050 include bearings?

No. It is a minor kit for installs that keep the existing bearings, so bearings are a separate purchase if yours need replacing.

Does it include the gears?

No. The kit holds installation parts only, so a matching ring and pinion gear set is needed as a separate part.

What tools are needed beyond the kit?

A dial indicator for backlash, a pinion depth gauge set and a torque wrench are commonly needed. A bearing puller and a press may also be needed if the existing bearings come off.
