Overview

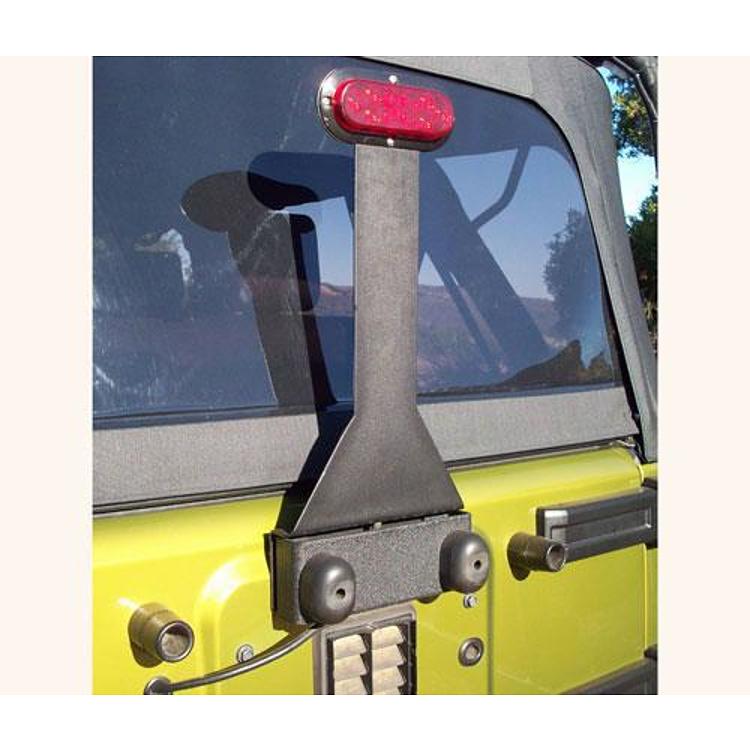

The Body Armor 4×4 JK Wrangler 3rd Brake Light Kit, part number JK-5120, is a third brake light bracket with a D.O.T. approved LED light for the 2007-2018 Jeep Wrangler JK. It fits 2 and 4-door models.
The light can be seen above tires up to 37 inches when the kit is used with the brand’s Swing-A-Way Carrier.
Key features

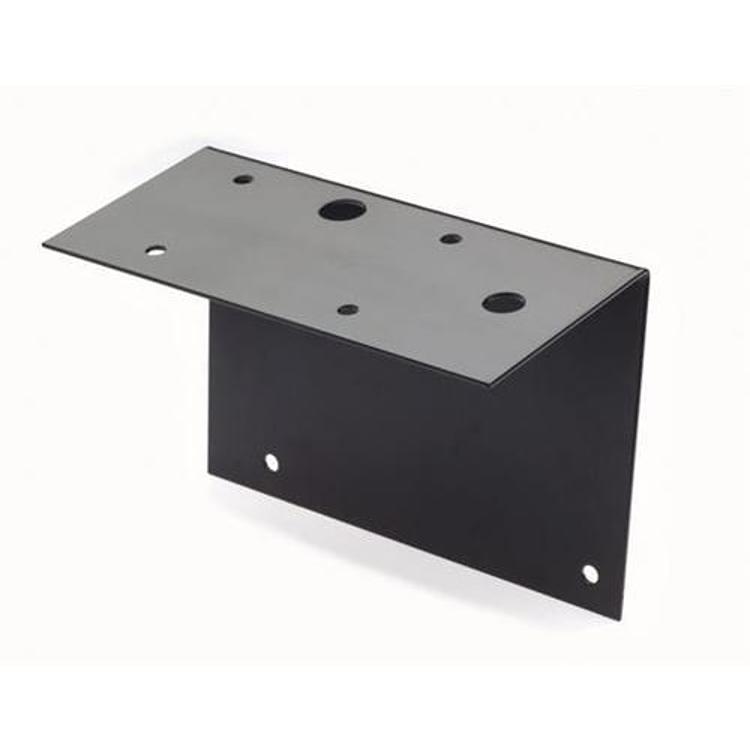

- Cold-rolled 1/8″ steel plate bracket with a 1/2″ x 1/2″ backing tube
- Black powdercoated bracket and black ABS light bezel
- D.O.T. approved LED light
- Two 30″ wire leads for hard-wiring into the OE harness
- Visibility over tires up to 37″ on the Swing-A-Way Carrier
Third brake light setup
A third brake light sits high on the rear of the vehicle, so its visibility depends on height, angle and what the spare tire or carrier blocks. Before mounting, check the bracket’s clearance against the tailgate, the spare and any rear accessories, and confirm the light can open or move without striking anything. Visibility to following drivers matters more than looks, so position the light where it stays clear of tire spray and mud.
The bracket’s backing tube and steel plate carry the weight of the light and any carrier attachments, so tighten fasteners to the bolt pattern and check them after the first drives. Wiring a brake light into the factory harness requires a correct tap; a poor splice can leave the light dim or cause flicker. Inspect the lens and bezel after trail use, since cracks let moisture into the LED light.
- Check clearance against the tailgate and spare
- Confirm visibility over tires and carriers
- Tighten fasteners and recheck after first drives
- Seal wiring splices against moisture
Specifications
| Brand | Body Armor 4×4 |
|---|---|
| Part number | JK-5120 |
| UPC | 859909001843 |
| Bracket material | Cold-rolled 1/8″ steel plate |
| Backing tube | 1/2″ x 1/2″ |
| Finish | Black powdercoated bracket, black ABS light bezel |
| Light | D.O.T. approved LED |
| Wire leads | Two 30″ |
| Body styles | 2 and 4-door models |
Vehicle fitment
It fits the 2007-2018 Jeep Wrangler JK. It does not cover the earlier TJ or LJ Wrangler or the JL Wrangler. Confirm your vehicle’s year, model and trim before ordering.
The JK reference does not cover the earlier TJ or LJ Wrangler or the JL Wrangler. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The LED light has two 30-inch wire leads for hard-wiring into the factory harness. Have a qualified installer wire it, and check local rules for third brake lights before use.
What’s included
The kit includes the black bracket and the D.O.T. approved LED light with its two 30″ wire leads.
