Overview

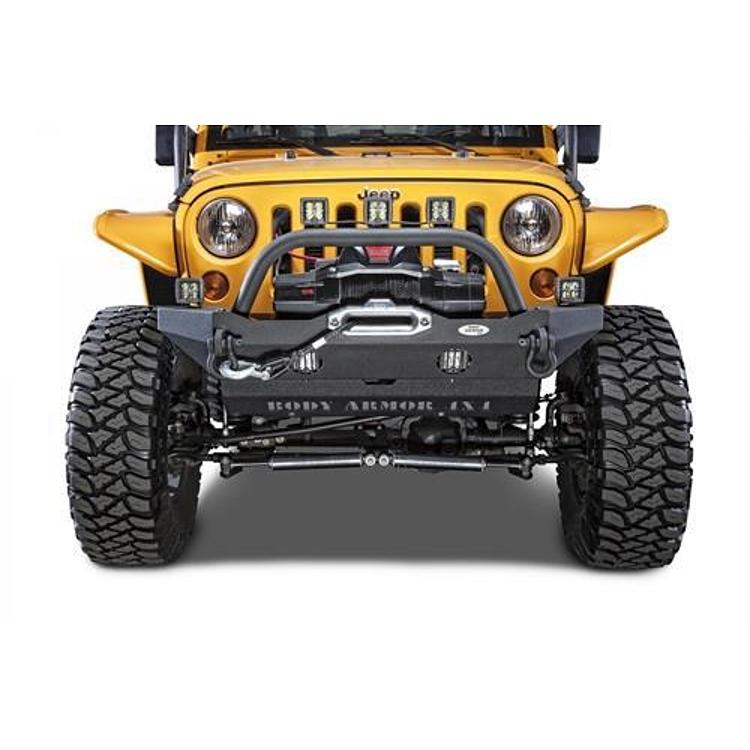

The Body Armor 4×4 JK Wrangler stubby front winch bumper with grill guard, part number JK-19532, is a textured black powder coated steel bumper for the Jeep Wrangler JK (2007-2018), in 2 and 4-door models. It combines an integrated winch plate, a braced grille guard hoop and reinforced wings.
Body Armor 4×4 forms the bumper from 3/16-inch steel plate, sculpted to suit the JK styling, and keeps the stubby shape so it does not overpower the front of the Jeep. The winch plate has fairlead mounts, shackle mounts are integrated for recovery, and the hoop carries three light tabs. Two 4-inch light pockets with a laser cut steel screen sit under the winch plate. The bumper retains the factory vacuum pump location and installs with bolts and no drilling.
Key features
- Stubby design formed from 3/16-inch steel plate
- Integrated winch plate with fairlead mounts

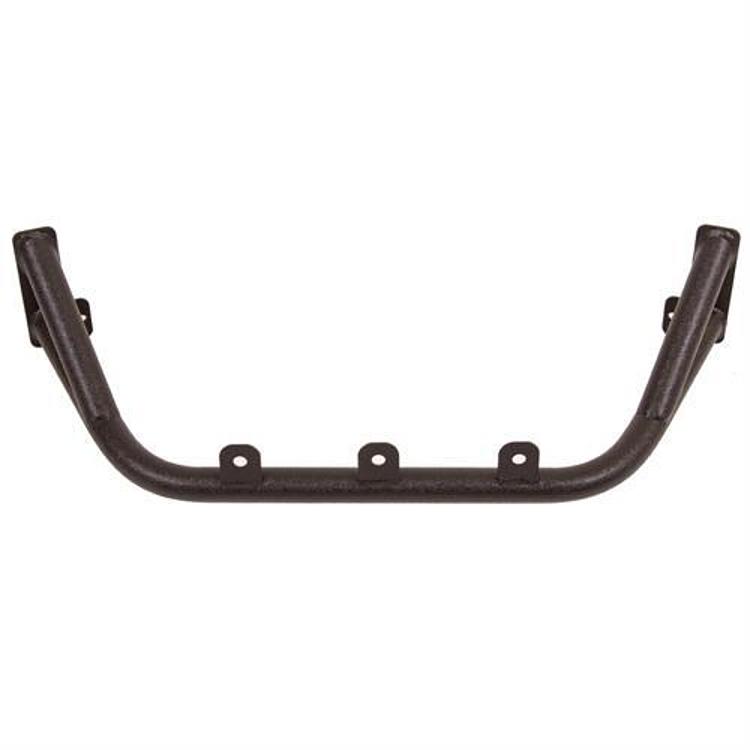

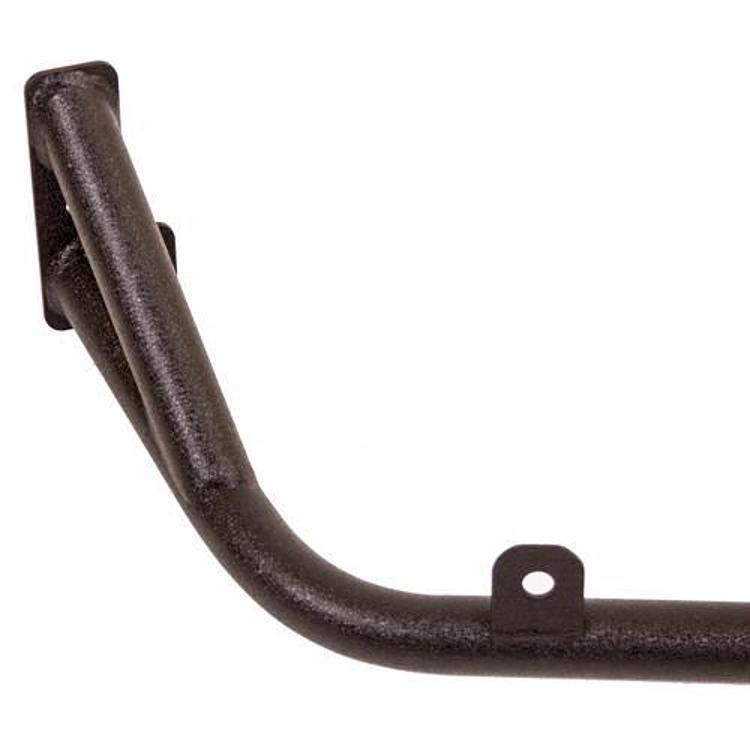

- Grille guard with braced hoop included

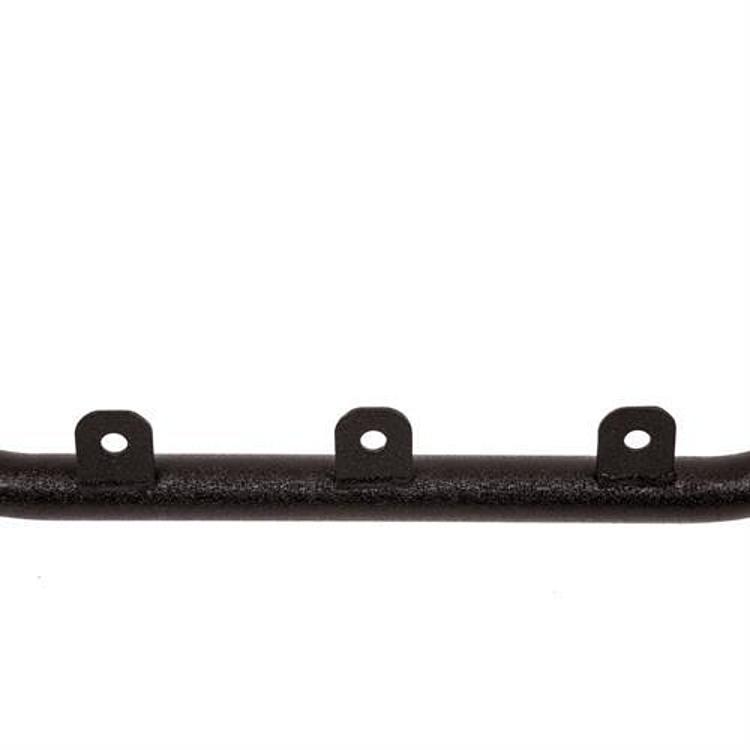

- Three light mounting tabs on the hoop

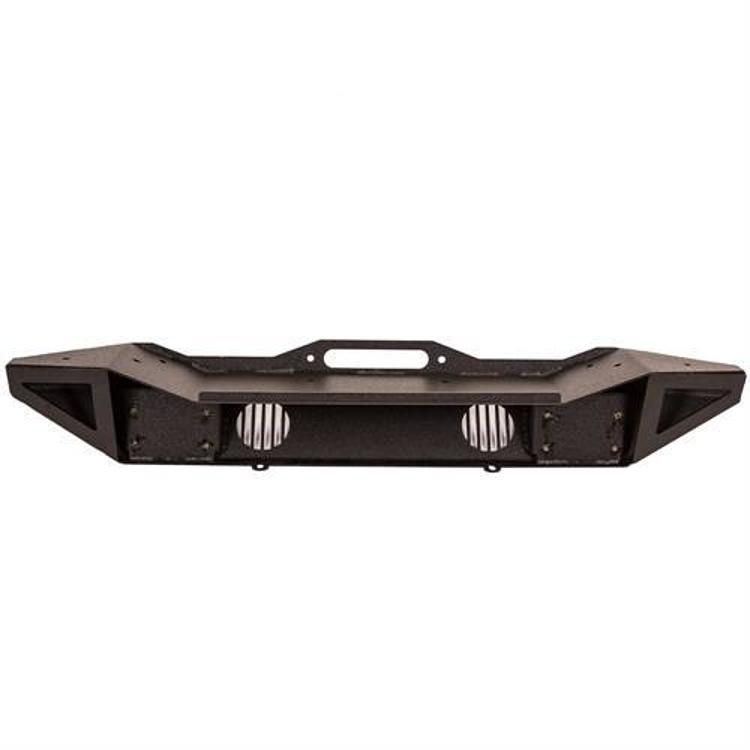

- Two 4-inch light pockets under the winch plate with laser cut steel screen
- Integrated shackle mounts for recovery points
- Retains the factory vacuum pump location
- Easy bolt-on installation, no drilling required
Stubby winch bumper considerations
A stubby front bumper keeps the approach and departure angles close to the factory shape, which helps on trails where a long bumper would hit rocks first. The winch plate and shackle mounts take the load during recovery, so the winch, fairleads and mounting bolts should be matched to the vehicle’s weight and the pulls you expect. A grille guard adds protection for the radiator and headlights, but it also adds weight at the front end.
Light pockets and hoop tabs make it easy to plan a light bar or pod set before the bumper goes on, and running the wiring first saves rework. Bolt-on installation keeps the job simple, but check that every fastener is seated and that the bumper sits square to the body before the first trail run. Front suspension and steering components should be inspected after a winch or bumper change, since the added weight changes how the front end works.
- Plan light wiring before final bolt-up
- Confirm winch size against the mounting points
- Re-check bolts after the first few trail runs
Specifications
| Brand | Body Armor 4×4 |
|---|---|
| Part number | JK-19532 |
| UPC | 859909002789 |
| Product | Stubby front winch bumper with grill guard |
| Material | Steel plate, 3/16 in |
| Finish | Textured black powder coat |
| Width | Stubby, 54 inches wide |
| Body styles | 2 and 4-door models |
| Winch mount | Integrated, with fairlead mounts |
| Light mounts | Three hoop tabs plus two 4 in pockets |
| Shackles | Integrated |
| Grille guard | Included |

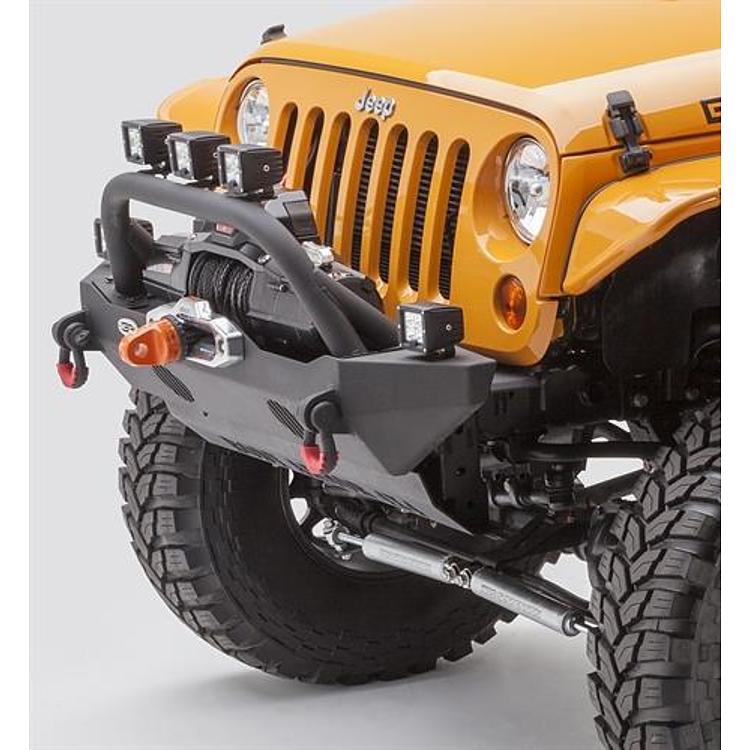

| Optional skid plate | JK-5123, shown fitted in photos |
Vehicle fitment
It is made for the 2007-2018 Jeep Wrangler JK in 2 and 4-door models.
It is designed for the 2007-2018 Jeep Wrangler JK. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Installation uses bolts only and no drilling is required. The optional JK-5123 skid plate is shown on the bumper but is a separate part.
What’s included
- Stubby front winch bumper
- Grille guard with braced hoop
- Integrated shackle mounts
- Laser cut steel screens for the light pockets
Not included: a winch, lights, and the optional JK-5123 skid plate.
