Overview
The N-FAB 49-Series Windshield Mount for LED Bar, part number J9749WSM, is a black windshield-hinge light bar mount for Jeep Wrangler JK (2007-2018) and TJ (1997-2006) models.
N-FAB describes its overhead light mounting products as bolt-on parts that use pre-existing factory hole locations in the windshield pillars. The mount is part of a modular system: the 50-inch LED light bar arrangement can be changed without replacing the whole mounting system, and one base bracket system can carry from one to three 50-inch LED light bars.
Key features
- Windshield hinge mounting type for overhead lights on the windshield pillars
- Bolt-on design that uses pre-existing factory hole locations in the windshield pillars
- Modular system: change the 50-inch LED light bar arrangement without replacing the entire mounting system
- One base bracket system can run from one to three 50-inch LED light bars
- It suits conventional halogen lights, LEDs or a combination of both.
- It has a black finish and is a direct fit for the listed Wrangler models.
Choosing a light bar setup
An overhead light bar adds the most value when it is aimed for the trail you actually drive. Mounts at the windshield hinge place the lights high and forward, which helps on wooded routes but also raises the center of weight on the upper body. Think about how many bars you want now and whether a second bar will be added later, so the wiring and brackets can be planned once.
Wiring is the other planning point. Run cables along the windshield frame away from moving parts, use a fuse and relay for each light, and place the switch where the driver can reach it without looking away from the trail. Clean and dry the mounting surfaces before fastening to prevent loose hardware.

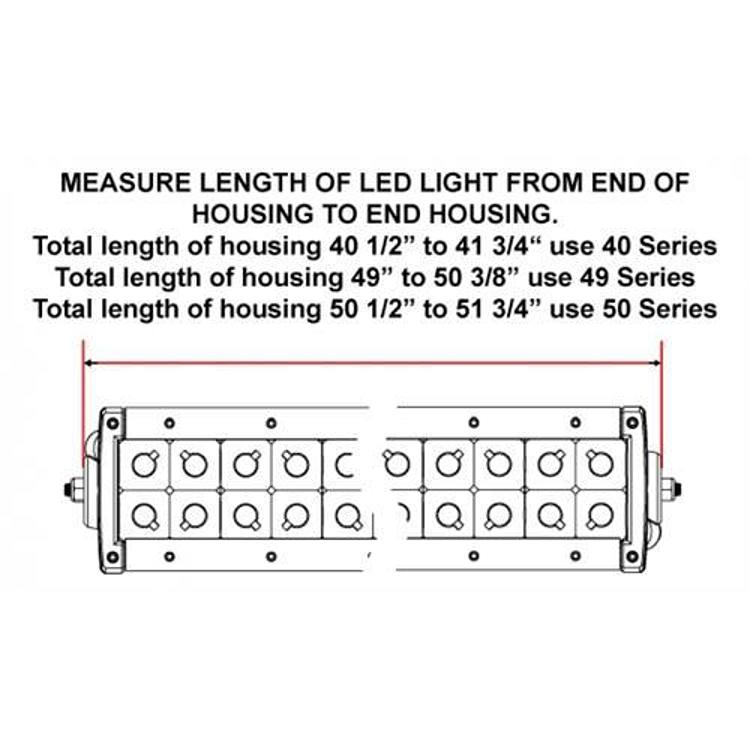

- Confirm the bar length suits the mount before buying lights
- Plan cable routing before fastening anything
- Keep wiper and hood travel clear of the bars
Specifications
| Brand | Nfab (N-FAB) |
|---|---|
| Part number | J9749WSM |
| UPC | 843206115297 |
| Product type | Windshield mount for LED bar (49-Series) |
| Color | Black |
| Mounting type | Windshield hinge |
| Fitment type | Direct fit |
| Light bar size | 50-inch LED light bars, one to three per base bracket system |
Vehicle fitment

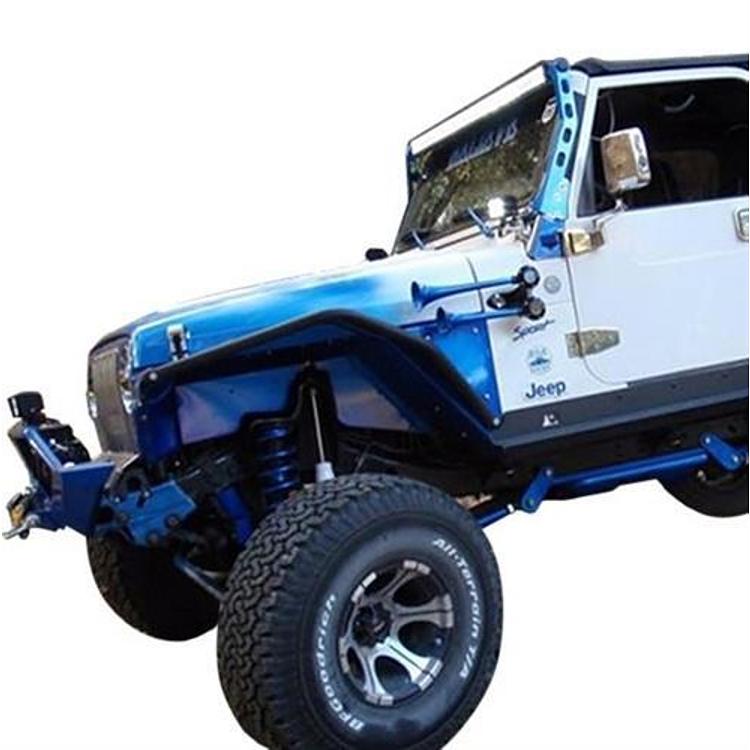

It fits the 2007-2018 Jeep Wrangler (JK) and the 1997-2006 Jeep Wrangler (TJ).
The Wrangler LJ, YJ, JL and Gladiator JT are not covered, so confirm your vehicle’s year, model and trim before considering this mount for those models.
Installation notes
Follow the installation steps for your vehicle and tighten all fasteners to the specified torque. Re-check fasteners after the first miles of driving and again after off-road use. Confirm that the mount and any lights clear the hood, windshield frame and doors before final tightening. Lights wired to the vehicle should be fused and relayed, and local regulations on auxiliary lighting should be followed.
What’s included
It is the base bracket of N-FAB’s modular windshield mount system. Check the package contents against your installation before starting.
Not included: LED light bars, halogen lights and wiring are not included and must be sourced separately.
