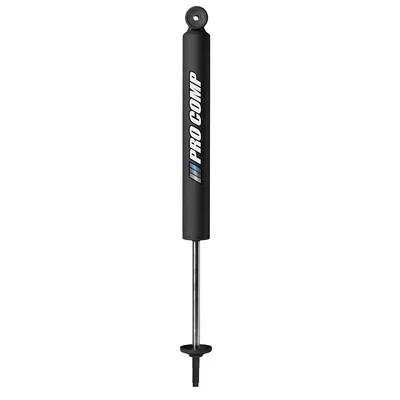

Pro Comp PRO-X Twin Tube Shock Absorber – 923510B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2007–2018 Jeep Wrangler JK, 2-door and Unlimited 4-door
  • 23.8-inch extended length, 14.3-inch collapsed length
  • Stem upper mount, loop lower mount
  • Twin tube design with 10-stage velocity sensitive valving
  • Universal location

Description

Overview

The Pro Comp 923510B is a PRO-X twin tube shock absorber for the 2007–2018 Jeep Wrangler JK, in both the 2-door and the Unlimited 4-door. It has a 23.8-inch extended length, a 14.3-inch collapsed length and a 9.5-inch travel length, and it is a universal location shock.

The PRO-X is a general-purpose twin tube design, meant for a Wrangler that is mostly driven on pavement with some off-road use. Pro Comp uses 10-stage velocity sensitive valving to adjust damping across road conditions, along with a 1-3/8-inch nylon banded piston and a 5/8-inch chrome hardened shaft.

This version has a stem upper mount and a loop lower mount. The 2.0-inch body is finished in black powder coat, and the gas charge is nitrogen stabilized. The optional shock boot is sold separately and is not included with the shock.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Stem upper mount
  • Black powder-coated finish

Wrangler JK ride and articulation

The JK’s solid axles flex a lot on uneven ground, and that movement drives the shock through a wide range of motion. A shock that is worn or undersized can run out of stroke at full droop, which lets the wheel lift and the tire lose contact. Check how the shock sits when the suspension is unloaded and again when it is hanging from one wheel.

Stem upper mounts on the JK take a fair amount of load and can wear the bushing faster on trails. Inspect the bushing and the lower loop after trail work, and keep the shock clean so grit does not damage the shaft seal.

  • Check stroke at full droop
  • Inspect the stem bushing after trail use
  • Keep the shaft clean of grit

Specifications

Brand Pro Comp Suspension
Part number 923510B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Location Universal
Extended length 23.8 in
Collapsed length 14.3 in
Travel length 9.5 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Stem
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler JK 2-door in the 70th and 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, and the Unlimited 4-door in the same trims.

The Wrangler JL generation from 2018 onward, and earlier TJ and LJ models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the stem upper mount and loop lower mount against the existing hardware on the JK before installation. The 23.8-inch extended and 14.3-inch collapsed lengths should be compared with your suspension height so the shock has room to move at full droop.

What’s included

A stem upper mount and a loop lower mount come on this twin tube shock. The optional boot is not part of the shock.

Not included: the optional shock boot.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 923510B fit a 2-door Wrangler JK?

Yes. It fits the 2-door Wrangler JK in the 70th and 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims for 2007–2018.

Does the 923510B fit a 2019 Wrangler JL?

No. It fits the Wrangler JK generation from 2007 to 2018, so 2019 and later JL models are not covered.

What is the collapsed length of the 923510B?

The collapsed length is 14.3 inches and the extended length is 23.8 inches. The travel is 9.5 inches, so check these against your suspension.

Can I add a lift and keep these shocks?

A lift changes how far the shock must extend and compress, so check the extended and collapsed lengths against the new ride height before installing. A lift may also call for other geometry changes, such as longer brake lines.
