Mag-Hytec Ford 10.25 Inch/10.5 Inch High Capacity Cover – 12-10.25/12-10

Mag-Hytec

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • For Ford 10.25-inch and 10.5-inch Sterling rear axles
  • Finned aircraft aluminum housing with black powder coat
  • Holds 2.5 extra quarts, 6 quarts in total
  • Dipstick with magnetic insert for routine checks

Description

Overview

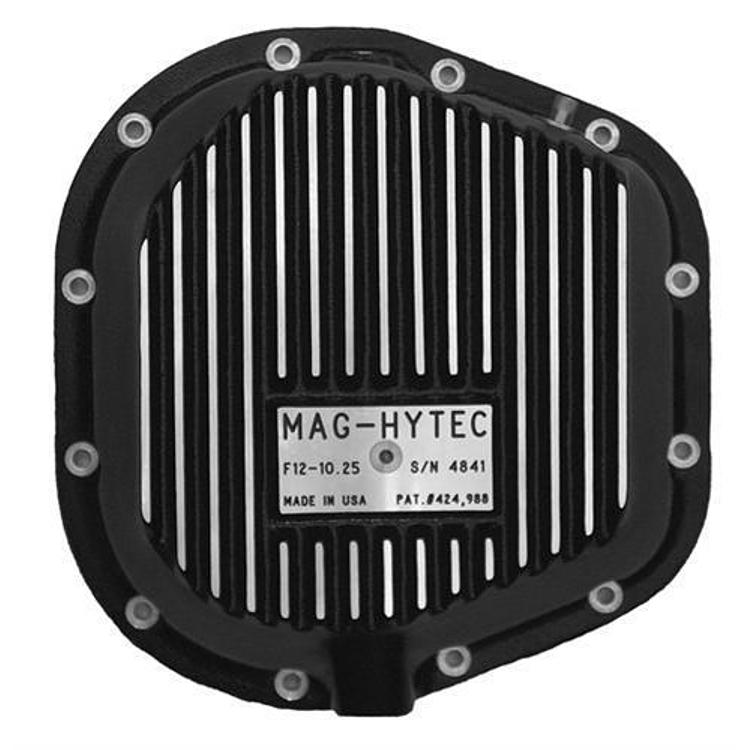

The Mag-Hytec Ford 10.25-inch and 10.5-inch high capacity differential cover (part number 12-10.25/12-10) is made for Ford 10.25-inch and 10.5-inch Sterling rear axles. It increases the oil capacity of the differential, holding 2.5 extra quarts for a total of 6 quarts.

The cover is cast from A356-T6 aluminum with machined cooling fins to help dissipate heat. Magnetic drain plugs catch worn gear material to protect the fluid, and routine maintenance can be done without removing the cover.

A high capacity cover adds oil volume to the differential, which gives the gears more fluid to cool and lubricate under load. Magnetic drain plugs and a magnetic dipstick trap metal from worn gears, so the fluid can be checked for debris at service.

Plan the fill around 6 quarts in total, which includes the 2.5 extra quarts this cover adds over a standard unit.

Key features

  • Finned aircraft aluminum housing for cooling
  • Black powder coat finish
  • Magnetic drain plugs trap worn gear material
  • Dipstick with magnetic insert
  • Routine maintenance without removing the cover

Differential fluid and service

A high capacity cover gives the differential more oil to cool and lubricate the gears under load. Extra fluid volume helps when towing, climbing or running hard in heat, but the level still needs checking because the axle does not gain capacity without a fill. Work with the fluid type your axle requires rather than mixing products.

Metal from worn gears collects on the magnetic drain plugs and the dipstick insert. Clean the magnets at each check, and note how much debris is there. A small amount of fine material is common, while chunks or heavy grit suggest the gears or bearings need inspection before the axle sees more use.

  • Check the fluid level at the dipstick after heavy off-road use
  • Clean the magnetic drain plugs and dipstick at each service
  • Watch for water or milky fluid after water crossings
  • Inspect for leaks at the O-rings and fill points

Specifications

Brand Mag-Hytec
Part number 12-10.25/12-10
Axle location Rear
Axle types Ford 10.25 inches and Ford 10.5 inches, Sterling rear axles
Material A356-T6 aluminum, with 303 stainless steel hardware
Oil capacity 2.5 extra quarts, 6 quarts total
Overall height 3 7/8 inches
Finish Black powder coat
Warranty Lifetime limited (Mag-Hytec)

Vehicle fitment

This cover is sized for Ford 10.25-inch and 10.5-inch Sterling rear axles. The cover is sized for that housing rather than a vehicle, so match the axle size before ordering.

Installation notes

In most applications, no gasket or sealant is needed. Each unit is fitted with ARP 568 O-rings for sealing, and the hardware is 303 stainless steel.

SKU: MAGF12-10.2510.5 Category:

Specification

Shipping weight 9.60 lbs
Package dimensions 13.20 × 13.00 × 5.00 in
brands

Questions & Answers

Which Ford axles is this cover made for?

It is made for Ford 10.25-inch and 10.5-inch Sterling rear axles. Check the axle size before ordering, since the cover is sized to fit that housing.

How much oil does the cover hold?

It holds 2.5 extra quarts, for a total of 6 quarts. The cover has a dipstick with a magnetic insert for routine checks.

Does it need a gasket?

In most applications, Mag-Hytec says no gasket or sealant is required. Each cover is fitted with ARP 568 O-rings, and the hardware is 303 stainless steel.

How often should differential fluid be checked?

Check it at regular service intervals and after heavy off-road use, water crossings or towing. Look at the magnetic drain plugs and dipstick for metal debris, which can point to gear wear. Use the fluid type your axle requires and keep the level at the dipstick mark.
