Mag-Hytec Dana 80 High Capacity Cover – DANA80

Mag-Hytec

$318.20In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear Dana 80 axle cover
  • A356-T6 aluminum with machined cooling fins
  • Extra oil capacity
  • Magnetic drain plug and 303 stainless steel hardware

Description

Overview

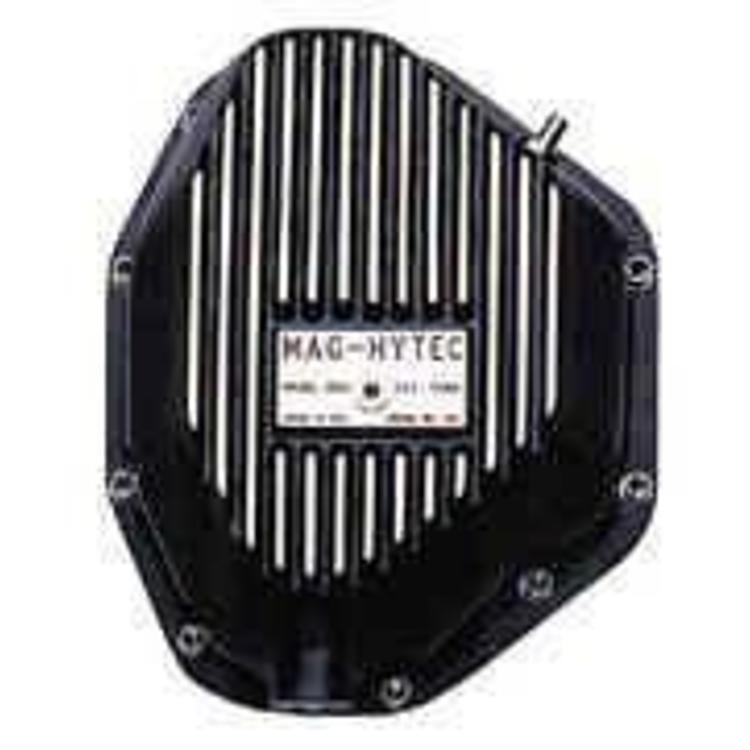

The Mag-Hytec Dana 80 High Capacity Cover (part DANA80) is a black A356-T6 aluminum rear differential cover for Dana 80 axles, with extra oil capacity.

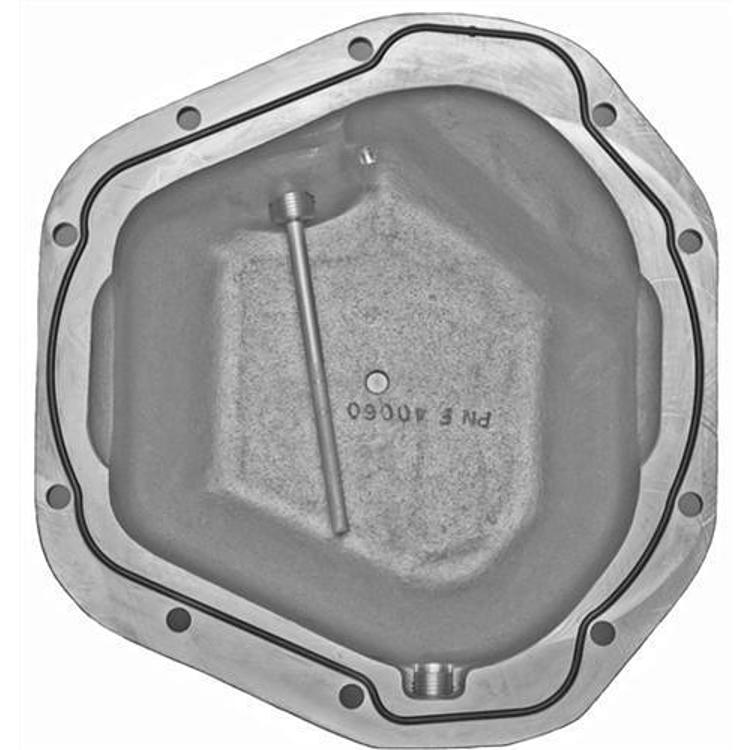

Mag-Hytec designs its covers and transmission pans to add lubricant capacity and cooling for hard-working recreational and service vehicles. This cover has machined cooling fins, a magnetic drain plug and ARP 568 O-rings, and its hardware is stainless steel.

Dana 80 axles are large housings, so a higher-capacity cover adds meaningful volume to the oil. The machined fins carry heat to the outside air, and the magnetic drain plug works the same way on this cover as it does on other Mag-Hytec covers.

Key features

  • Machined cooling fins on the aluminum body
  • Magnetic drain plug for worn gear material
  • ARP 568 O-rings
  • Textured black powder coat
  • Extra oil capacity

Heat and fill level

A rear differential cover does more than seal the housing. The cover is part of the lubricant system, and a larger cover holds more gear oil, which gives the gears a larger reserve and gives the oil more time to cool between hard runs. Heavy loads, steep grades and long highway pulls with a trailer all raise gear temperature, so cooler running oil helps the bearings and gears last longer.

When you install a higher-capacity cover, fill the housing to the correct level for your axle rather than to the old fill point, and use a gear oil grade suited to your axle and your driving.

Check the level after the first drive, then again after a few weeks of use. Oil that drops over time points to a seal or gasket problem, even though this cover uses O-rings. Look at the drain plug at each oil change. Fine metal particles are normal on a new build, but larger chips or heavy grit suggest the gears need a closer look.

  • Check the fill level after the first few drives
  • Inspect the magnetic drain plug at every oil change
  • Look for seepage around the cover edge

Specifications

Brand Mag-Hytec
Part number DANA80
UPC 70000402527
Material A356-T6 aluminum
Finish Textured black powder coat
Axle location Rear
Axle type Dana 80
Oil capacity Extra
Drain plug Magnetic
Seals ARP 568 O-rings
Hardware 303 stainless steel

Vehicle fitment

It fits Dana 80 rear axles, so the axle type decides fit. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Mag-Hytec describes most installs as gasket-free and sealant-free, relying on the O-rings instead.

What’s included

A black aluminum cover with magnetic drain plug, O-rings and stainless steel hardware.

Not included: Gear oil.

SKU: MAGDANA80 Category:

Specification

Shipping weight 8.70 lbs
Package dimensions 14.50 × 12.50 × 4.80 in
brands

Questions & Answers

Is this a rear or front Dana 80 cover?

Rear. It is made for Dana 80 rear axles and is not a front cover. Confirm your axle type before ordering, because the axle type decides fit for this cover.

Does it need a gasket?

Mag-Hytec says in most applications no gasket or sealant is needed, since the O-rings provide the seal. Clean the sealing faces before you assemble the cover.

Is there a warranty?

Yes. Mag-Hytec parts carry a lifetime limited warranty. Read the warranty terms that come with your order for the full coverage details before installing.

What finish does it have?

A textured black powder coat over A356-T6 aluminum, with machined cooling fins that help the oil shed heat. The aluminum is cast for heavy-duty use.

How do I know if my Dana 80 cover needs replacing?

Look for leaks at the cover edge, a cover that is bent or cracked, or metal debris on the magnetic drain plug. Any of these signs calls for inspection of the gear set and a fresh fill of gear oil.
