Overview

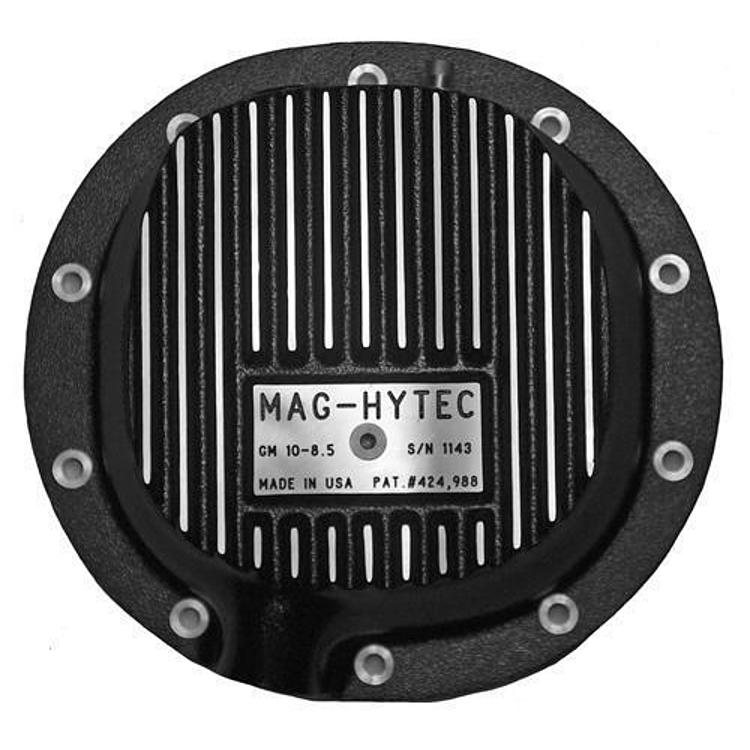

The Mag-Hytec GM 8.5-inch 10 bolt high capacity cover (part number GM10-8.5) is a rear cover for GM 8.5-inch and 8.6-inch rear axles only. It holds 2 extra quarts of oil and stands 3 1/4 inches tall overall.
The cover is cast in A356-T6 aluminum with machined cooling fins and a black powder coat. The design allows routine maintenance without removing the cover, and the magnetic drain plugs trap worn gear material.
High capacity covers suit axles that run heavier loads, because the added oil volume gives the gears more fluid to cool and lubricate. Mag-Hytec describes its covers for hard working recreational and service vehicles.
It fits GM 8.5-inch and 8.6-inch rear axles. Its overall height is 3 1/4 inches.
Fins machined into the aluminum increase the cooling surface. Check the 3 1/4-inch overall height against the clearance around the axle before fitting.
Mag-Hytec says all hardware is 303 stainless steel and that its parts carry a lifetime limited warranty.
Key features
- Finned aluminum housing for cooling
- Magnetic drain plugs trap worn gear material
- Dipstick with magnetic insert
- Routine maintenance without removing the cover
Gear oil and heat
Gear oil carries heat away from the ring and pinion, so the amount of oil and the surface area of the cover both matter. A cover with machined fins adds surface area for cooling, and a larger oil capacity gives the gears more fluid to work with. Oil level should be checked during routine service, and the fill should be brought to the correct level.
Magnetic drain plugs collect metal particles, which helps show how the gears are wearing. Replacing the oil at a regular interval keeps the lubricant doing its job, and changing it sooner after deep water crossings or heavy towing is a sensible step. Keep the cover area clean so the fins can shed heat.
- Check the oil level at routine service
- Inspect the magnetic plugs for metal particles
- Keep the fins free of mud and debris
Specifications
| Brand | Mag-Hytec |
|---|---|
| Part number | GM10-8.5 |
| Axle location | Rear |
| Axle types | GM 10 bolt 8.5 inches and GM 10 bolt 8.6 inches |
| Material | A356-T6 aluminum, with 303 stainless steel hardware |
| Oil capacity | 2 extra quarts |
| Overall height | 3 1/4 inches |
| Finish | Black powder coat |
| Warranty | Lifetime limited (Mag-Hytec) |
Vehicle fitment
This cover is sized for GM 8.5-inch and 8.6-inch rear axles. The cover is matched to the axle width, not to a vehicle, so check it before ordering.
Installation notes
Mag-Hytec says most installations need no gasket or sealant. The cover is fitted with ARP 568 O-rings.
