Overview

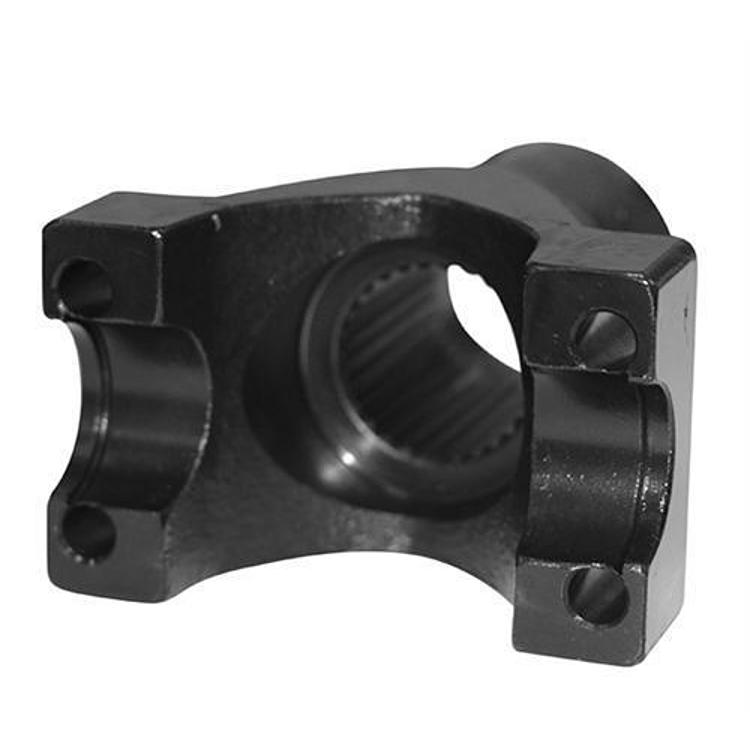

The G2 Axle and Gear 90-2011-35U is a 1350 series pinion yoke for the rear Ford 9 Inch axle. It uses U-bolt style mounting and is made from precision forged steel for strength.
The yoke is universal fit for the 9 Inch axle, so no specific vehicle year, model or trim is identified. U-bolt mounting is a popular choice with racers and off-roaders.
Key features
- Precision forged steel construction
- Designed for a 1350 series U-joint
- U-bolt style mounting
- Made for use with the D/S3-94-18X U-bolt kit
U-bolt mounting basics
U-bolt style yokes clamp to the pinion shaft using U-bolts that pass around the pinion flange area and draw it against the yoke. The clamping force depends on the U-bolts, nuts and their torque, so a loose or stretched U-bolt can allow the yoke to slip under load. Because of this, the fasteners should be checked after the first few runs and periodically after that.
This yoke is forged for strength, but the driveline is only as secure as its hardware. Choose U-bolts that match the yoke and kit sizing, use the correct nuts, and confirm the clearance between the U-bolts and nearby parts such as the axle housing. When the yoke is replaced, inspect the pinion shaft threads and splines, since worn threads can affect how the nut holds torque. A driveline shop can check driveline angle and balance after a change.
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Model number | 90-2011-35U |
| UPC | 631410122930 |
| Axle | Rear Ford 9 Inch |
| U-joint series | 1350 |
| Mounting | U-bolt style |
| Material | Precision forged steel |
| Hardware | Not included |
| Fitment | Universal fit |
Vehicle fitment
The yoke is universal fit for the rear Ford 9 Inch axle, so it is not tied to one vehicle. Confirm the axle housing and U-joint series match before installing.
Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
U-bolt mounting needs a separate kit, so have the D/S3-94-18X U-bolts ready before the yoke is fitted. Check the driveline angle once the assembly is complete.
What’s included
Only the pinion yoke is described. U-bolts and the D/S3-94-18X kit are not included.
