Overview

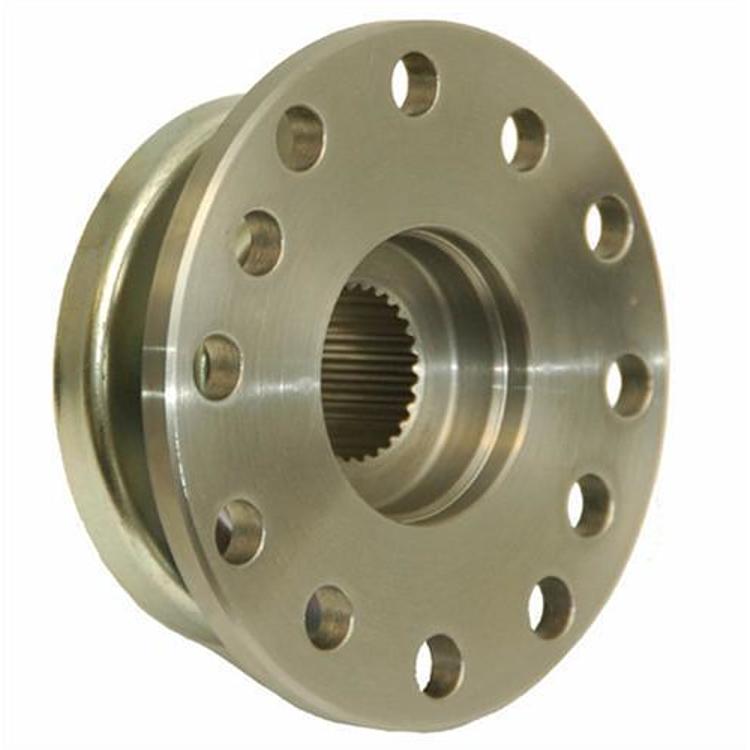

The G2 Axle and Gear Toyota Tacoma pinion flange yoke, part number 90-2056, is a rear pinion yoke that mounts with flange bolts instead of U-bolts or straps.
The axle type is Toyota Tacoma, and no model years are given for this yoke. Several flange bolt patterns are offered, so match the flange you have to the right one.
Key features
- Flange bolt mounting instead of U-bolts or straps
- CNC machined yoke, per G2
- Several bolt patterns offered to match early and late model flanges
- Rear axle location
Flange yoke fitment checks
A flange yoke bolts directly to the pinion flange, so the bolt pattern and face condition decide whether it fits. Flange designs differ across generations and build years, which is why a flange should be measured or matched by part number before buying. Clean the flange face before setting the yoke down.
Flange bolts need to be torqued evenly to keep the yoke square to the pinion. Replace any bolt that is stretched, and check the flange for cracks or grooves while the yoke is off. Pinion bearing preload should be set once the yoke is back on, by a driveline shop with the right gauge.
- Confirm the bolt pattern against the flange
- Clean the flange face before fitting
- Replace stretched or damaged flange bolts
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 90-2056 |
| UPC | 631410096620 |
| Yoke style | Pinion flange yoke |
| U-joint series | Flange |
| Mounting | Flange bolt |
| Manufacturing | CNC machined |
| Axle location | Rear |
| Axle type | Toyota Tacoma |
| Listed fitment category | Universal Fit |
Vehicle fitment
This yoke is not matched to a specific Tacoma generation here. The axle type is Toyota Tacoma.
Check the flange bolt pattern against your pinion before fitting. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A flange yoke bolts to the pinion flange rather than clamping with straps or U-bolts, so the bolt pattern must match the flange you have. Check it before removal, and have the pinion bearing preload set when the yoke is refitted.
What’s included
Flange bolts, pinion nut and seal are not part of the yoke itself. Check the package contents against your installation before starting.
