Overview

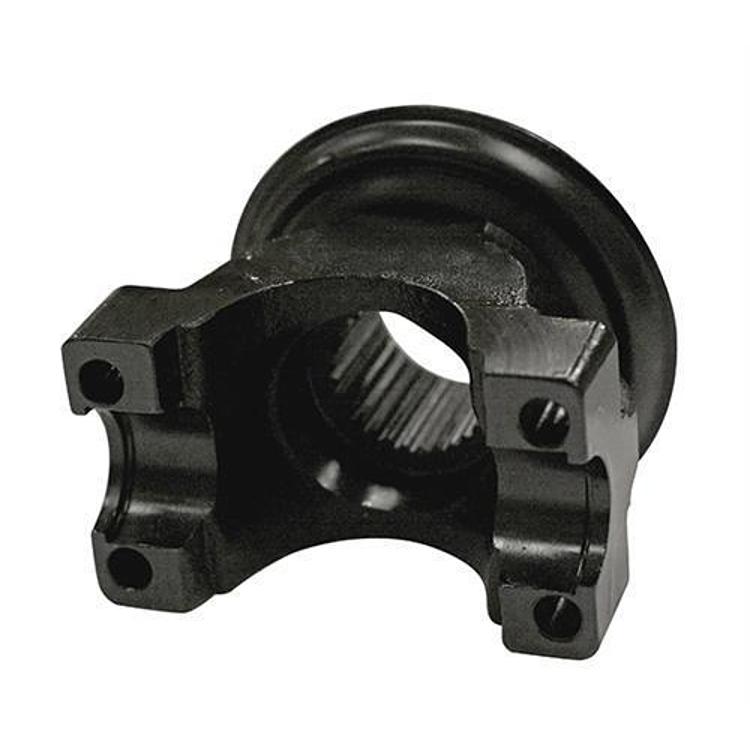

The G2 Axle and Gear 90-2034-35U is a 1350 series pinion yoke for rear Dana 60, Dana 61 and Dana 70 axles. It has a U-bolt style mount and is made from precision forged steel.
The yoke is universal fit across those axle types, so no specific vehicle year, model or trim is identified. Several yoke styles are made for different applications, and this one uses U-bolt mounting.
Key features
- Forged steel construction
- Designed for 1350 series U-joints
- U-bolt style mounting
- Made for the D/S3-94-18X U-bolt kit
Dana 60 and 70 driveline notes
Dana 60 and Dana 70 axles are heavy-duty housings, and their pinion yokes carry significant torque from the driveshaft. Because the axle types differ in pinion size and housing design, the yoke should be matched to the specific axle and not chosen by housing name alone. A yoke with the correct spline and bore keeps the pinion shaft and U-joint working together without slop.
U-bolt style mounting places clamping force on the pinion shaft, so the U-bolts, nuts and yoke bore should be inspected for wear whenever the yoke is replaced. Clean the mating surfaces before assembly, and confirm the yoke clears the axle housing and brake components at full suspension travel. Forged steel is a common choice for these loads, but worn U-joints and loose clamps still cause vibration and damage.
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Model number | 90-2034-35U |
| UPC | 631410122886 |
| Axle types | Rear Dana 60, Dana 61, Dana 70 |
| U-joint series | 1350 |
| Mounting | U-bolt style |
| Material | Precision forged steel |
| Hardware | Not included |
| Fitment | Universal fit |
Vehicle fitment
The yoke is universal fit for rear Dana 60, Dana 61 and Dana 70 axles. Confirm your axle housing is one of these types before installing.
No vehicle years, models or trims are named. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Hardware is not included, so have a U-bolt kit such as the D/S3-94-18X ready. Check driveline angle and yoke clearance once the assembly is complete.
What’s included
The yoke only. U-bolts and the D/S3-94-18X kit are not included.
