Alloy USA Dana 30 Pinion Yoke Conversion Kit – 380001

Alloy USA

Shop Alloy USA Differential Pinion Yokes on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

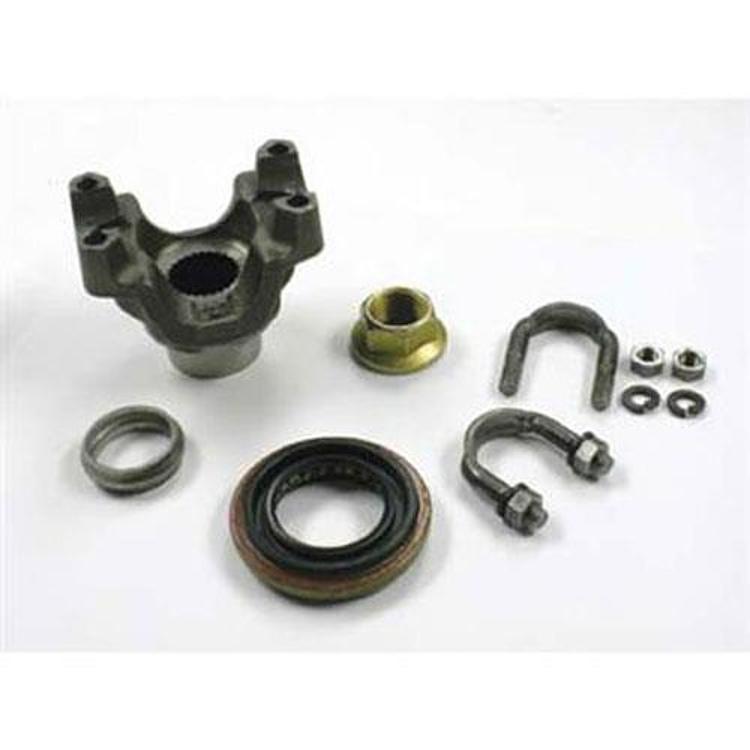

  • Alloy USA 380001 Dana 30 pinion yoke conversion kit
  • Replaces a strap style yoke with a yoke made to accept U-bolts
  • Fits Dana 30 pinion axles; confirm your vehicle’s year, model and trim before ordering.

Description

Overview

The Alloy USA 380001 is a Dana 30 pinion yoke conversion kit that replaces a strap style yoke with a yoke made to accept U-bolts. The kit is aimed at owners who want a U-bolt attachment in place of the strap design.

No vehicles, model years or chassis codes are named for this kit, and it is labeled direct fit. Check your Dana 30 pinion and vehicle details before starting.

Key features

  • Converts a strap style Dana 30 yoke to U-bolt attachment
  • Yoke made to accept U-bolts instead of straps
  • Marked as a direct fit
  • Alloy USA part number 380001

Strap versus U-bolt attachment

A pinion yoke connects the driveshaft to the Dana 30 pinion, and the way it is held in place affects how the joint is loaded. Strap style yokes use a strap and bolts, while U-bolt designs clamp the yoke with two U-bolts and a cap. The choice changes what hardware is needed and how the clamp is inspected.

Before swapping, inspect the pinion nut threads, the pinion spacer if fitted, and the bearing preload. Changing to a U-bolt yoke usually means a new seal, so check the old seal’s lip and the yoke surface. Once installed, recheck the clamp fasteners after the first few drives and inspect them at regular service intervals.

  • Pinion nut thread condition
  • Bearing preload after reassembly
  • Clamp fastener tightness

Specifications

Brand Alloy USA
Part number 380001
UPC 804314218041
Axle application Dana 30
Conversion Strap style yoke to U-bolt

Vehicle fitment

No vehicles are named, and the kit is marked direct fit for the Dana 30 pinion. An axle name alone does not confirm which vehicle it suits.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Changing a pinion yoke means removing the driveshaft and pinion nut, so the job suits a shop comfortable with Dana 30 pinion setup and preload.

What’s included

Check the box contents against your existing yoke, nut and seal before starting the swap.

SKU: ALY380001 Category:

Specification

Shipping weight 9.00 lbs
Package dimensions 8.00 × 8.00 × 8.00 in
brands

Questions & Answers

What is the Alloy USA 380001?

The Alloy USA 380001 is a Dana 30 pinion yoke conversion kit. It replaces a strap style yoke with a yoke made to accept U-bolts. The part number is 380001 and the UPC is 804314218041.

Does the 380001 fit my vehicle?

It is a direct fit for the Dana 30 pinion. Confirm your vehicle's year, model and trim before ordering, since the axle name alone does not identify the vehicle.

Why swap straps for U-bolts?

Alloy USA describes strap style yokes as failure prone. The kit offers a yoke made to take U-bolts, which the maker presents as a replacement for that strap design.

Is a pinion yoke swap a good first driveline job?

It is best left to someone comfortable with pinion preload. The job involves driveshaft removal, nut tightening and angle checks, so mistakes can cause bearing damage. Plan the work carefully before starting.
