Eaton GM 8.2 Inch Drop Out 17 Spline 3.90 Up Limited Slip – 19686-010

Eaton

Shop Eaton Differential Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eaton 19686-010 limited slip differential for GM 8.2 inch axles
  • 17 splines with a 3.90 up ratio designation
  • Posi preload springs and carbon fiber clutches, rebuildable

Description

Overview

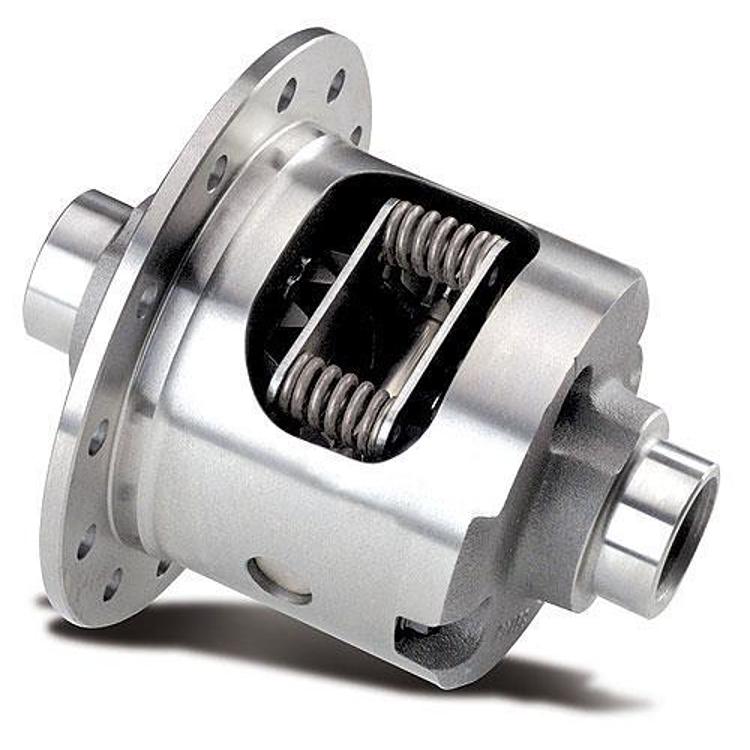

The Eaton 19686-010 is a limited slip differential for GM 8.2 inch axles with 17 splines. It is a drop out design with a 3.90 up ratio designation.

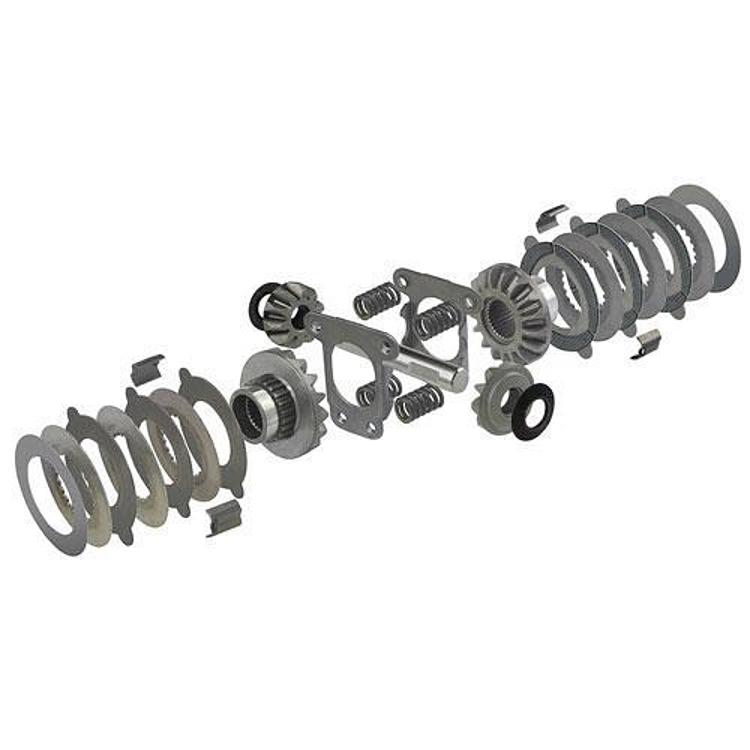

Its Posi design uses preload springs and carbon fiber clutches, and it suits street use. The clutches and springs can be serviced.

Key features

  • Posi limited slip design with preload springs
  • Carbon fiber clutches
  • Rebuildable, so clutches and springs can be serviced
  • 17 spline GM 8.2 inch axle fitment

Ratio and tire matching

Gear ratio decides how the engine and tires work together, and a limited slip must match the ring and pinion set in that ratio. Changing to larger tires or a different gear set alters how the carrier turns, which can affect acceleration, highway speed and fuel use. When a new ratio is planned, confirm the ring and pinion, pinion bearings and carrier shims are sized for it.

Limited slip units suit drivers who want traction on both wheels during daily use, though they do not drive both wheels together like a locker. On mixed terrain, a limited slip can help the truck keep moving when one side loses grip, while still turning normally on pavement. Clutch wear is the main concern over time, so inspect it during regular service.

  • Match gear ratio to tire size
  • Check ring and pinion contact before fitting
  • Inspect clutches during regular service
  • Keep carrier shims with the matching gears

Specifications

Brand Eaton
Part number 19686-010
UPC 70000324978
Axle manufacturer GM
Axle type GM 8.2 inch
Design Drop out
Axle spline 17 splines
Ratio designation 3.90 up
Differential type Limited slip assembly
Clutch material Carbon fiber
Rebuildable Yes

Vehicle fitment

Fit is set by the GM 8.2 inch axle, 17 spline count and 3.90 up ratio. Make sure the year, model and trim suit your truck before buying, and measure the spline count, since a different count will not fit the shafts.

Confirm your vehicle’s year, model and trim before ordering. Measure the spline count, since a different count will not fit the shafts.

Installation notes

A limited slip unit needs the ring and pinion set for correct backlash and preload, so a gear-experienced shop should handle the install. Rebuilding the clutch pack later is a separate job.

What’s included

This entry is the limited slip differential, part number 19686-010.

Not included: Ring gear, pinion and axle shafts are outside this unit, so plan for them separately.

SKU: EAT19686-010 Category:

Specification

Shipping weight 21.00 lbs
Package dimensions 11.00 × 11.00 × 10.00 in
brands

Questions & Answers

What is the Eaton 19686-010?

It is a Posi limited slip differential for GM 8.2 inch axles with 17 splines. It is a drop out design with a 3.90 up ratio designation, and it uses preload springs and carbon fiber clutches.

Can the 19686-010 be rebuilt?

Yes, the clutches and springs can be serviced. A gear shop familiar with limited slip units is the right place for that work.

Which vehicles use this GM 8.2 axle?

Verify the year, model and trim against your vehicle before buying. Check your axle's size and 17 spline count, and confirm the 3.90 up ratio before buying.

Does a limited slip need a special fluid?

Yes, use a lubricant made for limited slip use. Standard gear oil may not provide the friction the clutches need, which can lead to chatter or uneven engagement. Follow the fill level and change interval for your carrier.
