Eaton Dana 60 30 Spline 4.10 Down E-Locker – 14020-010

Eaton

Shop Eaton Differential Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eaton Dana 60 selectable locker, 30 spline, 4.10 down ratio
  • Electronic push-button operation on 12 Volt power
  • Front and rear axle location, part number 14020-010
  • No vehicle named; check axle specs before ordering

Description

Overview

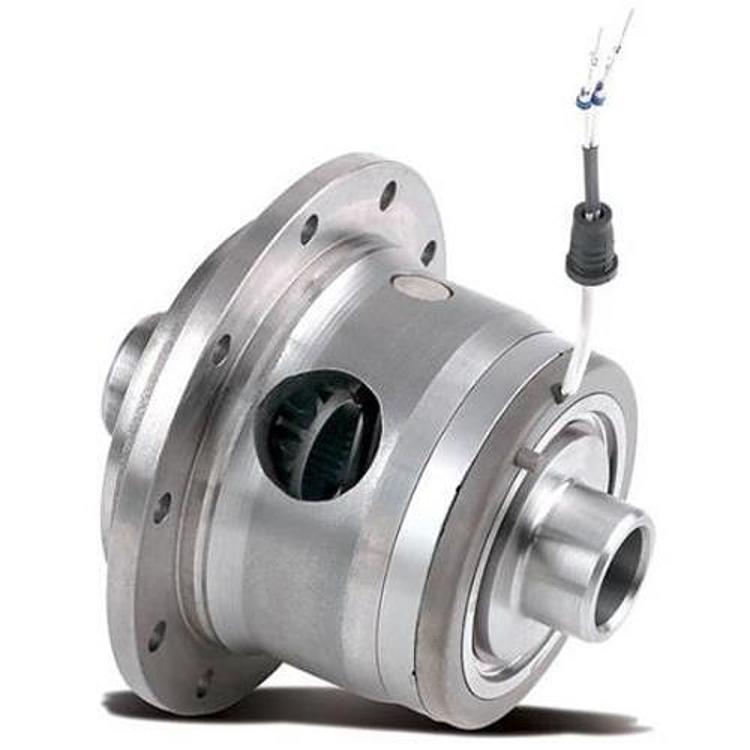

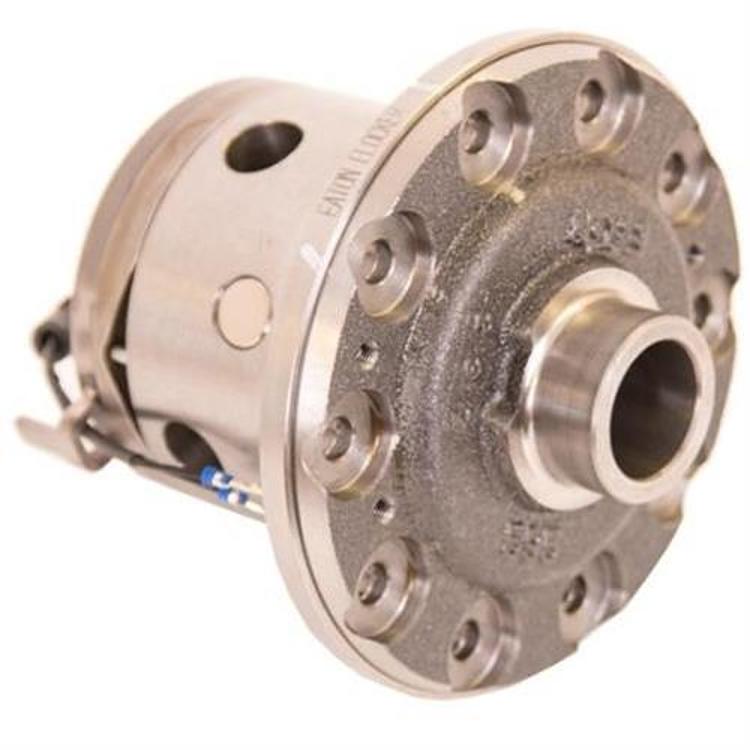

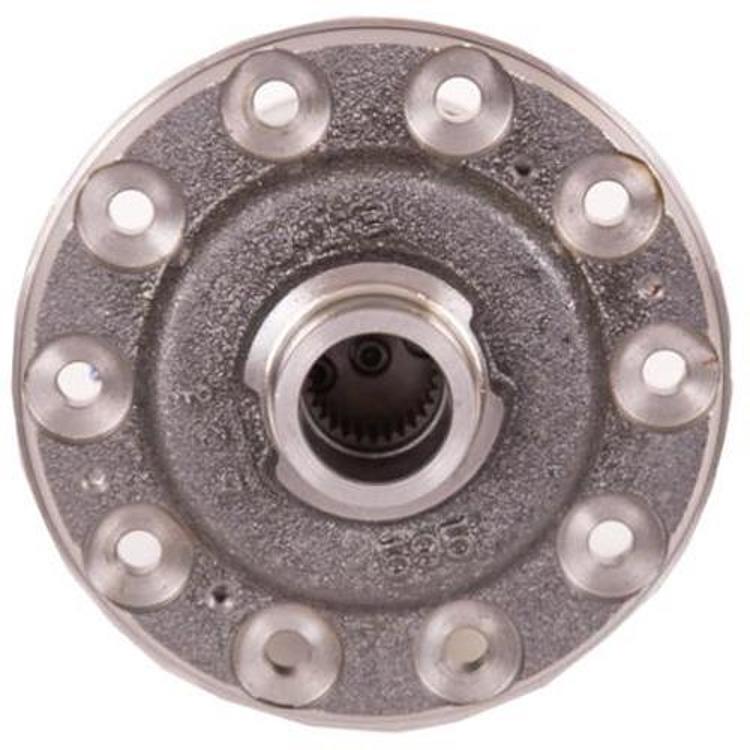

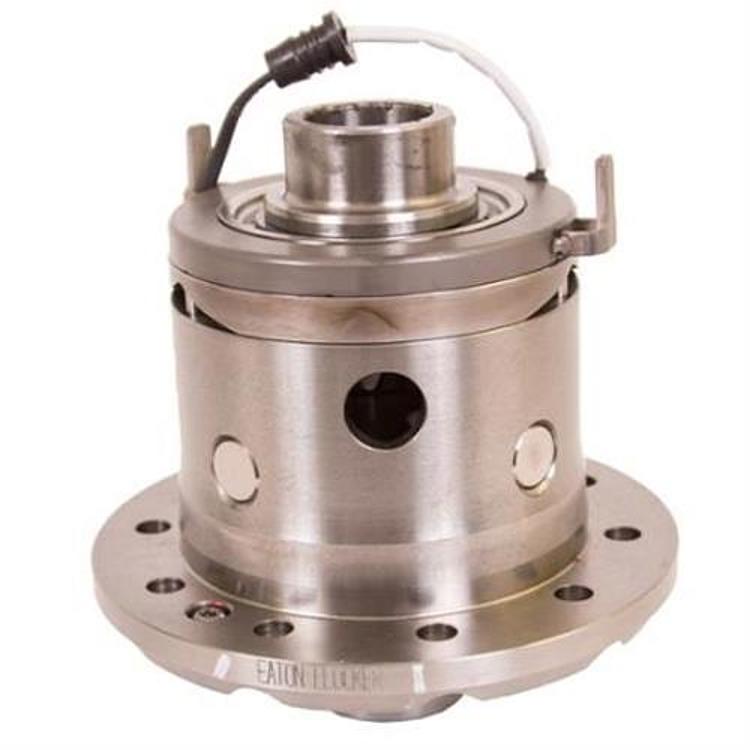

The Eaton Dana 60 30 spline 4.10 down E-Locker, part number 14020-010, is an electronic push-button selectable locker for Dana 60 axles. It fits front and rear axle locations, and no specific vehicle is named.

The locker moves from open to spool with the push of a button. Because it runs on 12 Volt power, it has no air lines that can leak and no cables that can get hung up.

Key features

  • Electronic push-button operation from open to spool
  • No air lines to leak and no cables to snag
  • Runs on 12 Volt power
  • Dana 60 axle with 30 splines and a 4.10 down ratio

Wiring and control considerations

Electronic lockers take their control signal from a switch and a 12 Volt supply, so the wiring is part of the installation. A fused feed protects the circuit if a wire chafes, and the ground connection should be clean and tight. Route the harness away from the driveshaft, exhaust and suspension travel so it cannot be pinched or heated. Many owners secure the wire with clips and leave a small service loop at the axle.

Once the locker is wired, test the engagement with the vehicle raised and safely supported. Cycle it several times to confirm the indicator and the axle respond consistently. Pay attention to any grinding, clicking that does not stop, or a delay in engagement, since those can point to a wiring or actuator issue that should be checked before normal driving.

  • Use a fuse sized for the circuit
  • Keep the switch in an easy-to-reach spot
  • Recheck connectors after the first few drives

Specifications

Brand Eaton
Part number 14020-010
UPC 700007803031
Axle manufacturer Dana
Axle type Dana 60
Axle location Front and rear
Axle spline 30 splines
Differential type Selectable locker
Power 12 Volt
Ratio 4.10 down

Vehicle fitment

No vehicle, year or chassis code is named. The locker is sized for a Dana 60 axle with 30 splines, so it is axle-specific rather than universal, even though it is tagged universal fit.

Match the spline count, ratio and housing to your axle before ordering.

Dana 60 axles with other spline counts or ratios will not match. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The locker mounts inside the axle, so the carrier must be removed. Professional setup is recommended once it is installed, including gear set checks.

Power the locker from a fused 12 Volt supply and keep the wiring clear of moving driveline parts.

What’s included

Compare the switch, harness and carrier hardware you receive with what your installation needs before starting.

SKU: EAT14020-010 Category:

Specification

Shipping weight 41.50 lbs
Package dimensions 10.40 × 9.80 × 9.80 in
brands

Questions & Answers

Does the Eaton 14020-010 E-Locker fit a Jeep Wrangler?

Confirm fit for your vehicle's year, model and trim before ordering. This locker is a Dana 60 axle unit with 30 splines and a 4.10 down ratio, so check those figures against your axle first.

Does this locker need air lines or a compressor?

No. It runs on electronic push-button control with 12 Volt power, so no air lines or cables are needed. Confirm that your wiring can provide a fused 12 Volt feed before installation.

What spline count and ratio is the Eaton 14020-010?

It is a 30 spline Dana 60 axle locker with a 4.10 down ratio. The part number is 14020-010, the UPC is 700007803031, and the brand is Eaton.

How should an electronic locker be tested after installation?

Test it with the vehicle raised and safely supported first. Engage and release the locker several times, then check for consistent operation before driving. Listen for unusual noises and recheck wiring connections after the first few drives.
