Overview

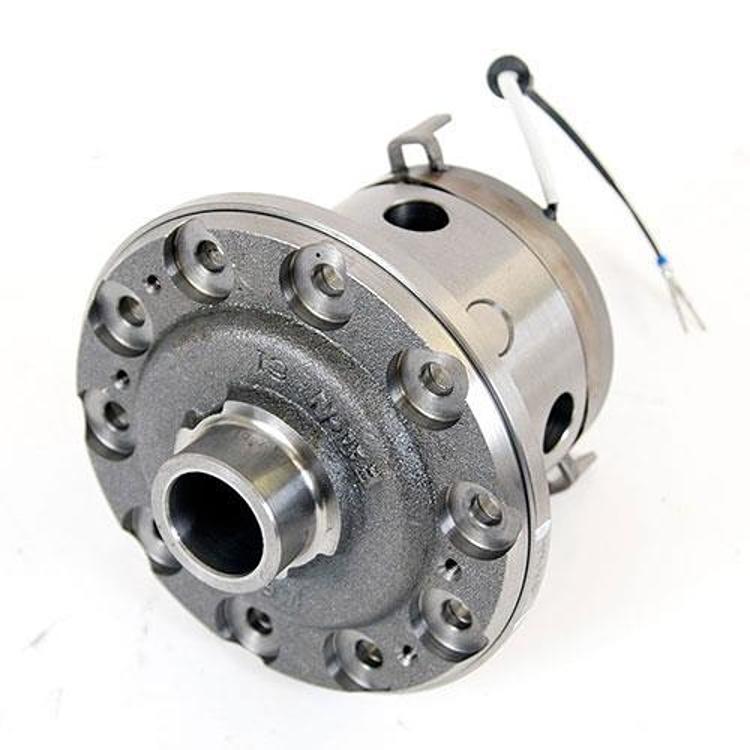

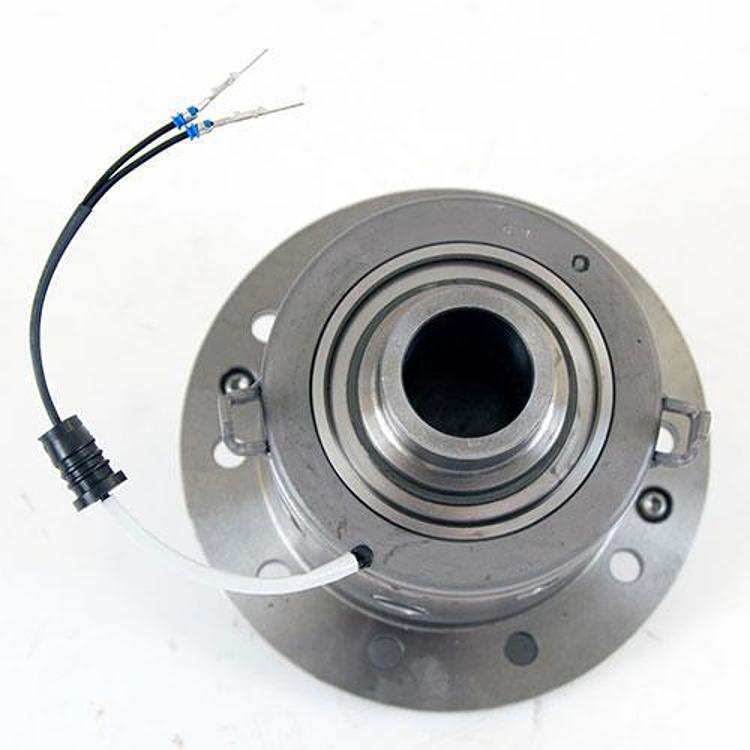

The Eaton 19819-010 is a 30 spline E-Locker for front Dana 30 axles with a 3.73 up ratio designation. It fits Dana 30 TJ, Dana 30 JK, Dana 30 Standard and Dana 30 Reverse axle types.
A push button switch selects locked or open operation, and the unit is powered by 12 volts. Eaton’s design avoids air lines and cables, so the work is mainly the carrier and the electrical feed.
Key features
- Push button selection between open and locked
- 12 volt power only
- 30 spline front axle fitment
- Dana 30 TJ, JK, Standard and Reverse axle types listed
Switch and carrier checks
A front Dana 30 locker is a carrier job, so the work is best done with the housing open and the gears accessible. Check the ring and pinion, pinion bearings and carrier shims while the cover is off, since they are often replaced in the same job. Clean the housing and install a new gasket to reduce the chance of leaks after the install.
Once the locker is in, test engagement on a safe surface before heavy use. Listen for a clean engagement and disengagement, and confirm the indicator, if the setup has one, responds to the switch. Ongoing care is simple: keep the carrier fluid at the correct level and inspect the wiring after trail runs.
- Replace worn gears as a set
- Clean the housing before reassembly
- Test engagement on a safe surface
- Check fluid level after the first trail runs
Specifications
| Brand | Eaton |
|---|---|
| Part number | 19819-010 |
| UPC | 1981901000 |
| Axle manufacturer | Dana |
| Axle location | Front |
| Axle types | Dana 30 TJ, Dana 30 JK, Dana 30 Standard, Dana 30 Reverse |
| Axle spline | 30 splines |
| Ratio designation | 3.73 up |
| Locker type | E-Locker, push button selectable |
| Power | 12 volt |
Vehicle fitment
Match the Dana 30 axle type, 30 spline count and front position to your housing, since those axle designations do not identify a particular vehicle.
Confirm your vehicle’s year, model and trim before ordering. A different spline count will not work with this unit.
Installation notes
Front carrier replacement involves setting ring and pinion, which should be done by a shop with that background. Route the switch wiring before the cover goes back on.
What’s included
Covered here: the E-Locker unit, part number 19819-010.

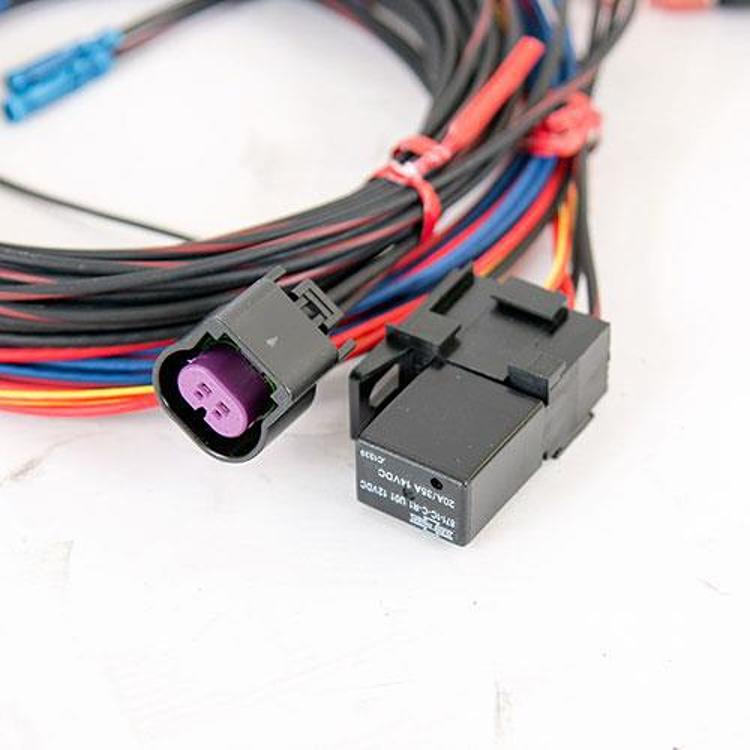

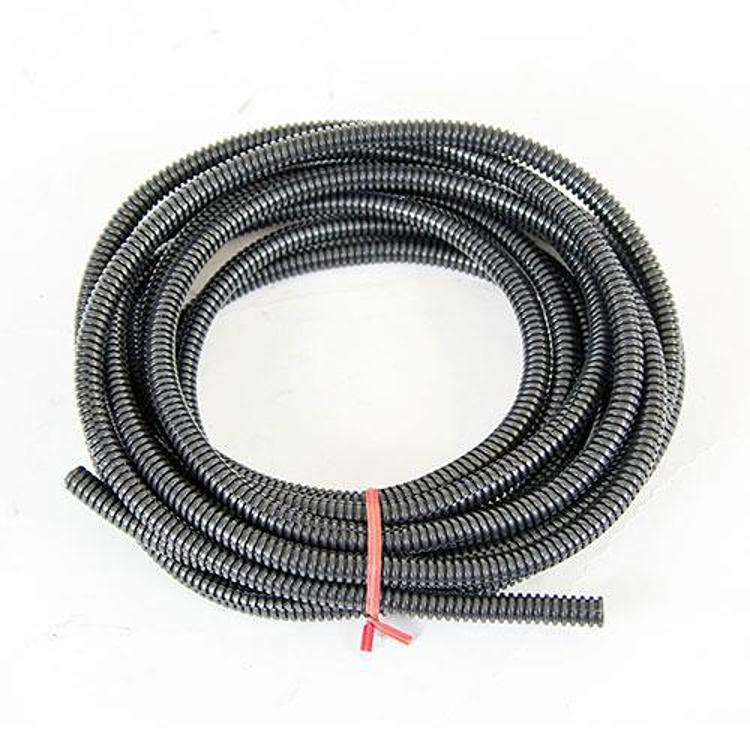

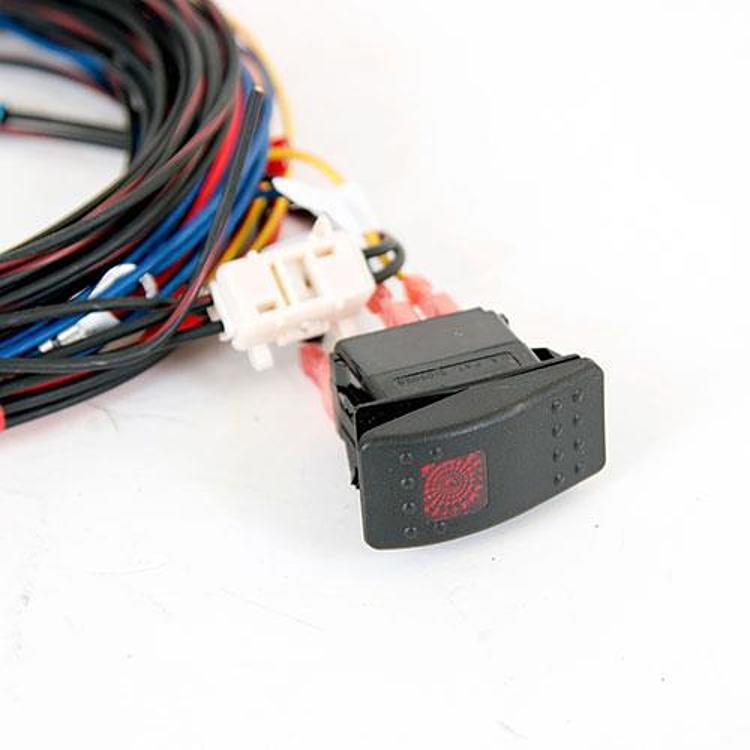

Not included: The switch, wiring and gear set are separate items for this unit.
