Eaton Dana 60 35 Spline 4.56 Up E-Locker – 14023-010

Eaton

Shop Eaton Differential Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eaton Dana 60 selectable locker, 35 spline, 4.56 up ratio
  • Electronic push-button selection on 12 Volt power
  • Front and rear axle location, part number 14023-010
  • No vehicle named; confirm axle spline and ratio before ordering

Description

Overview

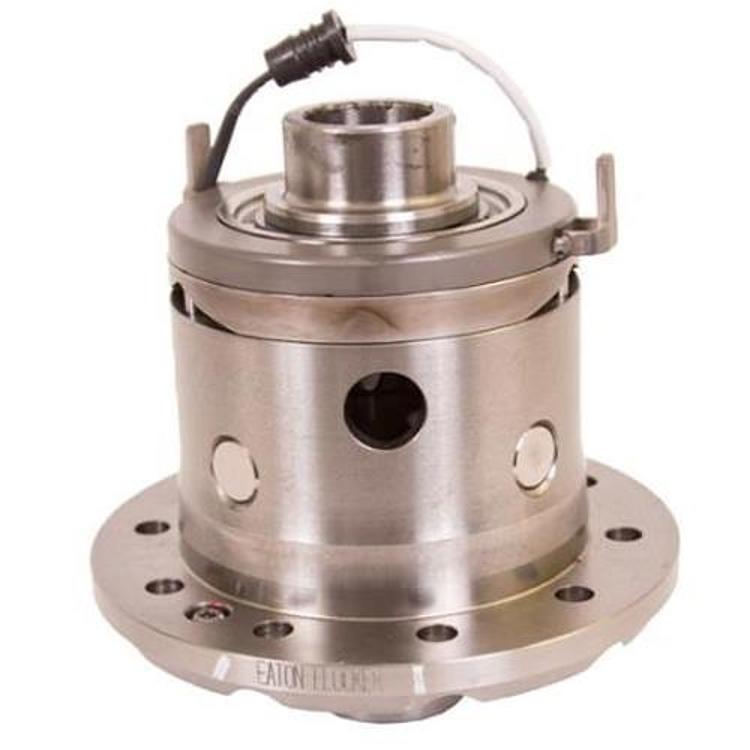

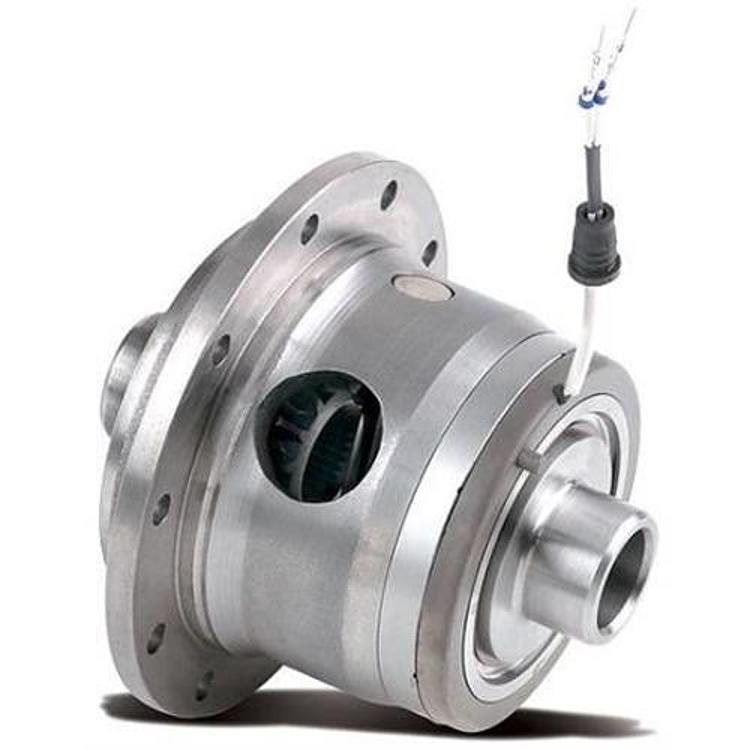

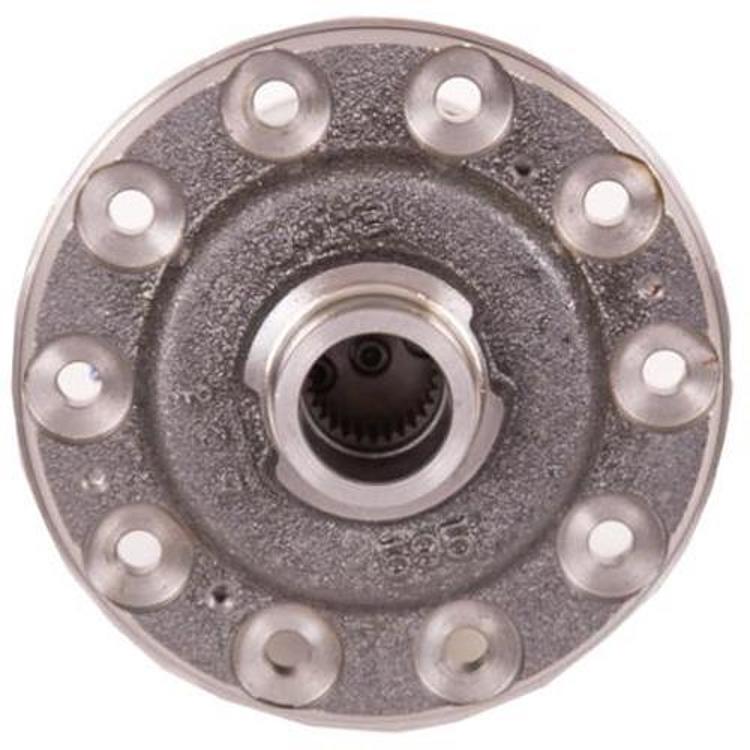

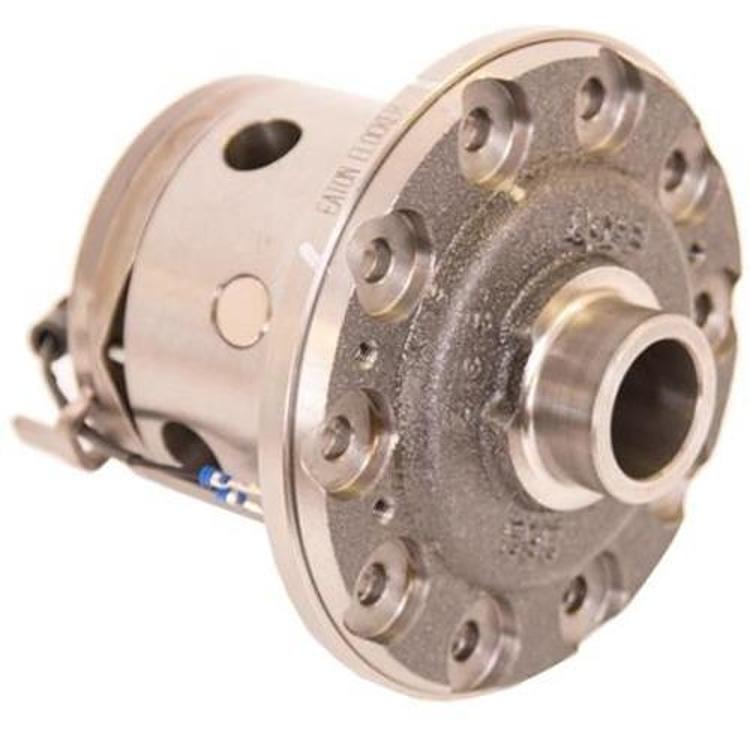

The Eaton Dana 60 35 spline 4.56 up E-Locker, part number 14023-010, is an electronic selectable locker for Dana 60 axles with 35 splines. It fits front and rear axle locations, and no specific vehicle is named.

The locker switches from open to spool with the press of a button. Being electronic, it needs no air lines that can leak and no cables that can catch on components.

Key features

  • Push-button selection from open to spool
  • Electronic operation with 12 Volt power
  • No air lines or cables
  • Dana 60 axle with 35 splines and a 4.56 up ratio

Matching spline count and ratio

Spline count and gear ratio work together, so a locker that matches one but not the other will not function as intended. Count the splines on the axle shafts and confirm the ring and pinion ratio before ordering. Mixing a locker with a different ratio can cause gear noise, uneven wear or failure under load.

When the ratio is confirmed, look at the rest of the axle. Bearings, pinion seals and the carrier should be checked for wear while the carrier is out. Replacing the carrier bearings at the same time is a common choice because the work is nearly the same, and it avoids another teardown later.

Fluid matters too. Use a gear oil suited to lockers and the rest of the drivetrain, and fill to the correct level once the carrier is installed. Keep a record of the ratio and gear set so future service is quicker.

  • Count splines on both axle shafts
  • Confirm ring and pinion ratio
  • Inspect bearings while the carrier is out

Specifications

Brand Eaton
Part number 14023-010
UPC 700007802441
Axle manufacturer Dana
Axle type Dana 60
Axle location Front and rear
Axle spline 35 splines
Differential type Selectable locker
Power 12 Volt
Ratio 4.56 up

Vehicle fitment

Match the spline count and ratio to your axle before ordering. Dana 60 axles with other spline counts or ratios will not work with this locker, so confirm the fit for your vehicle’s year, model and trim.

Dana 60 axles with other spline counts or ratios will not match this locker, even though it is tagged universal fit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The locker goes inside the axle, so the carrier must come out and gear setup should be done by a professional. Its 12 Volt feed needs a fuse, and the wiring should be routed away from moving parts.

What’s included

Make sure any switch, wiring or carrier hardware you receive matches your installation before work begins.

SKU: EAT14023-010 Category:

Specification

Shipping weight 24.00 lbs
Package dimensions 10.00 × 8.00 × 8.00 in
brands

Questions & Answers

Does the Eaton 14023-010 E-Locker fit my Dana 60?

Only if your Dana 60 has 35 splines and a 4.56 up ratio. Confirm both figures on your axle before buying, since no vehicle is named for this locker.

Is a 4.56 up ratio the same as a 4.56 down ratio?

No. This part is a 4.56 up ratio, not a 4.56 down ratio. Its ratio must match your existing gear set, so confirm the gearing on your axle before ordering.

Does this locker need compressed air?

No. The locker is electronic and runs on 12 Volt power with no air lines or cables. Confirm that your wiring can provide a fused 12 Volt feed before installation.

How can you confirm your axle's spline count before buying?

Count the splines on the axle shaft and check the stamped tag on the housing. Measure the ring and pinion ratio, and compare those readings with the locker before ordering. Take the time to verify both before the order is placed.
