Eaton Dana 35 30 Spline 3.54 Up E-Locker – 19822-010

Eaton

Shop Eaton Differential Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eaton 19822-010 rear E-Locker for Dana 35 axles
  • 30 spline, 3.54 up ratio designation
  • Push button shift between open and spool

Description

Overview

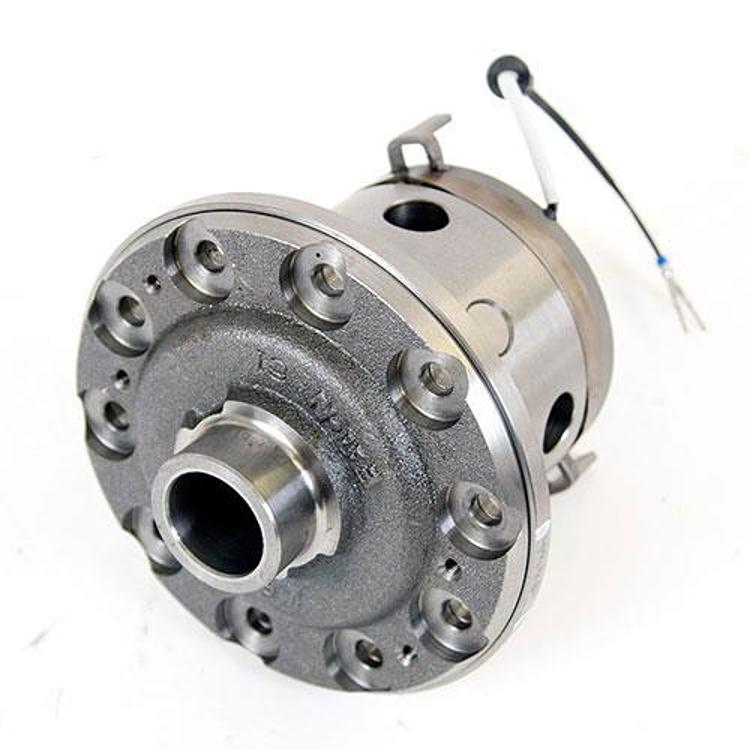

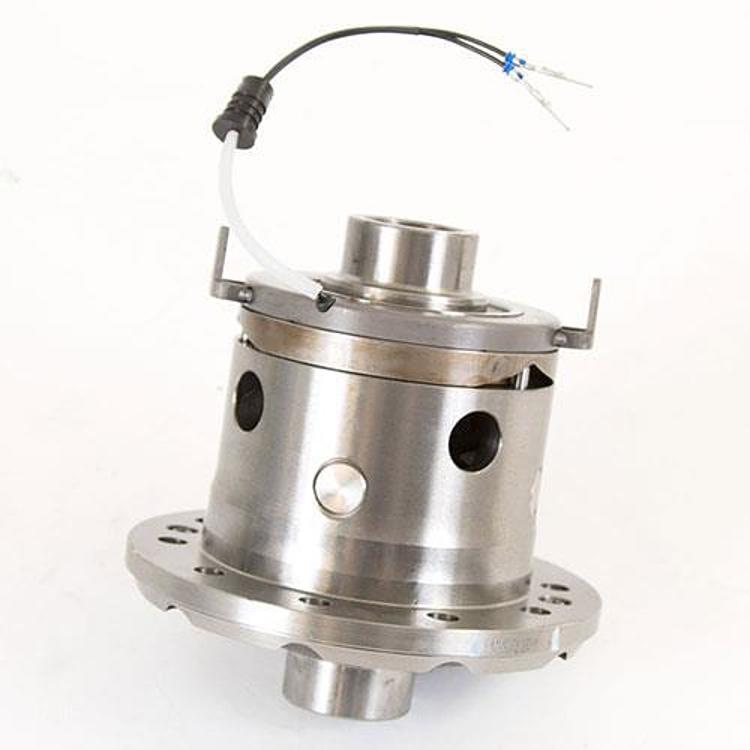

The Eaton 19822-010 is a rear E-Locker for Dana 35 axles with 30 splines and a 3.54 up ratio designation. The push button moves the locker between open and spool.

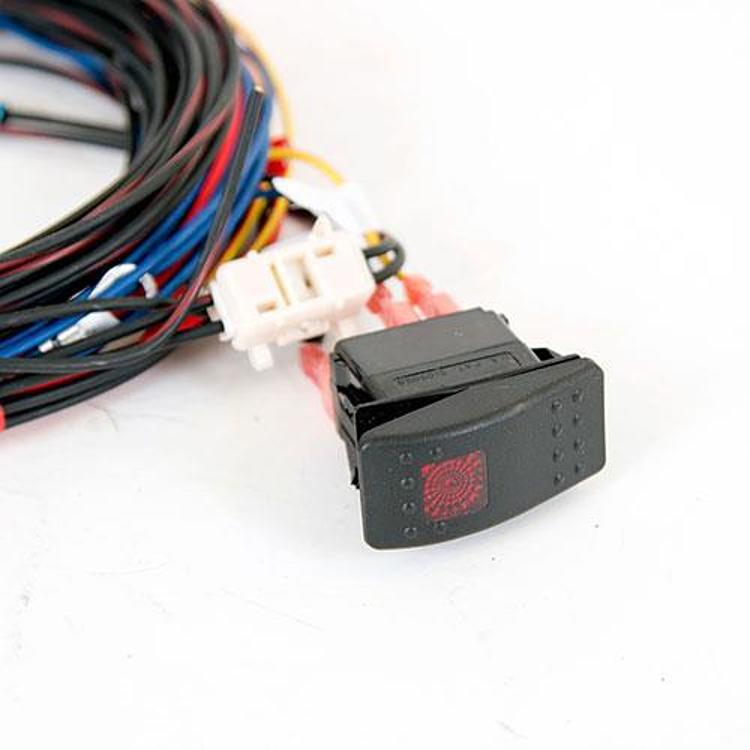

The push button switch changes the locker between open and spool, and the unit needs 12 volt power and nothing more. Air lines and cables are not part of the design.

Key features

  • Push button shift between open and spool
  • 12 volt power only
  • Rear location
  • 30 spline axle shaft fitment

Switch and wiring basics

A locker changes how a rear axle shares torque between its two wheels. In open mode the carrier behaves like a standard differential, sending power to whichever wheel has the least grip. Moving the unit to spool locks both axle shafts together so they turn at the same speed, which is useful on loose or uneven ground. Because spool mode removes the speed difference between wheels, it is best engaged at low speed and disengaged before tight turns on pavement.

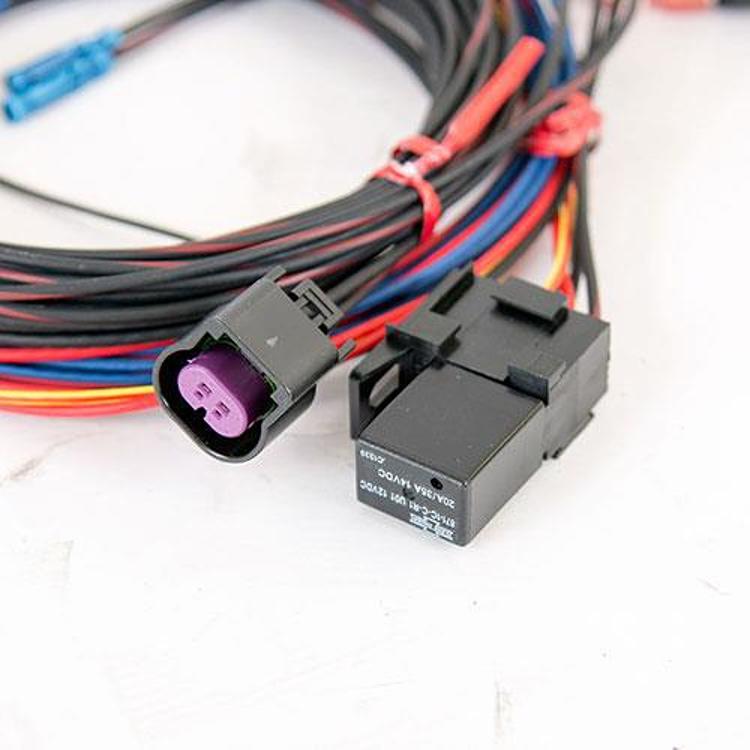

The switch and locker both draw from the 12 volt system, so check that the vehicle’s wiring can supply it before installing. Carrier work often includes replacing the pinion seal, carrier bearings and axle shaft seals, since the axle is already open. When the carrier is out, inspect the axle shaft splines and look for wear or chipped teeth before reassembly.

  • Check the pinion and carrier bearings while the axle is open
  • Inspect axle shaft splines for wear
  • Plan the switch wire route before closing the axle

Specifications

Brand Eaton
Part number 19822-010
UPC 1982201000
Axle manufacturer Dana
Axle location Rear
Axle type Dana 35
Axle spline 30 splines
Ratio designation 3.54 up
Locker type E-Locker, push button selectable
Power 12 volt

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Match the Dana 35 axle type and 30 spline count to your current carrier, since shafts with a different spline count will not seat.

Confirm your vehicle’s year, model and trim before ordering. Check the spline count before ordering, since shafts of a different count will not seat.

Installation notes

Installing the carrier calls for removing the old unit and setting gear mesh and preload. A gear shop should do this work, and the switch wiring should be run before the axle is closed up.

What’s included

This entry is the E-Locker unit, part number 19822-010.

Not included: Nothing is said here about the switch, harness, ring gear or pinion.

SKU: EAT19822-010 Category:

Specification

Shipping weight 23.50 lbs
Package dimensions 12.50 × 12.50 × 12.00 in
brands

Questions & Answers

What is the Eaton 19822-010?

It is a rear E-Locker for Dana 35 axles with 30 splines and a 3.54 up ratio designation. The push button moves the locker between open and spool.

Is there vehicle fitment for this rear unit?

No vehicle fitment is given for this rear unit. Match the Dana 35 axle type and 30 spline count to your current carrier before buying.

Does the unit need any extra power source?

No. It runs on 12 volt power only, so the wiring runs from your vehicle's electrical system to the switch and locker.

How is an E-Locker different from an open carrier?

An E-Locker is electrically engaged, so the axle sends drive to both wheels only when the switch is set to spool. With an open carrier, torque goes to the wheel that has the least grip. The unit is operated by the push button switch, not by air or cables.
