Eaton Dana 30 27 Spline 3.73 Up E-Locker – 19818-010

Eaton

Shop Eaton Differential Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eaton 19818-010 front E-Locker for Dana 30 axles
  • 27 spline, 3.73 up ratio designation
  • 12 volt power, no air lines

Description

Overview

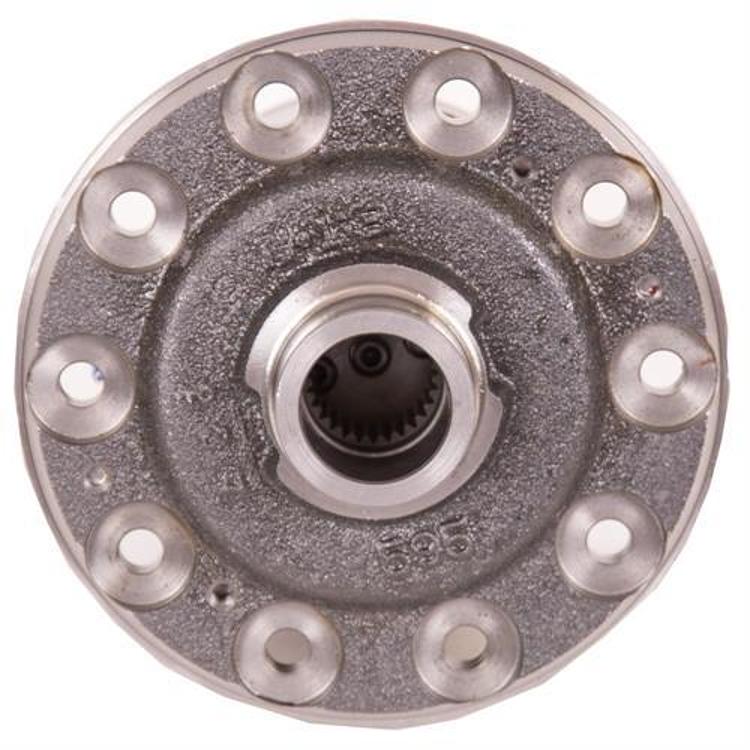

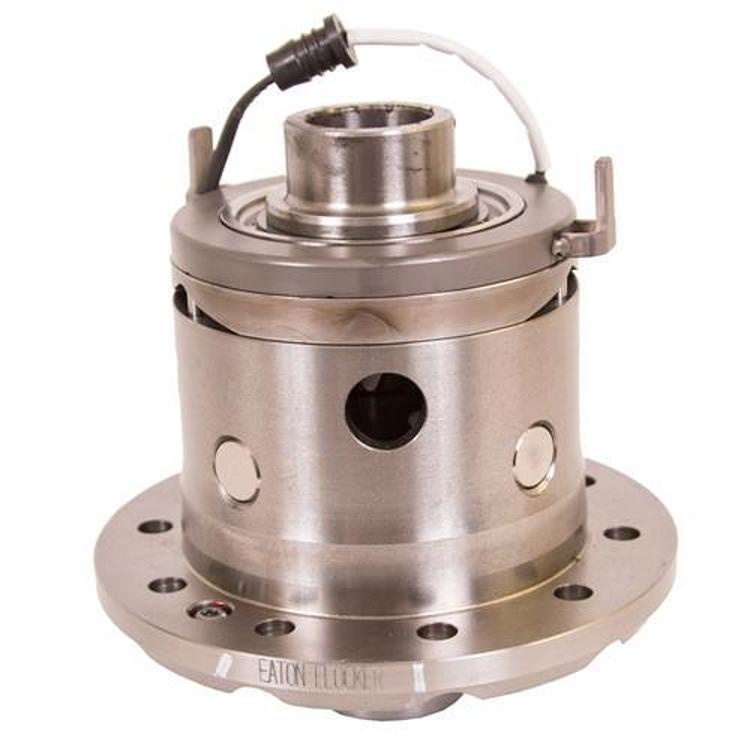

The Eaton 19818-010 is a front E-Locker for Dana 30 axles with 27 splines and a 3.73 up ratio designation. The listed axle types are Dana 30 JK, Dana 30 Standard, Dana 30 Reverse and Dana 30 TJ.

The unit moves from open to spool when a push button is pressed, and it runs on 12 volt power alone. That keeps the electrical work to a power feed and a switch.

Key features

  • Push button shift between open and spool
  • 12 volt power, no air lines or cables
  • 27 spline front axle fitment
  • 3.73 up ratio designation

Pairing with tires and gears

A front E-Locker works best when the tire diameter and gear ratio are chosen together, since both change the load on the carrier. Larger tires make the gears work harder, and a locker adds to that stress when engaged. Keeping the tire size within what the carrier can handle protects the ring and pinion and the locker itself.

The electrical side is simpler than air or cable systems, but the switch and power feed still need to be planned. A reliable 12 volt supply helps the locker engage consistently, especially after exposure to water and mud. Inspect connectors during service so a poor contact does not prevent engagement when it is needed.

  • Match tire diameter to the carrier
  • Protect the ring and pinion from overload
  • Seal connectors against water and mud
  • Check the switch before trail trips

Specifications

Brand Eaton
Part number 19818-010
UPC 1981801000
Axle manufacturer Dana
Axle location Front
Axle types Dana 30 JK, Dana 30 Standard, Dana 30 Reverse, Dana 30 TJ
Axle spline 27 splines
Ratio designation 3.73 up
Locker type E-Locker, push button
Power 12 volt

Vehicle fitment

Fit is matched by axle type, 27 spline count and 3.73 up ratio. Dana 30 names are axle designations rather than vehicle models, so measure your housing before ordering. Verify the year, model and trim against your vehicle before buying.

Confirm your vehicle’s year, model and trim before ordering. Compare the axle housing to the axle types above.

Installation notes

The carrier must be set with ring and pinion backlash and preload correct, which calls for a shop with gear setup experience. Feed the switch wiring during assembly so the connection is ready for testing.

What’s included

Supplied item: E-Locker unit, part number 19818-010.

Not included: Power wiring, switch and ring gear are outside this unit and need separate sourcing.

SKU: EAT19818-010 Category:

Specification

Shipping weight 20.35 lbs
Package dimensions 11.00 × 11.00 × 10.00 in
brands

Questions & Answers

What does the Eaton 19818-010 do?

It is a front E-Locker for Dana 30 axles with 27 splines and a 3.73 up ratio designation. A push button moves it from open to spool using 12 volt power.

Which Dana 30 types are listed?

The listed types are Dana 30 JK, Dana 30 Standard, Dana 30 Reverse and Dana 30 TJ. These are axle designations, so match your housing and spline count rather than a vehicle name.

Does it need air or cables?

No. The E-Locker needs only 12 volt power, with no air lines to leak and no cables to catch on rocks or brush.

What happens if the E-Locker does not engage?

Check the 12 volt supply and the switch wiring first, since a loose connection or blown fuse is the most common reason. If power is present and the locker still does not engage, have a gear shop inspect the unit and the carrier.
