Eaton Dana 60 40 Spline 4.10 Down E-Locker – 14024-010

Eaton

Shop Eaton Differential Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eaton Dana 60 selectable locker, 40 spline, 4.10 down ratio
  • Electronic push-button operation on 12 Volt power
  • Front and rear axle location, part number 14024-010
  • No vehicle named; confirm axle spline count

Description

Overview

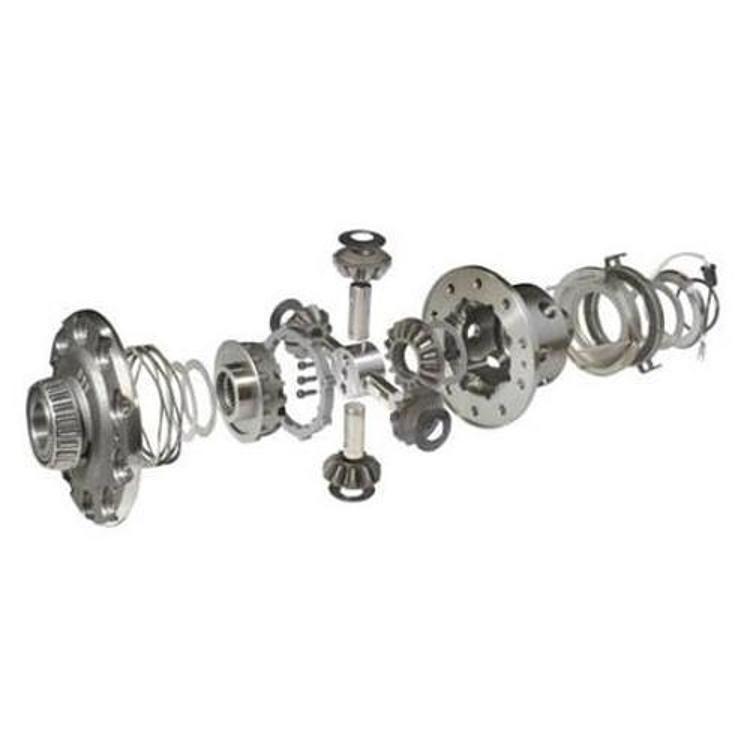

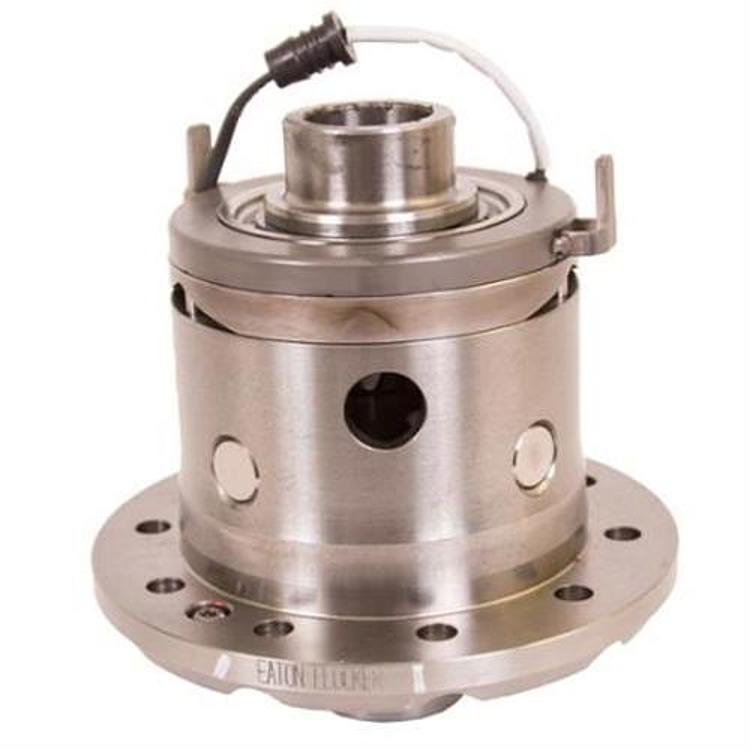

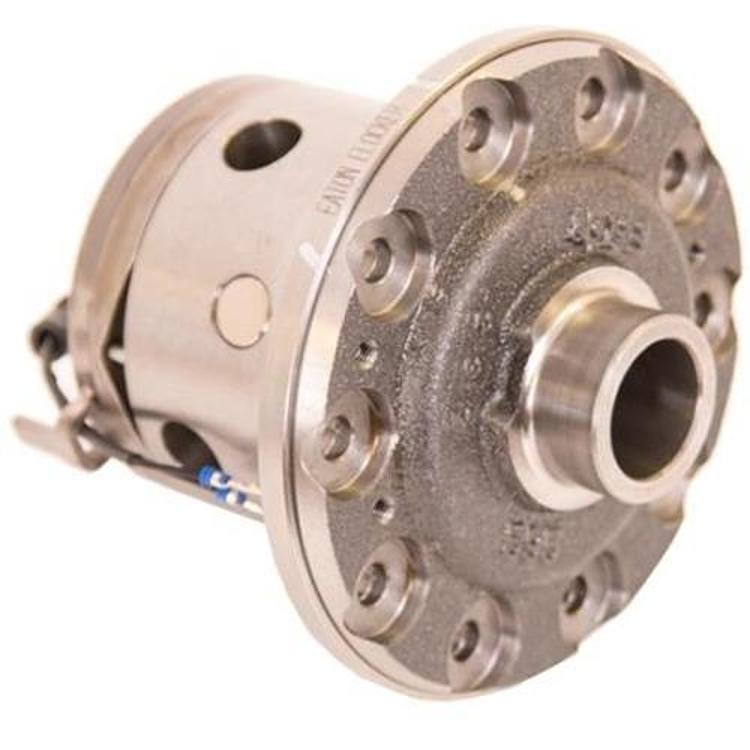

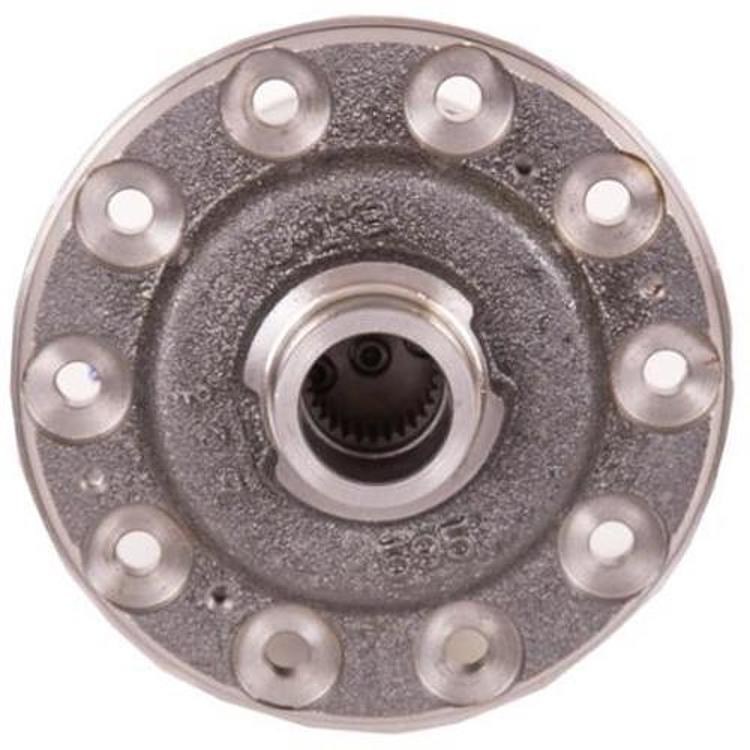

The Eaton Dana 60 40 spline 4.10 down E-Locker, part number 14024-010, is an electronic push-button selectable locker for Dana 60 axles with 40 splines. It is shown for front and rear axle locations, and no particular vehicle is named.

The unit shifts between open and spool at the push of a button on 12 Volt power. Its electronic operation avoids air lines and cable linkages, either of which can leak or snag.

Key features

  • Push-button selection between open and spool
  • Electronic operation on 12 Volt power
  • Dana 60 axle with 40 splines
  • 4.10 down ratio

Keeping the axle healthy

A selectable locker puts extra load on the axle shafts and carrier when engaged, so the rest of the drivetrain should be in good condition. Check axle seals for leaks, look for play in the wheel bearings, and inspect the U-joints before adding a locker. Worn parts are easier to address during a carrier-out service.

Lockers also reward careful driving. Engage the unit before traction is lost rather than after a wheel spins, and disengage it before returning to pavement. Keeping the gear oil clean and at the right level protects the internals of the locker and gear set over time.

  • Check axle seals and wheel bearings before fitting
  • Engage the locker before wheels spin
  • Keep gear oil clean and at the correct level

Specifications

Brand Eaton
Part number 14024-010
UPC 70000780309
Axle manufacturer Dana
Axle type Dana 60
Axle location Front and rear
Axle spline 40 splines
Differential type Selectable locker
Power 12 Volt
Ratio 4.10 down

Vehicle fitment

Match the spline count and ratio on your axle before ordering. The unit is a Dana 60 axle locker with 40 splines and a 4.10 down ratio.

A Dana 60 with a different spline count or ratio won’t match. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This locker mounts inside the axle housing, so the carrier is removed for installation and professional gear setup is recommended. Provide a fused 12 Volt supply and keep the wiring clear of moving driveline parts.

What’s included

Review the wiring, switch and carrier hardware you have before starting the install.

SKU: EAT14024-010 Category:

Specification

Shipping weight 40.80 lbs
Package dimensions 10.40 × 9.80 × 9.80 in
brands

Questions & Answers

Will the Eaton 14024-010 locker fit my Dana 60?

Only if your Dana 60 has 40 splines and a 4.10 down ratio. Check your axle's spline count and ratio, then confirm vehicle fit for your year, model and trim before ordering.

Is this E-Locker push-button or air operated?

Push-button. The product switches from open to spool with a button and needs 12 Volt power, with no air lines that can leak. It is an electronic selectable locker for Dana 60 axles.

What are the part number and UPC for this 40 spline locker?

The part number is 14024-010 and the UPC is 70000780309. The brand is Eaton, and the locker is a selectable type for Dana 60 axles with 40 splines.

Should the gear oil be changed when a locker is installed?

Often yes, since the carrier is opened during installation. Fresh gear oil of the type your service information specifies helps protect the gears and the locker mechanism during early break-in.
