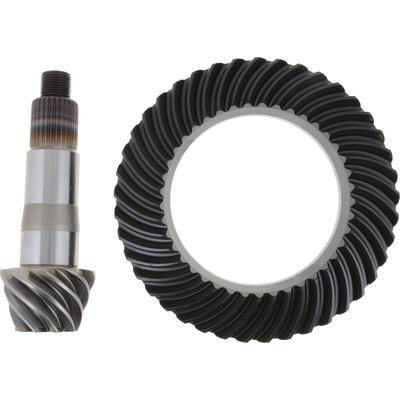

Dana Spicer Dana 35 Rear AdvanTEK 3.45 Ring and Pinion – 10060460

Dana Spicer

$191.54Currently unavailable
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 7:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear ring and pinion gear set with a 3.45 gear ratio
  • Made for the Dana 35 AdvanTEK rear axle
  • Part number 10060460
  • Built to original equipment specifications

Description

Overview

The Dana Spicer 10060460 is a rear ring and pinion gear set with a 3.45 gear ratio for the Dana 35 AdvanTEK axle. The pair of gears sets the final drive ratio inside the differential, so matching the ratio to your existing setup matters.

The gears are made to original equipment specifications. The set is matched by axle type, so the axle housing is the key fit check rather than any vehicle model.

Key features

  • Rear axle position
  • 3.45 gear ratio
  • Dana 35 AdvanTEK axle type
  • Made to original equipment specifications

Final drive ratio and gearing

The ring and pinion sets the final drive ratio, so changing it changes how engine torque reaches the wheels and how the axle turns at a given speed. A 3.45 ratio is often chosen for highway use, where lower engine speed at cruising is a priority. Check that the ratio fits the tires, transmission and intended driving before ordering.

Gears are sold as a matched pair, and the pinion and ring gear should be replaced together. Mixing new and worn gears leads to uneven contact and noise. Carrier bearings and pinion bearings often wear along with the gears, so inspect them before reassembly and replace any showing damage or roughness.

  • Replace ring and pinion as a matched pair
  • Confirm ratio against tire size and use
  • Inspect carrier bearings before reassembly

Specifications

Brand Dana Spicer
Part number 10060460
Axle location Rear
Axle type Dana 35 AdvanTEK
Axle manufacturer Dana
Gear ratio 3.45
Fitment Universal fit, by axle type

Vehicle fitment

Fitment is by axle type: the Dana 35 AdvanTEK rear axle with a 3.45 ratio. No vehicle year, make, model or trim is named, so confirm the housing before installing.

No other vehicles are named for this set. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pinion depth, carrier bearing preload and backlash all need to be set and checked on this 3.45 set. A break-in period usually follows, so the new gears can settle under light load before full use.

What’s included

The rear ring and pinion gear set is the item described.

Not included: Check the package contents for bearings, shims and seals, which need to be planned for separately.

Questions & Answers

What gear ratio is the 10060460?

The gear ratio is 3.45, meaning the pinion turns 3.45 times for each full turn of the ring gear. Confirm the ratio and axle type match your current setup before installing the set.

Which axle fits this ring and pinion?

The set is for the Dana 35 AdvanTEK rear axle and is matched by axle type. Confirm the axle type on your housing before installing.

Does the set include bearings or shims?

The set is a ring and pinion gear set only. Plan for bearings, shims and seals separately, and have pinion depth and backlash checked during installation.

Should the ring and pinion be replaced as a pair?

Yes. The ring and pinion are matched during manufacturing, so they should be replaced together. Replacing one gear with a worn partner leads to noise, uneven contact and early wear. Check the bearings and carrier at the same time.
