Overview

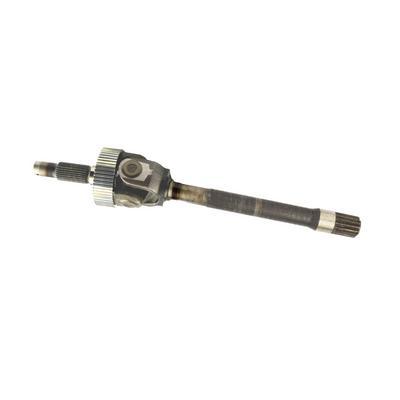

The Dana Spicer 75589-1X is a front right passenger side axle shaft assembly for the Dana 30 reverse axle, with 15 splines. It fits the 1992–2001 Jeep Cherokee (XJ), the 1993–1998 Jeep Grand Cherokee (ZJ), the 1997–2002 Jeep Wrangler (TJ) and the 1993–1995 Jeep Wrangler (YJ).
Dana Spicer makes these as high-quality O.E replacement shafts for most popular factory applications. They are designed to match the original factory shaft.
Key features
- Front right passenger side assembly
- Dana 30 reverse axle type
- 15 splines per the bullets
- O.E replacement design
Replacing a worn axle shaft
An axle shaft transfers power from the differential to the wheel, so wear shows up as noise, vibration or a loss of drive. A clicking sound on tight turns often points to a worn joint, while a grinding or humming noise under load can come from the bearing or seal. A broken shaft can leave the wheel unable to turn under power, so inspect it promptly if the vehicle shakes or the wheel wobbles.
Replacement is easiest when the axle seal, bearing and retainer are checked while the shaft is out. Clean the splines and mating surfaces before fitting the new shaft, and use fresh gear oil if the differential was opened. Off-road use and deep water crossings are hard on seals, so check for leaks after any trail run.
- Check the axle seal for grease or fluid leaks
- Inspect the wheel bearing for play or noise
- Clean splines before fitting the new shaft
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 75589-1X |
| Axle maker | Dana |
| Axle location | Front |
| Axle shaft location | Passenger side assembly |
| Position | Front right |
| Axle type | Dana 30 Reverse |
| Axle spline | 15 splines |
Vehicle fitment
It fits the 1992–2001 Jeep Cherokee (XJ) in Base, Briarwood, Classic, Country, Laredo, Limited, SE and Sport trim, the 1993–1998 Jeep Grand Cherokee (ZJ), the 1997–2002 Jeep Wrangler (TJ) in SE, Sahara, Sport and X trim, and the 1993–1995 Jeep Wrangler (YJ). Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One front right passenger side axle shaft assembly.
