Currie Enterprises High Pinion HD60 Front Axle with 5.13 Gears and Eaton E-Locker – CE-KF6400E51

Currie

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie Enterprises high pinion HD60 front axle with 5.13 gears and an Eaton E-Locker
  • Built for the 2007 thru 2018 Wrangler JK and JKU with a 60 series center section
  • Direct bolt-in with heavy-duty brackets and mounts in the stock location
  • Factory ABS sensors and steering and brake parts must be transferred
  • Needs a high-clearance tie rod, computer reset, and driveshaft work

Description

Overview

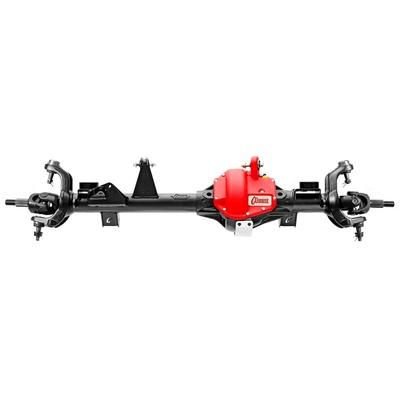

The Currie Enterprises CE-KF6400E51 is a high pinion HD60 front axle with 5.13 gears and an Eaton E-Locker for the 2007 thru 2018 Wrangler JK/JKU. It is the 5.13 ratio version of the HD60 front axle, and the only difference from the 4.88 version is the gear set.

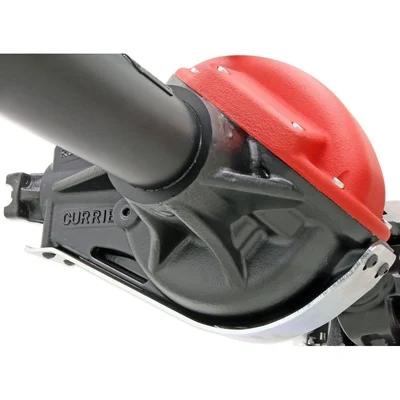

Currie builds the housing around a reinforced, rotated 60 series center section with 3.5-inch tubes. Chromoly axle shafts with 35 splines run inside the housing, and forged JK inner knuckles connect the axle to the steering and suspension parts.

Heavy-duty brackets and mounts let the HD60 go into the stock location, which makes it a direct bolt-in part. The brakes and wheel bolt pattern use the factory ends, and the Eaton E-Locker provides locking traction at the front.

Key features

  • High pinion HD60 front axle with a rotated 60 series center section
  • 3.5-inch tubes
  • Chromoly axle shafts with 35 splines
  • Forged JK inner knuckles
  • Eaton E-Locker traction device
  • Heavy-duty brackets and mounts in the stock location

Gear ratio and driveline changes

Moving to a 5.13 ratio changes how the drivetrain turns at every road speed. The engine runs at a higher rpm for the same speed, so the transmission and fuel economy feel the difference. Tire height matters too, because a taller or shorter tire shifts the effective ratio, and the vehicle’s computer has to match both.

Gear work is best done by a shop familiar with the Dana 60 pattern, with the carrier setup and backlash checked before the axle returns to service. Inspect the axle seals and pinion bearing preload after the first few drives, and check the fluid level after any fill or drain. Keep the factory parts you remove in case you need to return to the original setup, and plan the steering and brake transfer before the axle is lifted into place.

Specifications

Brand Currie Enterprises
Part number CURCE-KF6400E51
Axle position Front
Axle type High pinion HD60
Center section 60 series, rotated
Tube diameter 3.5-inch
Axle shafts Chromoly
Axle spline 35 splines
Gear ratio 5.13
Traction device Eaton E-Locker
Wheel bolt pattern Reuse factory ends
Brakes Reuse factory
Housing Jeep JK, Dana 60 pattern

Vehicle fitment

It fits the 2007 thru 2018 Wrangler JK and JKU. The stock mounts are reused, so the swap is a bolt-in change for those years, with the factory outer steering and brake components moved to the new housing.

The 2018–2022 Jeep Wrangler JL and the Gladiator JT are outside this fit. Compare your vehicle’s year, model and trim before placing an order.

Installation notes

Plan on a high-clearance aftermarket tie rod to clear the housing at full turn; Currie cites Steer Smarts (Yeti XD P/N 78065001) as a JK and JKU compatible source. A steering stabilizer requires a stud-style trac bar bolt such as FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01. The vehicle’s computer must be reset by a programmer for the 5.13 gear ratio and the tire height, and the factory driveshaft needs modification or replacement.

Lift the vehicle on stands, not the jack alone, before disconnecting the steering and brake parts. Keep the factory ABS sensors aside so they can be moved to the Currie housing.

What’s included

The HD60 front axle comes with the Eaton E-Locker and the heavy-duty brackets and mounts for the stock location.

Not included: ABS sensors (keep the factory sensors), a high-clearance tie rod, a trac bar bolt for a steering stabilizer, a computer programmer, and driveshaft modifications or replacement.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the CE-KF6400E51 fit my 2016 Jeep Wrangler JK?

Yes. It fits the 2007 thru 2018 Wrangler JK and JKU, and 2016 falls within that range. The housing bolts into the stock mounts, but the factory steering and brake parts have to be moved over.

What gear ratio is the CE-KF6400E51?

It has a 5.13 gear ratio. The Currie housing is paired with 35 spline chromoly axle shafts and an Eaton E-Locker, and the vehicle's computer must be reset for the 5.13 ratio and the tire height.

Is a steering stabilizer bolt needed with this axle?

Yes, if you run a steering stabilizer. The HD60 ram assist bracket needs a stud-style trac bar bolt; Currie lists FOX Racing P/N 803-02-028 and Synergy Manufacturing P/N 8806-01 as sources for that bolt.

Does a 5.13 gear swap need other driveline work?

Usually yes. The computer must be reset for the new ratio and tire height, and the factory driveshaft may need modification or replacement. Plan these steps before driving the vehicle on the road.

How often should the front axle fluid be checked after the swap?

Check the fluid level after the first few drives and at regular service intervals. Look for leaks at the seals and cover, since gear wear shows up as metal particles and a change in noise.
