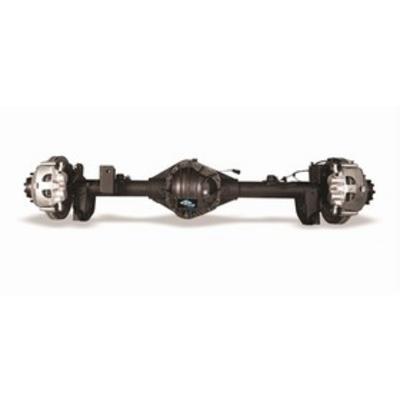

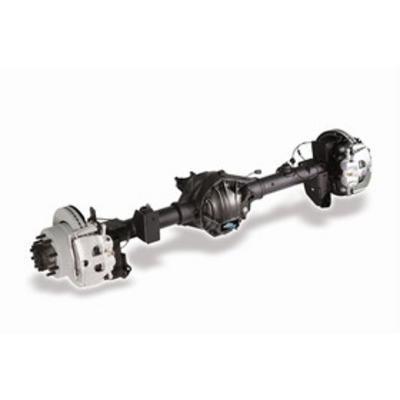

Dana Spicer Jeep JK Ultimate Dana 60 Rear Axle Assembly 4.88 Ratio – 2023612-1

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ultimate Dana 60 rear axle assembly with a 4.88 ratio for Jeep Wrangler JK
  • Factory electric locker and disc brake upgrade
  • 35 spline axle shafts and an 8 on 6.5 inch wheel pattern
  • Fits 2007–2018 Jeep Wrangler JK, 2-door and 4-door.
  • Part number D/S2023612-1

Description

Overview

It is an Ultimate Dana 60 rear axle assembly with a 4.88 gear ratio, built for the Jeep Wrangler JK. It fits the 2007–2018 Jeep Wrangler (JK) in 2-door and 4-door models, and it is the 4.88 ratio of the same Dana 60 rear used on the JK.

The Ultimate Dana 60 is built for off-road drivers who want more strength. This version includes a factory electric locker and a disc brake upgrade. It takes 35 spline axle shafts, and the wheel bolt pattern is 8 on 6.5 inches.

Compared with the 4.10 version of this rear, the 4.88 ratio is the numerically higher gear, which means more torque multiplication at the axle. Pick the ratio that suits your tire size and how you drive.

Key features

  • Ultimate Dana 60 rear housing for the Jeep Wrangler JK
  • 4.88 gear ratio
  • Factory electric locker
  • Disc brake upgrade
  • 35 spline axle shafts

Trail gearing and use

Gear ratio is a trade-off. A higher numerical ratio multiplies torque at the wheels, which helps when climbing, crawling or pulling loads, but it also raises engine speed at highway pace. Many drivers match the ratio to their most common driving, whether that is trail work or daily travel.

A locker and disc brake upgrade change how the rear behaves under load, so keep up with brake fluid, pad wear and rotor condition. Check the rear housing for leaks after water crossings and loose-surface runs, and inspect the axle shaft splines for wear at each service.

  • Inspect brake pads and rotors on the disc brake upgrade
  • Check the housing for leaks after water crossings
  • Look for wear at the axle shaft splines during service

Specifications

Brand Dana Spicer
Part number D/S2023612-1
Axle type Ultimate Dana 60 rear
Position Rear
Housing Jeep JK, Dana 60 (2007 onward)
Gear ratio 4.88
Axle spline 35 splines
Traction device Factory electric locker
Brakes Disc brake upgrade
Wheel bolt pattern 8 on 6.5 inches
Fitment type Direct fit

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler (JK), 2-door and 4-door models. It is a JK rear, so it is not the JL rear design used from 2018 on.

Confirm fit for your vehicle’s year, model and trim before ordering, particularly if you own a JL, a Gladiator or an older TJ, LJ or YJ.

What’s included

The rear axle assembly with the factory electric locker, disc brake upgrade and 35 spline axle shafts. No other hardware is listed.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the difference between 2023612-1 and 10034270?

Both are Ultimate Dana 60 rear axles for the Jeep Wrangler JK. The 2023612-1 has a 4.88 gear ratio, and the 10034270 has a 4.10 ratio. Both carry a factory electric locker and a disc brake upgrade.

Does the 2023612-1 fit a 2016 Jeep Wrangler JK?

Yes. It fits the 2007–2018 Jeep Wrangler (JK) in 2-door and 4-door models, and 2016 falls within that range. Check that your rear is a JK Dana 60 before ordering.

What is the wheel bolt pattern on this rear?

The rear uses an 8 on 6.5 inch wheel bolt pattern with 35 spline axle shafts. Confirm your hubs match that pattern before you install the axle.

Does a higher numerical ratio affect highway fuel use?

Yes, a numerically higher ratio keeps the engine turning faster at a given road speed, which generally increases fuel use on the highway. It helps low-speed pulling and crawling. Think about how most of your driving is done before settling on a gear.
