Currie RockJock 60 Front Axle Housing (Eaton Elocker – 5.13) – CE-KF6301E51

Currie

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Complete front axle assembly with Eaton E-Locker, 5.13 ratio
  • Stage-1 high-pinion Dana 60 housing with AR400 skid plate
  • Fits the 2007–2017 Jeep Wrangler (JK)
  • Part number CE-KF6301E51

Description

Overview

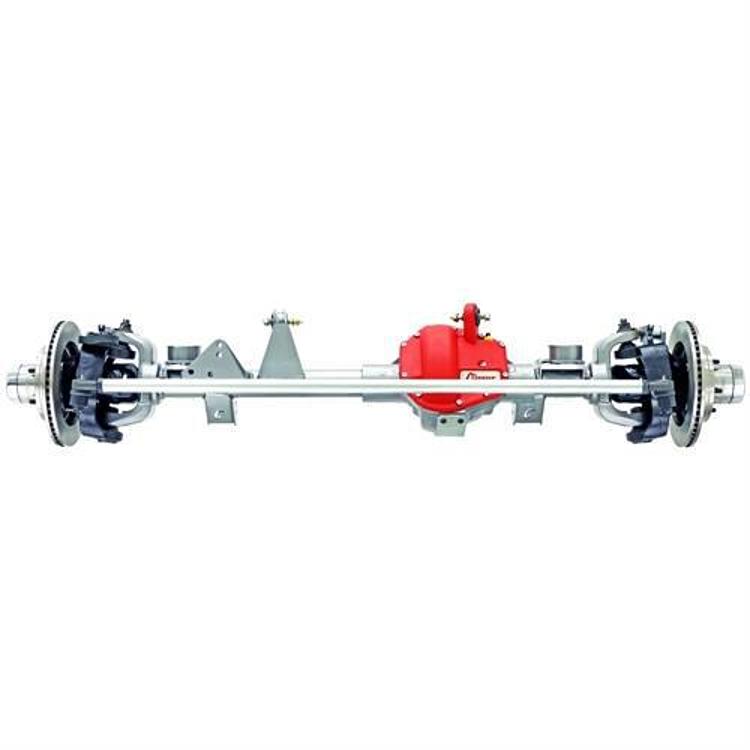

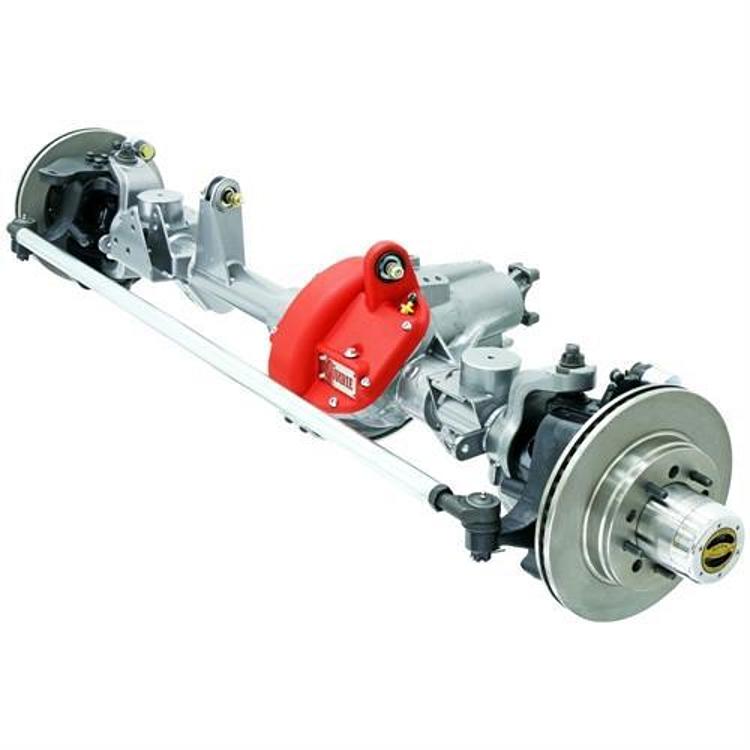

The Currie RockJock 60 front axle housing, part CE-KF6301E51, is a complete high-pinion front axle with an Eaton E-Locker and a 5.13 ratio, fitting the 2007–2017 Jeep Wrangler (JK).

The RockJock 60 uses Currie’s high clearance radius bottom center section, which lets the axle slide over obstacles. The housing has a thick reinforced center section, forged knuckles, 3-inch diameter axle tubes and 35-spline axles, built for strength.

The housing offers high ground clearance for a 60 class axle, measured with its integrated AR400 hardened steel skid plate in place. The skid plate is designed to resist deformation and gouging, and a rounded radius rather than a sharp edge helps the axle clear obstacles.

Key features

  • Eaton E-Locker with 5.13 ratio
  • High-pinion radius bottom center section with thicker walls and webbing
  • 35-spline 4340 chromoly inner and outer axle shafts with 1350 U-joint
  • Integrated AR400 hardened steel skid plate
  • Johnny Joint control arm mounts for upper articulation
  • Warn premium 35-spline locking hubs and 13.250-inch vented rotors
  • Reuses the stock JK calipers

Choosing a front axle upgrade

A front axle carries steering, braking and drive loads, so an upgrade affects more than off-road strength. When you swap in a complete housing, the new gear ratio, locker and axle shafts all work together with the transfer case and driveshafts. Matching the ratio to your tire size and driving style keeps engine speed comfortable on the road and gives the locker useful work on the trail.

Locking differentials change how the axle behaves in low traction. An E-Locker engages on demand, so the axle stays open on pavement and locks when needed, which suits a daily-driven Jeep. Steering geometry and driveline angles often need re-checking after a larger lift or tire change, and joints and bushings should be inspected at the same time.

  • Check U-joints and driveline angles after installation
  • Inspect tie rods and steering stops for clearance
  • Re-torque axle and bracket bolts after the first drives
  • Keep the differential fluid level checked

Specifications

Brand Currie
Part number CE-KF6301E51
UPC 817783008778
Axle position Front
Housing RockJock 60, nodular-iron high-pinion radius bottom center section
Ratio and locker 5.13, Eaton E-Locker
Bolt pattern 5 x 5.5 inch with 1/2-inch studs
Wheel mounting surface 68.750 inches WMS
Axle tubes 3-inch diameter, .375 wall DOM
Axle shafts 35 spline (1.5-inch diameter), 4340 chromoly
Knuckles Heavy duty forged 1-ton, high steer arm
Brakes 13.250-inch vented rotors, zinc plated caliper brackets
Maximum tire size 37 inches

Vehicle fitment

It fits the 2007–2017 Jeep Wrangler (JK), in both standard and Unlimited body styles.

Coverage ends at 2017, so 2018 and later Wrangler JK years are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The housing is a complete front axle assembly, so the existing axle is removed as a whole. JK tone rings are installed for ABS and ESP retention, and the control arm mounts use Johnny Joints with 1/2-inch greasable bolts. Check the alignment and driveline angles after installation, since a new axle changes the suspension geometry.

What’s included

The package includes the complete front axle assembly, Warn hubs and the AR400 skid plate. The assembly reuses the stock JK calipers. Check the package contents, including fill plug and gasket needs, against your installation before starting.

SKU: CURCE-KF6301E51 Categories: ,

Specification

Shipping weight 480.00 lbs
Package dimensions 82.00 × 26.00 × 21.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201770th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the maximum tire size for the Currie RockJock 60 front axle?

Currie recommends a maximum tire size of 37 inches for this housing. Larger tires are not covered by that recommendation, so check your tire diameter against it before ordering.

Does the RockJock 60 front axle reuse the factory brakes?

Yes. It reuses the stock JK calipers and pairs them with 13.250-inch vented rotors and zinc plated caliper brackets, so the front brakes carry over from the stock JK setup.

Which lockers are available for this housing?

The RockJock 60 is offered with Detroit, ARB or Eaton lockers. This version has the Eaton E-Locker with a 5.13 ratio.

How often should the front axle differential fluid be checked?

Check the fluid level during routine service and after trail use, especially if the axle has been submerged or hit hard. Look for leaks at the cover, axle seals and pinion seal, and replace the fluid at the interval your service plan calls for.
