Overview

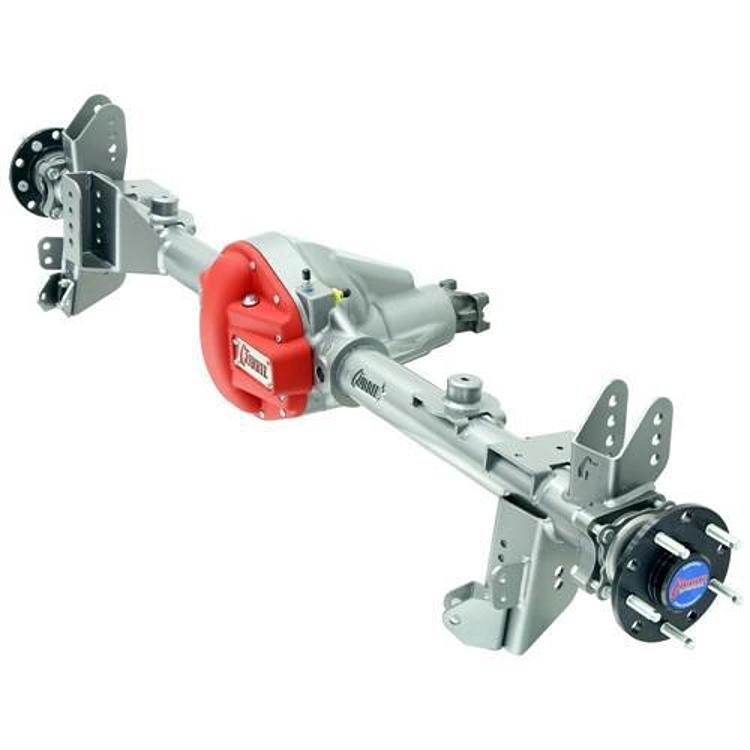

The Currie RockJock 44 rear axle housing, part CE-KR4401E51, is a crate-style rear axle with an Eaton E-Locker and a 5.13 ratio, made for the 2007–2017 Jeep Wrangler (JK).
It is built for JK owners who want a stronger rear housing, a locking differential and a new gear ratio to suit larger tires. It bolts in directly and reuses the factory JK rear brakes, ABS sensors and wheel bolt pattern.
The housing has a low-pinion nodular-iron center section with thicker walls and webbing, and 3-inch diameter tubes with a .375 wall. The axle shafts are semi-floating 30-spline 4140 chromoly, and the assembly uses 10 tapered roller bearings.
The differential cover is nodular iron with a gasketed fill plug and dipstick, finished in red. The brackets are 3/16-inch laser cut steel and offer several suspension mounting points for lifted vehicles.
Key features
- Eaton E-Locker with 5.13 ratio
- 44 low-pinion nodular-iron center section
- 8.8-inch late model ring and pinion set
- Semi-floating 30-spline 4140 chromoly axles
- Reuses the stock rotors, JK rear brakes and ABS sensors
- Heavy gauge 3/16-inch laser cut brackets with several suspension mounting points
Gearing for larger tires
A rear axle gear ratio sets how engine speed translates into wheel speed, and it works together with tire diameter. When tires grow, the effective gearing gets taller, which can make the vehicle feel slow off the line and strain the drivetrain on steep climbs. Many owners who run larger tires change the ratio at the same time as the axle, so the final drive suits the new setup. A locking differential also becomes more useful with bigger tires, because it keeps both wheels pulling when one loses grip on rock or mud.
Before installing a housing like this, check driveline angles, pinion depth and brake lines, since a new axle can shift them. Gear sets are best set up by someone familiar with backlash and pinion preload. Fill the differential to the correct level with the right lubricant and change it on a regular schedule.
After the first trips off road, look for leaks at the cover gasket and fill plug, check the mounting brackets and bolts, and listen for whine or clunking from the gears. Re-tighten fasteners after the first few runs.
- Match the gear ratio to your tire diameter
- Confirm driveline angles after any lift or axle swap
- Inspect the cover gasket and fill plug for leaks
- Re-torque bracket bolts after the first trail runs
Specifications
| Brand | Currie |
|---|---|
| Part number | CE-KR4401E51 |
| UPC | 817783008433 |
| Axle position | Rear |
| Housing | RockJock 44, low-pinion nodular iron center section |
| Ratio and locker | 5.13, Eaton E-Locker |
| Ring and pinion | 8.8-inch late model |
| Bolt pattern | 5 x 5 inch with 1/2-inch studs |
| Wheel mounting surface | 65.375 inches WMS |
| Axle tubes | 3-inch diameter, .375 wall DOM |
| Bearings | 10 tapered roller |
| Maximum tire size | 37 inches |
Vehicle fitment
It fits the 2007–2017 Jeep Wrangler (JK), in both standard and Unlimited body styles.
It fits 2007 to 2017 model years. Confirm fit against your vehicle’s year, model and trim before buying, especially for 2018 and later Wrangler JK models.
Installation notes
It bolts in directly, so the stock JK rotors and ABS sensors are reused. The brackets allow for lifted vehicles; after installation, confirm alignment and driveline angles.
What’s included
The housing and its brackets are included. The factory rotors and ABS sensors carry over and are reused.
