  • One-ton Dana 60 front end unit for Jeep TJ and LJ
  • Needs 17-inch wheels, a high-pinion 60 gear set and a Dana 60 carrier
  • Part number TJ-RJIIIF1

Description

Overview

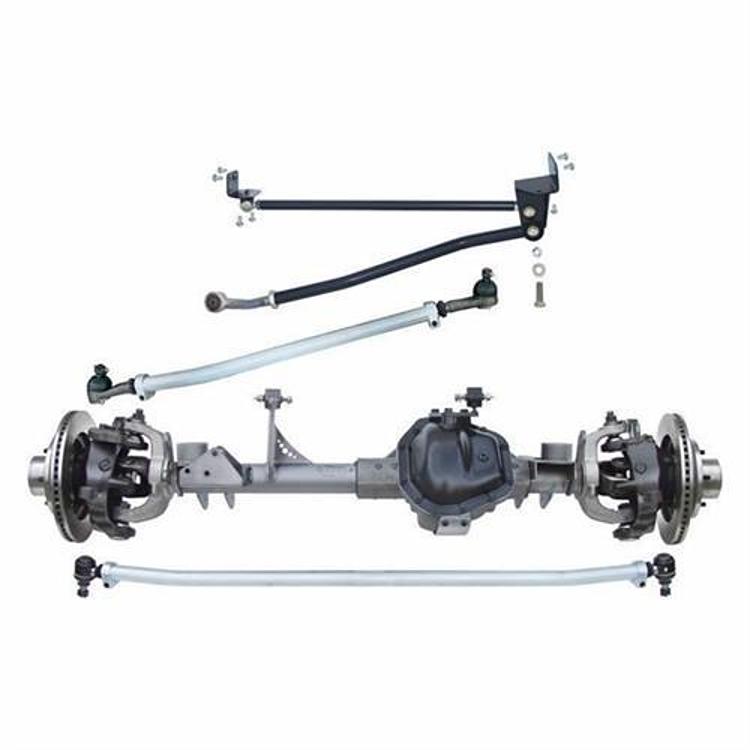

The Currie RockJock 60 one-ton front end unit, part TJ-RJIIIF1, is a bolt-in front end package for the Jeep TJ Wrangler and LJ Unlimited. It covers the 1997–2006 Wrangler (TJ) and the 2004–2006 Wrangler (LJ).

The unit includes a complete housing with a 65-45-12 ductile iron center section, an AR400 heat treated bottom skid plate, 3-inch diameter steel tubes, one-ton inner knuckles and a 5/16-inch thick diff cover. The center section is designed for high ground clearance.

The axle shafts are 4340, 35-spline, with Spicer 1480 U-joints. The outer assemblies have one-ton outer knuckles with a Currie upper steering arm and ball joints, one-ton unit bearings, a 5 on 5 1/2-inch wheel bolt pattern with 1/2-inch studs, 13.25-inch vented rotors and Jeep JK calipers.

Key features

  • Complete one-ton 60 front end package with housing and steering
  • 65-45-12 ductile iron center section with AR400 bottom skid plate
  • 4340 35-spline inner and outer axle shafts with Spicer 1480 U-joints
  • Johnny Joint upper control arm mounts and an adjustable trac bar
  • Choice of Warn premium manual locking hubs or Currie drive flanges
  • Heavy duty 4130 chrome moly tie rod and drag link tubes
  • Jeep JK calipers with zinc plated caliper brackets

Front axle setup notes

A one-ton front axle adds weight and changes how the steering responds, so the whole front end should be checked as a set. Steering components, tie rod and drag link angles, and the trac bar all work together. After a build, look at alignment, toe and caster before long trips, since a wider track and heavier knuckles can shift those settings.

Tire and wheel choice matters just as much. Wheels with the right backspacing keep tires clear of the suspension at full lock and during articulation. Grease fittings, hub bearing preload and joint condition should be checked regularly, because heavy front axles put more load on hubs and joints.

  • Check ball joint play after the first trail runs
  • Inspect hub bearing preload at each oil change
  • Recheck steering stop clearance after tire changes

Specifications

Brand Currie
Part number TJ-RJIIIF1
UPC 700008420351
Axle position Front
Housing 97-06 Jeep TJ Dana 60, 65-45-12 ductile iron center section, 3-inch steel tubes
Axle shafts 4340, 35 spline
U-joints Spicer 1480
Wheel bolt pattern 5 on 5.5 inch with 1/2-inch studs
Rotors 13.25-inch vented
Diff cover 5/16-inch thick steel
Overall width 64 inch
Wheel requirement 17-inch wheels

Vehicle fitment

The unit fits the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ).

Before ordering, match the unit to your vehicle’s year, model and trim.

Installation notes

The unit is 64 inches wide and needs 17-inch wheels. Completing it requires a high-pinion 60 ring and pinion gear set, a 35-spline Dana 60 carrier, a center section bearing with a setup kit and the labor to set it up. Installation instructions and hardware are included.

What’s included

The unit includes the steering, trac bar, relocation brackets and hardware. The housing is bare metal, and the other parts are finished in semi-gloss black powder coat or zinc plating. Assembly labor is included.

SKU: CURTJ-RJIIIF1 Categories: ,

Specification

Shipping weight 350.00 lbs
Package dimensions 81.00 × 26.00 × 19.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeep models does the Currie TJ-RJIIIF1 front end fit?

The unit fits Jeep TJ Wrangler and LJ Unlimited vehicles, which covers the 1997–2006 TJ and the 2004–2006 LJ. Match your year and model to that range before ordering.

What wheels does this front end need?

It needs 17-inch wheels, and the unit is 64 inches wide, so check the fit against your tires and wheel offset.

Does the unit include the gear set?

No. A high-pinion 60 ring and pinion gear set and a Dana 60 35-spline carrier are still needed, along with a center section bearing and setup kit.

How does a one-ton front axle change steering?

A heavier front axle with larger knuckles usually steers with more effort, and upgraded steering components help keep response consistent. Check tie rod and drag link angles after the build, since a wider track changes how the linkage moves.

What should be checked after the first drives?

Look at wheel bearing preload, hub torque and ball joint play, then recheck steering alignment. Fasteners often settle after new hardware is installed, so tighten them again after the first trail runs.
