Currie Enterprises High Pinion HD60 Front Axle with 4.88 Gears and Eaton E-Locker – CE-KF6400E48

Currie

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie Enterprises high pinion HD60 front axle with 4.88 gears and an Eaton E-Locker
  • Built for the 2007 thru 2018 Wrangler JK and JKU with a 60 series center section
  • Direct bolt-in with heavy-duty brackets and mounts in the stock location
  • Factory ABS sensors and steering and brake parts must be transferred
  • Needs a high-clearance tie rod, computer reset, and driveshaft work

Description

Overview

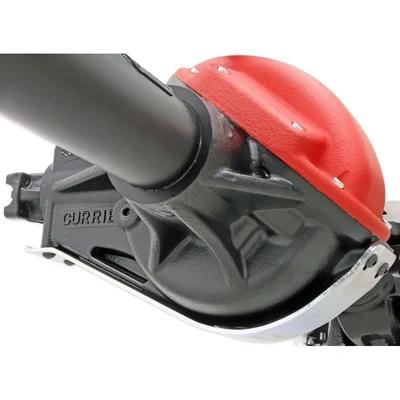

The Currie Enterprises CE-KF6400E48 is a high pinion HD60 front axle with 4.88 gears and an Eaton E-Locker, designed for the 2007 thru 2018 Wrangler JK/JKU. It is a direct bolt-in unit with reinforced parts for heavy off-road use, and it is the 4.88 ratio version of the HD60 front axle.

The housing uses a massively reinforced, rotated 60 series center section with 3.5-inch tubes. The axle shafts are chromoly, the inner knuckles are heavy-duty forged JK parts, and the axle has 35 splines. The HD60 is meant to replace the stock front axle for owners who want more strength than the factory setup offers.

Brackets and mounts are heavy-duty and sit in the stock location, so the axle bolts into the same points as the original. The Eaton E-Locker gives the front axle a locking differential, and the brakes and wheel ends are reused from the factory parts.

Key features

  • High pinion HD60 front axle with a rotated 60 series center section
  • 3.5-inch tubes
  • Chromoly axle shafts with 35 splines
  • Heavy-duty forged JK inner knuckles
  • Eaton E-Locker traction device
  • Heavy-duty brackets and mounts in the stock location
  • Reuses factory brakes and wheel bolt pattern ends

Choosing gears and traction

A 4.88 ratio changes how the engine and transmission turn the tires, so it works best when the tire diameter and the vehicle’s gearing are matched. Larger tires usually call for a numerically higher ratio to keep the drivetrain in a useful power range, and the vehicle’s computer may need to be recalibrated for any ratio change.

An locking front differential gives traction when one wheel loses grip, but it changes steering feel on pavement. Drivers who use the vehicle mostly on the road may prefer to use the locker only when needed. Driveline angles, the front driveshaft and the transfer case output should be checked together when the front axle is replaced.

  • Match gearing to tire diameter
  • Check driveshaft angles after the swap
  • Recalibrate the computer after a ratio change
  • Inspect front axle seals during service

Specifications

Brand Currie Enterprises
Part number CURCE-KF6400E48
Axle position Front
Axle type High pinion HD60
Center section 60 series, rotated
Tube diameter 3.5-inch
Axle shafts Chromoly
Axle spline 35 splines
Gear ratio 4.88
Traction device Eaton E-Locker
Wheel bolt pattern Reuse factory ends
Brakes Reuse factory
Housing Jeep JK, Dana 60 pattern

Vehicle fitment

The axle fits the 2007 thru 2018 Wrangler JK and JKU. The stock mounts are reused, so it is a bolt-in swap for those years, and the factory outer steering and brake components must be moved onto the new housing.

The axle does not fit the 2018–2022 Jeep Wrangler JL or the Gladiator JT, which use different front axle hardware. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A high-clearance aftermarket tie rod is required to avoid tie rod and housing interference at full turn. Currie points to Steer Smarts (Yeti XD P/N 78065001) for a JK-compatible option. A steering stabilizer needs a stud-style trac bar bolt, such as FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01, and the vehicle’s computer must be reset with a programmer for the new gear ratio and tire height. The factory driveshaft will need modification or replacement for the larger 60 series housing and 1350 series u-joint.

Front axle work involves lifting the vehicle and disconnecting steering and brake parts, so support the vehicle on stands and retain the factory ABS sensors before you start.

What’s included

The kit includes the HD60 front axle with the Eaton E-Locker, plus the heavy-duty brackets and mounts that bolt into the stock location.

Not included: ABS sensors (keep the factory sensors and install them on the Currie housing), a high-clearance tie rod, a trac bar bolt for a steering stabilizer, a computer programmer, and driveshaft modifications or replacement.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the CE-KF6400E48 fit a 2007 Jeep Wrangler JK?

Yes. The HD60 front axle is designed for the 2007 thru 2018 Wrangler JK and JKU, so a 2007 model is covered. It bolts into the stock mounting points, and the factory outer steering and brake components must be transferred to the new housing.

Does the HD60 come with ABS sensors?

No. The factory ABS sensors from the stock axle must be kept and installed on the Currie housing. The axle does not include ABS sensors, so plan to reuse the existing ones.

Do I need a special tie rod or steering stabilizer bolt?

A high-clearance aftermarket tie rod is required to prevent interference at full turn. For a steering stabilizer, you need a stud-style trac bar bolt; Currie names FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01 as options.

Does a locking front differential need extra care?

Yes. A locker can cause binding or a hop in turns on pavement when it is engaged, so it is best used when extra traction is needed. Keep the front fluid at the correct level and inspect the axle seals regularly, since a locking unit puts more load on the internal parts.
