Select your vehicle

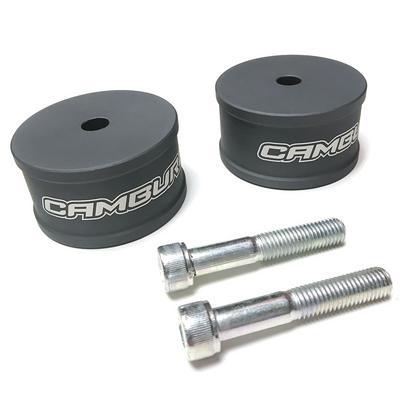

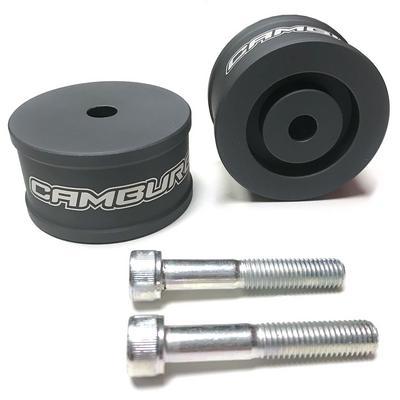

Camburg Ford Raptor Rear Bump Stop Spacer Kit – CAM-120026

Camburg Engineering

Shop Ford F-150 Bump Stop Spacers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear bump stop spacer kit for 2017–2020 Ford F-150 Raptor
  • Relocates the factory rubber bump stop so the shock is not bottomed out
  • Machined 6061 aluminum, bead blasted, anodized and laser etched
  • Includes bump stop spacers and metric hardware
  • Used with Deaver leaf springs or after removing the factory block

Description

Overview

The Camburg CAM-120026 is a rear bump stop spacer kit for the 2017–2020 Ford F-150 Raptor. It relocates the factory rubber bump stop so the stop contacts the housing correctly when the rear suspension compresses, which protects the shocks from being bottomed out.

The spacer is needed when installing Deaver leaf springs or when the factory block is removed, because the factory bump stop otherwise sits in the wrong place. The spacer is CNC machined from 6061 aluminum and finished by bead blasting, anodizing and laser etching.

Key features

  • Bump stop spacers that move the factory stop to the correct contact point
  • CNC machined 6061 aluminum
  • Bead blasted, anodized and laser etched finish
  • Metric hardware included
  • Protects the shocks from bottoming out before the suspension does

Choosing a Spacer Setup

A rear bump stop sets the point where the suspension stops compressing. When the factory block is removed or the truck is changed to leaf springs, the original stop no longer lands where the housing expects it, and a spacer restores that contact point. Before buying, measure the gap between the stop and the housing with the suspension at full compression so you know how much the spacer needs to cover.

Spacers are often installed alongside other suspension changes, such as new shocks or a revised rear lift. Each change can move the contact point, so recheck the stop after any of them. Anodized aluminum resists grime well while the finish is intact, but a scuffed or chipped surface should be cleaned and inspected for corrosion.

  • Check bump stop contact at full compression after any suspension change
  • Inspect spacers for cracks, corrosion or loose hardware
  • Retorque metric fasteners after the first few drives

Specifications

Brand Camburg Engineering
Part number CAMCAM-120026
Material 6061 aluminum
Finish Bead blasted, anodized and laser etched
Hardware Metric
Fitment Direct fit

Vehicle fitment

It fits the 2017–2020 Ford F-150 Raptor.

Other F-150 trims and model years are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The spacer is required when the factory block is removed or when Deaver leaf springs are installed, because the factory rubber bump stop must be relocated so it does not bottom out the shock. For serious off-road use, Camburg also offers an air bump stop kit, which provides additional bottoming control.

What’s included

Bump stop spacers and the metric hardware needed to mount them.

Fitment

VehicleYearsTrims
Ford F-1502017–2020Raptor

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the CAM-120026 fit a 2019 F-150 Raptor?

Yes. It fits the 2017–2020 Ford F-150 Raptor, which includes 2019. Other F-150 trims and model years are not covered.

Why is a spacer needed on the rear?

When Deaver leaf springs are installed or the factory block is removed, the factory rubber bump stop must be moved so it contacts the housing correctly and does not bottom out the shock.

What hardware comes with it?

The kit includes the metric hardware needed to mount the bump stop spacers. Check the package contents against your installation before starting.

How can I tell if the rear bump stop needs attention?

Look for shock damage, a harsh rear end at full compression, or contact marks where the stop meets the housing. Any of these means the stop position should be checked and corrected before the truck is driven hard off road.
