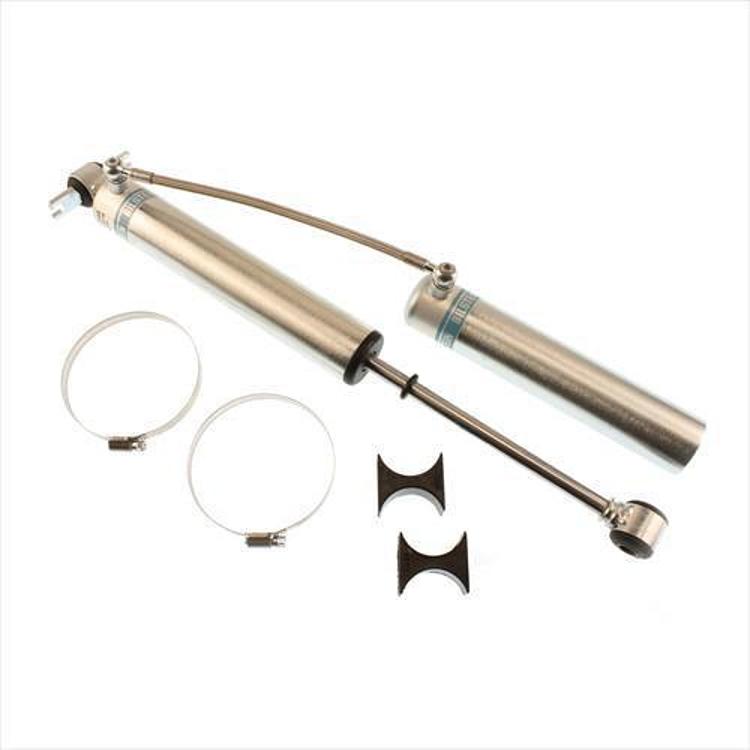

Bilstein 5160 Series Reservoir Shock Absorber – 25-193145

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 5160 Series rear remote reservoir shock, part number 25-193145
  • 46mm digressive piston with self-adjusting deflective disc valving
  • Zinc plated finish; designed for vehicles with a 3 inch lift
  • Collapsed length 13.44 in (341.3mm), extended 22.00 in (558.8mm)

Description

Overview

Bilstein 25-193145 is a rear 5160 Series remote reservoir shock, a zinc plated gas-charged monotube unit with a 46mm digressive piston. It is aimed at vehicles with a 3 inch lift, and Bilstein names no specific year, make or model.

The reservoir adds cooling capacity and shock travel, and the damper uses self-adjusting deflective disc valving. Stated lengths are 13.44 inches collapsed and 22.00 inches extended.

Key features

  • Rear position
  • 46mm monotube with digressive piston
  • Self-adjusting deflective disc valving
  • Remote reservoir for cooling and travel
  • Zinc plated finish
  • Designed for vehicles with a 3 inch lift; lift range w/0 – 3 in.

Rear shock installation checks

Rear shocks carry axle load and often sit closer to the frame and fuel system than front units. Before installing, check the upper and lower mounts for wear, and confirm the shock eyes or studs are not bent. Rear reservoirs need clearance from the axle housing, brake lines and crossmembers, so set the position with the suspension at ride height.

Once the shock is in, cycle the suspension by hand and watch the hose and reservoir through the full range. A rear hose that rubs during compression will wear through quickly on rough trails. Recheck the mounting bolts after the first few drives.

  • Check mounts and eyes for wear before fitting
  • Set the reservoir with the suspension at ride height
  • Watch the hose through full compression

Specifications

Brand Bilstein
Part number 25-193145
UPC 651860667096
Shock series 5160 Series
Position Rear
Piston 46mm digressive
Valving Self-adjusting deflective disc
Finish Zinc plated
Charge Gas charged
Collapsed length 13.44 in (341.3 mm)
Extended length 22.00 in (558.8 mm)
Lift height w/0 – 3 in. Lift
Fitment Direct fit

Vehicle fitment

This rear shock is a direct-fit design, so confirm the fit for your truck or SUV’s year, model and trim before ordering. The lift height should match the 3 inch lift range.

The 3 inch lift wording is the reference point for this rear shock; a different lift height falls outside what is described. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Check the package contents against your installation before starting.

SKU: BIL25-193145 Category:

Specification

Shipping weight 7.08 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Is 25-193145 a front or rear shock?

It is a rear shock in the Bilstein 5160 Series. It is designed for vehicles with a 3 inch lift, with a lift range of 0 to 3 inches.

What is the piston size on part 25-193145?

The shock uses a 46mm digressive piston with self-adjusting deflective disc valving. The remote reservoir is meant to add cooling capacity and shock travel.

Does 25-193145 come with mounting hardware?

Confirm before installing. Check the package contents when the shock arrives, and confirm the mounts match your truck or SUV. Hardware varies by application, so compare each bracket and bolt with your existing parts.

Does a rear reservoir shock need a different setup than a front one?

The mounting points differ, and rear shocks often carry more load from the axle. Check the upper and lower mounts and the reservoir position before installing, since the rear hose can catch on crossmembers.
