Bilstein 5160 Series Reservoir Shock Absorber – 25-242539

Bilstein

Shop Toyota Tacoma Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 25-242539 5160 Series reservoir shock absorber for the rear right position, 0 to 1.5 in. lift.
  • Fits 2005–2018 Toyota Tacoma in several trims.
  • Collapsed length 14.22 in, extended length 24.06 in, travel 9.84 in.
  • Remote reservoir, mono tube, 14mm shaft, zinc plated finish.
  • Includes upper mount kit and reservoir mount kit; boot not included.

Description

Overview

The Bilstein 25-242539 is a 5160 Series reservoir shock absorber for the rear right position, with a lift range of 0 to 1.5 inches. It is a direct fit for the 2005–2018 Toyota Tacoma and installs in the stock shock mounting spot without cutting or welding.

The shock pairs a monotube body with a remote reservoir, giving it more oil capacity and cooling than a single-tube shock. Digressive valving provides full damping right away, and the floating dividing piston in the reservoir supports extra wheel travel. Reservoir mounting is designed for each vehicle application, so the included mounting kit matters.

Key features

  • Rear right position with a 0 to 1.5 inch lift range.
  • Remote reservoir for added oil capacity and heat dissipation.
  • Digressive valving system for immediate full damping capability.
  • Floating dividing piston in the reservoir for more shaft movement.
  • Reservoir mounting configuration designed for each vehicle application.
  • Mono tube body with a 46mm ID smooth body (non-coilover).
  • Zinc plated finish from Bilstein’s Triple-C Technology line.

Choosing a rear shock setup

Rear shocks on a pickup carry a large share of the load when the bed is loaded, so matching the pair matters. Replacing one side while the other is worn can leave the truck pulling or riding unevenly. Many owners replace both rear shocks together, then check the bushings and springs at the same time for consistent behavior.

A remote reservoir changes the packaging more than the damping. Pick a reservoir location that keeps the hose clear of the exhaust, the tires and the frame rails. Confirm the mounting kit fits the spot you choose before the old shock comes out, since reservoir placement is the step most likely to slow an install. Gas charged units hold pressure, so wear eye protection and support the axle before loosening the lower mount.

Specifications

Brand Bilstein
Part number 25-242539
UPC 651860756929
Series 5160 Series
Position Rear right
Fitment type Direct fit
Lift range 0-1.5 in. lift
Collapsed length 14.22 in.
Extended length 24.06 in.
Travel length 9.84 in.
Lower mount Eye 12.1mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Reservoir Yes
Gas charged Yes
Finish Zinc plated
Boot included No
Mounting parts included Upper mount kit and reservoir mount kit

Vehicle fitment

It fits the rear right position of the 2005–2018 Toyota Tacoma in the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport and X-Runner trims. Years outside 2005 to 2018 are not covered.

Other Tacoma model years and the left rear position are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The reservoir uses its own mounting kit, so choose and clear the reservoir location before installing. The upper mount kit and reservoir mount kit are included, and the detailed instructions cover the mount sequence. Gas-charged shocks are under pressure, so wear eye protection when removing the old shock.

What’s included

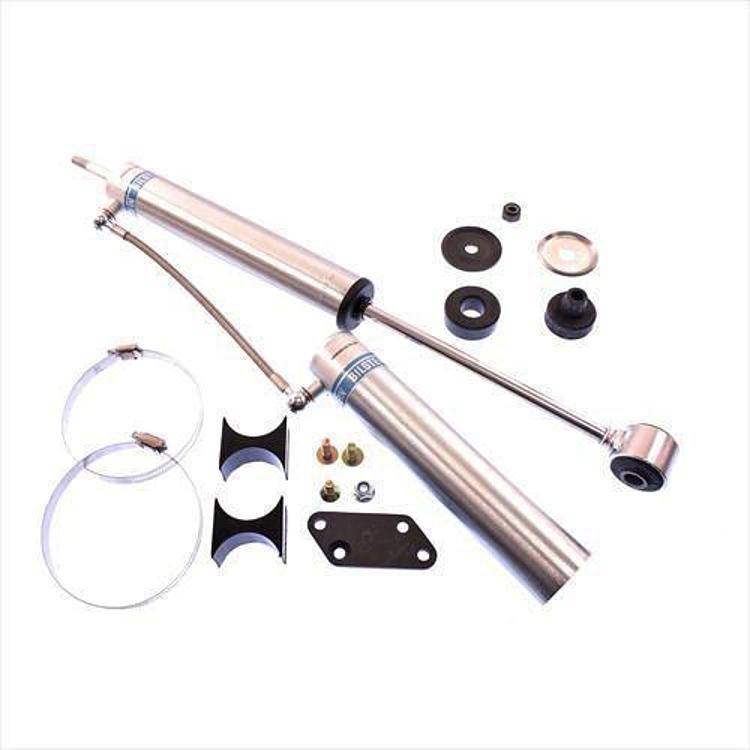

The kit includes an upper mount kit, a reservoir mount kit and detailed instructions.

Not included: The boot is not included with this shock.

SKU: BIL25-242539 Category:

Specification

Shipping weight 7.60 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2018Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, X-Runner

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the Bilstein 25-242539?

It is a Bilstein 5160 Series reservoir shock absorber for the rear right position. It has a 14mm shaft, a mono tube design, a remote reservoir and a 0 to 1.5 inch lift range, and it fits 2005–2018 Toyota Tacoma trucks.

Does it fit a 2005 Toyota Tacoma?

Yes, the manufacturer fitment list includes the 2005–2018 Toyota Tacoma in several trims, including Base, Limited, SR5 and TRD Pro. Confirm your vehicle's year, model and trim before ordering, because the list does not cover other years.

Is this the left rear shock too?

No. This part number is for the rear right position only. Check which side and position your existing shock occupies before ordering a replacement, since the left side is not covered here.

What hardware is included?

The kit includes an upper mount kit and a reservoir mount kit, along with detailed instructions. No boot is included.

Should both rear shocks be replaced together?

Replacing both rear shocks at once keeps damping and ride height matched side to side. If only one side is replaced, the new shock may feel firmer than the old one. Inspect the opposite side for leaks, worn bushings and sagging springs before deciding.
