Bilstein 5160 Series Remote Reservoir Shock Absorber – 25-275124

Bilstein

$232.86In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front right remote reservoir shock for 1998–2007 Toyota Land Cruiser
  • Monotube reservoir design, 46mm body
  • Velocity sensitive digressive valving
  • Designed for the front right position

Description

Overview

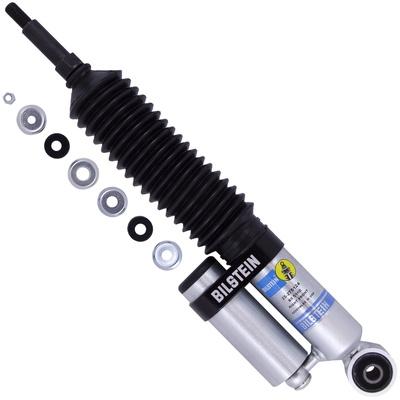

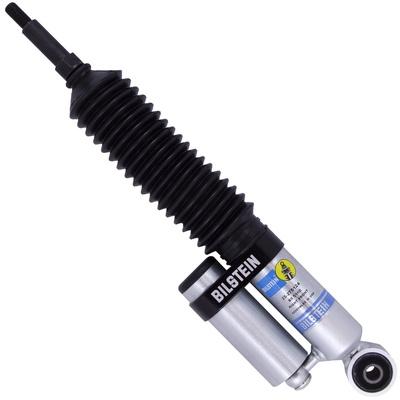

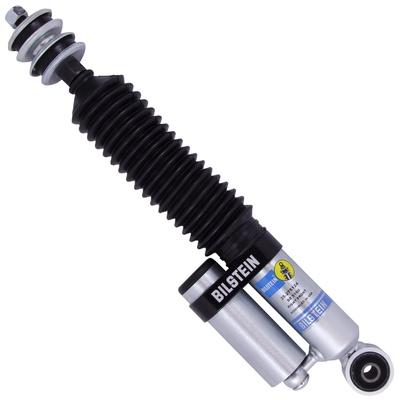

The Bilstein 5160 Series 25-275124 is a front right remote reservoir shock absorber for the 1998–2007 Toyota Land Cruiser. The reservoir is a separate chamber connected to the shock, and it gives increased cooling capacity and wheel travel.

The unit has a 46mm body and a monotube design for consistent damping. Its valve settings are velocity sensitive and digressive, and they are tuned for each application. Each shock has a 360 degree swivel banjo hose fitting for a low profile installation.

This shock is for the front right corner only, so it is sold as one side of a pair. Check the position marking against the right side of your truck before fitting it. Route the reservoir hose clear of the steering and suspension parts, and compare the mounting points with the damper you are replacing before ordering.

Key features

  • Front right position
  • Monotube reservoir design
  • 46mm body diameter
  • Velocity sensitive digressive valve settings
  • 360 degree swivel banjo hose fitting

Reservoir hose and routing

The reservoir hose is the part of a remote reservoir shock that most affects installation. It has to run from the reservoir to the shock body without pinching, rubbing or stretching at full steering or suspension movement. A clear route keeps the hose from wearing through, and it lets the shock move freely through its range.

Front corners see the most steering movement, so the hose route should be checked with the wheels turned from lock to lock. Use the existing clips and mounting points where possible, and avoid adding sharp bends. When replacing a unit, compare the old and new hose positions so the reservoir sits where the original layout intended. Recheck the route after the first drives off road.

  • Turn the steering fully each way during the fit check
  • Keep the hose away from exhaust and heat sources
  • Use existing clips to avoid rubbing
  • Recheck the route after the first off-road trip

Specifications

Brand Bilstein
Part number 25-275124
Shock series 5160 Series
Position Front right
Shock type Monotube reservoir
Body diameter 46mm
Hose fitting 360 degree swivel banjo
Gas charge Gas charged
Fitment type Direct fit

Vehicle fitment

It fits the 1998 through 2007 Toyota Land Cruiser.

Land Cruiser models outside 1998 to 2007, and other Toyota models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One front right remote reservoir shock absorber.

Installation notes

Route the reservoir hose clear of moving parts and confirm the front right position before tightening the mounts.

Fitment

VehicleYearsTrims
Toyota Land Cruiser1998–2007Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-275124 fit a 2003 Toyota Land Cruiser?

Yes. This front right remote reservoir shock fits the 1998 to 2007 Toyota Land Cruiser, so a 2003 model is covered. Confirm the position before ordering.

Is this shock sold as a pair?

No. It is made for the front right position only, so a front pair needs the left unit as a separate order. Confirm each position against your truck before you buy.

What is the remote reservoir for?

The remote reservoir is a separate chamber connected to the shock by a hose. It gives increased cooling capacity and wheel travel compared with a traditional shock absorber.

How do I check the reservoir hose during service?

Look for cracks, rubbing marks and loose clamps along the full hose run, especially near the steering and suspension parts. Turn the steering through its range to confirm the hose stays clear. Replace any hose that is chafed, cracked or stiff.
