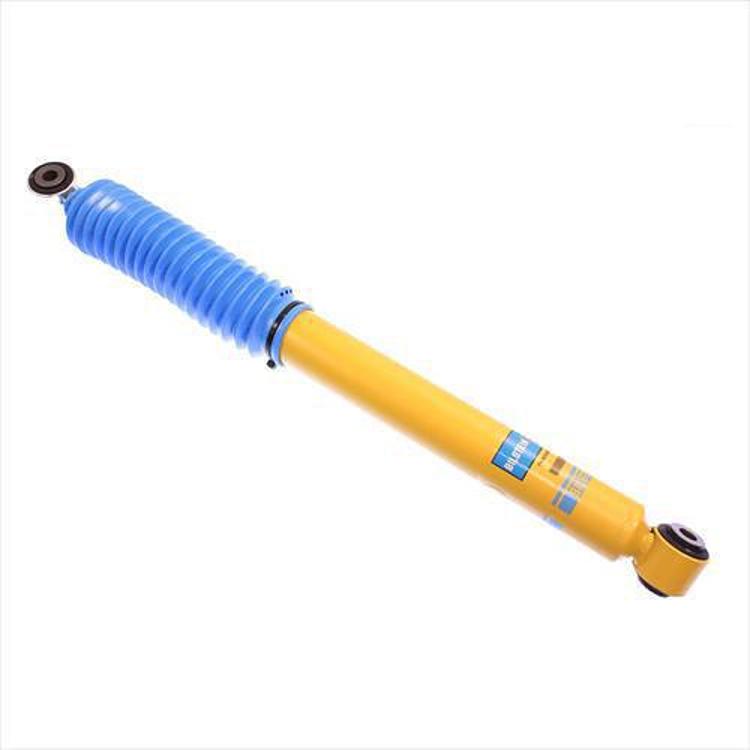

Bilstein 4600 Series Shock Absorber – 24-116244

Bilstein

$88.07In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 4600 Series rear shock absorber, part number 24-116244
  • Fits the 2004–2015 Nissan Titan (LE, PRO-4X, S, SE, SL, SV, XE)
  • Monotube gas-charged body with a 2 in. body diameter
  • Boots included; no reservoir

Description

Overview

The Bilstein 4600 Series Shock Absorber, part number 24-116244, is a rear shock that fits the 2004–2015 Nissan Titan in the LE, PRO-4X, S, SE, SL, SV and XE trims. It is a monotube, gas-charged unit with a 2 in. body diameter, built for full-size trucks and SUVs that need steady damping under load and on the road.

In a monotube shock the working oil and gas share one tube, which gives better heat transfer than a twin-tube layout. The dividing piston lets the oil expand as it warms, so the shock keeps its damping force instead of foaming. The piston head can be tuned separately for compression and rebound, giving comfort and control together. Boots are included and there is no reservoir, so the unit is a compact, self-contained rear damper.

If you are replacing a rear shock on a Titan in one of the trims above, check the 2 in. body diameter and the rear position against the part you are removing.

Key features

  • Monotube body with gas charge for steady damping as temperatures rise
  • Dividing piston lets the oil expand as heat builds
  • Seamless extrusion tube, which Bilstein says has tight peak-to-valley tolerance
  • Piston head tuned separately for compression and rebound
  • Rear position, direct fit, 0 in. lift or drop
  • Boots included
  • Fewer parts than many twin-tube and road-sensing designs.

Titan rear shock upkeep

Rear shocks on full-size trucks carry more weight when loaded, towing or crossing washboard surfaces, so their condition has a direct effect on the rear end. Look for oil on the outside of the body, a rear that keeps bouncing after a bump, or uneven rear tire wear. Because the Titan’s rear damping supports the load, a single worn shock can change how the truck handles on the road.

Gas-charged monotube designs hold their damping well over time, but the seals, boot and mounting bushings still wear. Keep the boot clean, rinse road salt and grit from the body, and check mounting bolts after the first few weeks of use. Where one side has worn, a matched pair helps both sides of the axle respond the same way.

Specifications

Brand Bilstein
Part number 24-116244
UPC 651860565255
Shock series 4600 Series
Type Monotube
Body diameter 2 in.
Position Rear
Hydraulic / gas charged Gas charged
Fitment type Direct fit
Lift height 0 in. lift or drop
Finish Yellow
Reservoir No
Boots included Yes

Vehicle fitment

It fits the 2004–2015 Nissan Titan in the LE, PRO-4X, S, SE, SL, SV and XE trims. Other Nissan models are not covered.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear shock absorber with boots.

Not included: Mounting hardware is not included.

SKU: BIL24-116244 Category:

Specification

Shipping weight 5.75 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Nissan Titan2004–2015LE, PRO-4X, S, SE, SL, SV, XE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does part number 24-116244 fit a 2004–2015 Nissan Titan?

Yes, it fits the 2004–2015 Nissan Titan in the LE, PRO-4X, S, SE, SL, SV and XE trims. Other Nissan models are not covered, so confirm your year, model and trim before ordering.

Is this a front or rear shock?

It is a rear shock, with a direct-fit monotube design, a 2 in. body diameter and no lift or drop.

Does this shock come with boots?

Yes. Boots are included with this shock, and it has no reservoir. The body is a gas-charged monotube finished in yellow, so the boots do not need to be bought separately.

How do I know if a rear shock needs replacing?

Common signs include excessive bounce after bumps, a nose-heavy feel when braking, fluid leaking from the body and uneven rear tire wear. Push down on each rear corner and release it; repeated rocking points to worn damping.

Does a monotube shock need a reservoir?

No. A monotube shock places oil and gas in one tube, so it does not use a separate remote reservoir. Its damping is maintained by the dividing piston, which lets the oil expand as it heats.
