Bilstein 8100 Series Remote Reservoir Shock Absorber – 25-304909

Bilstein

$542.97In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front left remote reservoir shock for 2020–2026 Jeep Gladiator
  • 60mm large bore body built from billet components
  • Monotube design with velocity sensitive digressive valve settings
  • Eyelet top and bottom mounts

Description

Overview

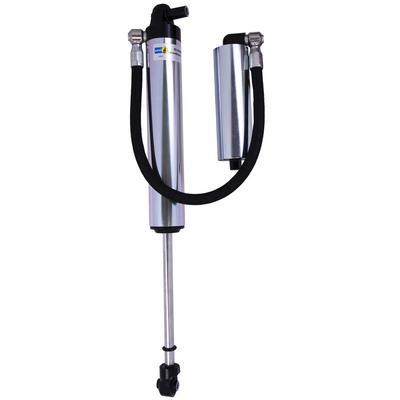

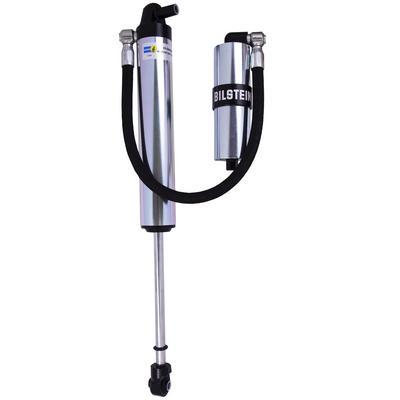

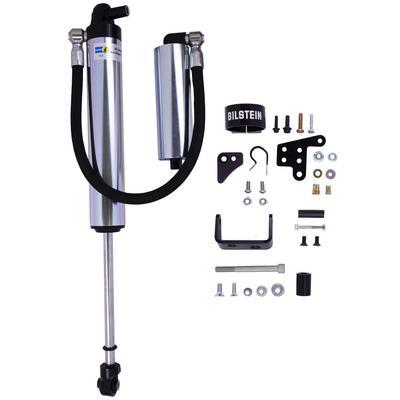

The Bilstein 8100 Series 25-304909 is a front left remote reservoir shock absorber for the 2020–2026 Jeep Gladiator. It is a 60mm large bore direct-fit shock for lifted trucks and SUVs, and it has eyelet mounts at both the top and bottom.

The body is built from aerospace quality billet components. Its 60mm inside diameter gives a higher oil volume, which helps control heat over long distances on rough road surfaces. The monotube design uses velocity sensitive digressive valving tuned for each application, and the large 60mm piston adds comfort and control in all driving conditions.

Each 8100 unit uses a remote or piggyback reservoir for an easy, hassle-free installation. This part covers the front left position only, so confirm the side on your truck before ordering. Compare the installed length of your current front shock before ordering and allow room for the reservoir.

Key features

  • Front left position
  • 60mm large bore body from billet components
  • Remote or piggyback reservoir for higher oil volume
  • Monotube design with velocity sensitive digressive valving
  • Eyelet top and bottom mounts

Remote reservoir shocks in practice

A remote reservoir shock separates the reservoir from the main body, which gives the oil more room and helps the damper hold steady when the truck is driven hard for long periods. Reservoir placement is a bigger part of the install than with a standard shock, so plan the route before the unit goes on the truck.

Check clearance at full compression and full extension, because the reservoir and hose must stay clear of tires, frame rails and steering components. Front shocks on a lifted truck often work with new springs and bump stops, so review the setup as a whole. Replacing both front shocks together helps the truck stay balanced, and inspect the eyelet bushings during the job.

  • Route the hose away from the exhaust
  • Confirm clearance at full steering lock
  • Replace worn eyelet bushings during install

Specifications

Brand Bilstein
Part number 25-304909
Shock series 8100 Series
Position Front left
Shock type Monotube reservoir
Body diameter 60mm
Top mount Eyelet
Bottom mount Eyelet
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2020–2026 Jeep Gladiator, front left position.

Gladiator models from before 2020, the Jeep Wrangler, and the front right position are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One front left remote reservoir shock absorber.

Installation notes

Check the reservoir and hose clearance on your truck before mounting, and confirm you have the left position before ordering.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–202680th Anniversary, Altitude, High Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-304909 fit a 2021 Jeep Gladiator?

Yes. It fits the 2020 to 2026 Jeep Gladiator, so a 2021 model is covered. Confirm the front left position before ordering.

Is this shock a right side unit too?

No. The 25-304909 is the front left shock. The front right unit is a separate part number, 25-304916, and the two are sold individually.

What is the advantage of the 60mm body?

The 60mm inside diameter gives a higher oil volume, which helps control heat over long distances on rough road surfaces. The large 60mm piston adds comfort and control.

Do remote reservoir shocks need more maintenance than standard shocks?

They have a reservoir and hose to check in addition to the shaft and seals. Check the fittings for seepage and the hose for chafing after harsh use.
