Overview

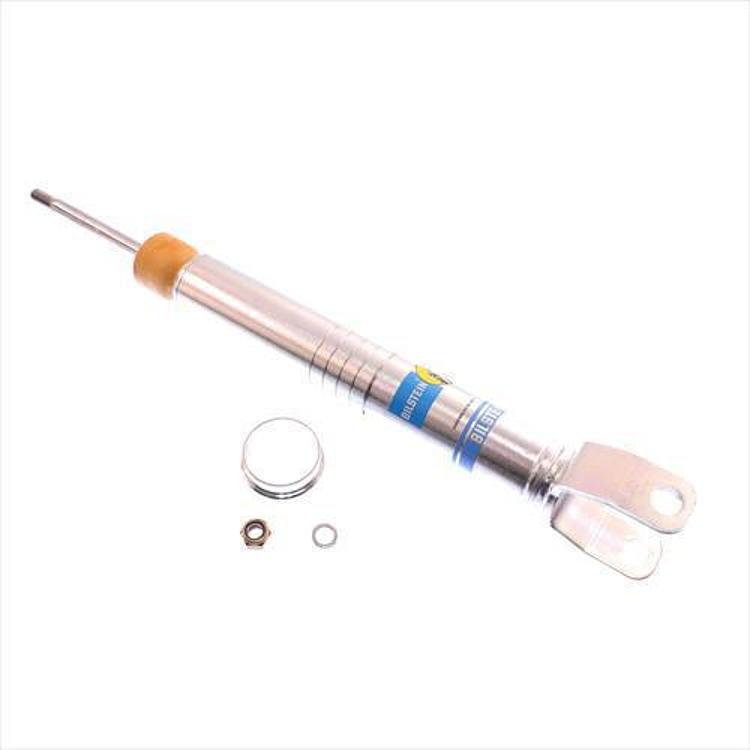

The Bilstein 24-187367 is a 5100 Series ride height adjustable front shock for the 2009–2010 Dodge Ram 1500 and the 2011–2018 Ram 1500. Bilstein designed it to correct factory nose-down rake, which allows larger wheels and tires while keeping the front end level from front to rear.
The shock installs like a factory replacement. Snap ring grooves on the body set the front lift across a range of 0 to 2.75 in., and the OEM spring seat is repositioned to give the factory spring more preload. The design also offers increased wheel travel that accommodates a 33-inch tire.
Key features
- Snap ring grooves on the body set the front lift
- Corrects factory nose-down rake for a level stance
- Repositioned OEM spring seat adds preload to the factory spring
- Monotube gas pressure construction
- Increased wheel travel for a 33-inch tire.
- More practical than strut extension or spring pre-load spacer kits.
- Zinc plated finish
Front lift and steering geometry
Raising the front end changes the geometry that the steering and suspension depend on, including caster and camber. Even a modest change in ride height can shift how the truck tracks and how evenly the front tires wear. A ride height shock aims to restore a level stance, but the front end still needs to be measured once the work is complete.
Front ride height shocks are often installed alongside a new alignment and sometimes new tie rod ends, since those parts take the new angles. Check the wheel bearings and the upper control arm bushings during the same visit. Taking care of these parts at the same time helps keep steering centered and tires wearing evenly.
- Schedule an alignment after installation
- Inspect tie rod ends and bushings
- Check tire wear after the first few hundred miles
- Confirm the boot needs for your setup
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187367 |
| UPC | 651860623382 |
| Shock series | 5100 Series |
| Position | Front |
| Fitment type | Direct Fit |
| Lift height | w/0 – 2.75 in. Lift |
| Collapsed length | 15.12 in |
| Extended length | 21.4 in |
| Travel length | 6.28 in |
| Lower mount | Clevis |
| Upper mount | Stem |
| Shaft diameter | 14 mm |
| Body | 46mm ID snap ring grooved body (coilover) |
| Internal design | Mono tube |
| Reservoir | No |
| Finish | Zinc plated |
| Boot included | No |
| Hydraulic / gas charged | Gas Charged |
Installation notes
Because the design changes front ride height, have the front alignment checked after installation.
Vehicle fitment
Fitment is for 2009–2010 Dodge Ram 1500 (Laramie, SLT, ST, Sport, TRX4) and 2011–2018 Ram 1500 (Big Horn, Express, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT, ST, Sport, Tradesman).
The list does not include Ram 1500 model years from 2019 on, Ram 2500 or 3500 trucks, or earlier Dodge Ram 1500 years. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The shock absorber. The boot is not included. Check the package contents against your installation before starting.
