Overview

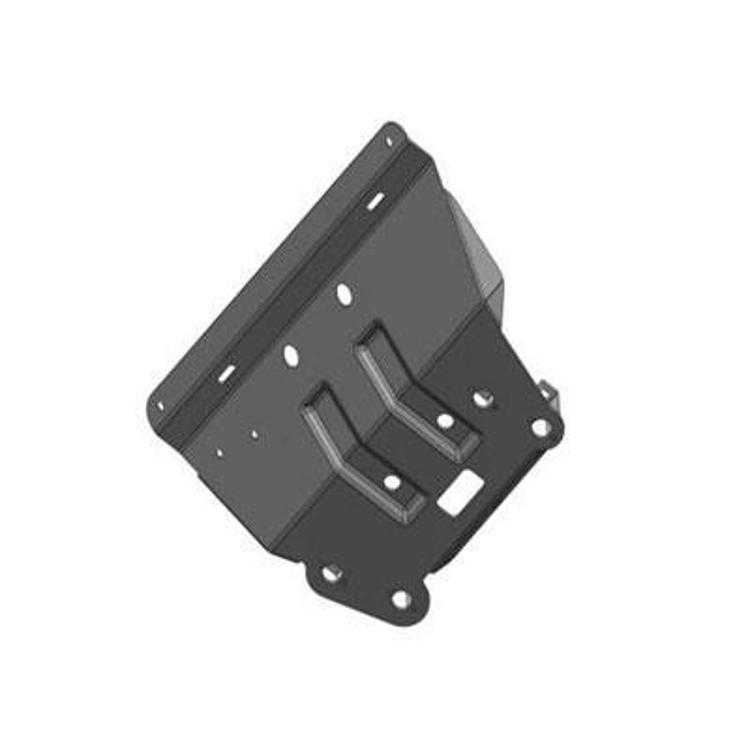

The ARB Under Vehicle Protection Skid Plate, part number 5421100, is a set of pressed and folded 3mm steel panels that guard the steering, engine oil pan, transmission and transfer case underneath Toyota SUVs. It was ARB’s first skid plate system developed for SUVs, and this version fits the Prado 120 and 150, the 4Runner and the FJ Cruiser.
The panels bolt to the chassis and come off for servicing, with recessed bolts in the areas most likely to be damaged. The transmission panel has a two-position mounting bracket to suit petrol and diesel engines, and it tapers toward the rear to clear chassis bracing. The system works with ARB bull bars, side rails and steps, Airlocker and OME products.
Key features
- Protects steering, engine oil pan, transmission and transfer case, depending on model
- Pressed and folded 3mm steel panels with zinc plated, powder coated finish
- Securely bolted to the chassis for structural strength
- Recessed mounting bolts keep panels removable even after damage
- Where practical, panels give access to the oil pan drain plug
- Compatible with ARB bull bars, side rails and steps, Airlocker and OME
Choosing an undercarriage system
A full undercarriage system covers several components at once, so the choice depends on which parts you most want protected. Panels under the steering, oil pan, transmission and transfer case each take hits from different angles, and a system built as a set keeps the joins between those panels lined up. Check how the panels overlap at the front and rear before deciding whether a single system covers your driving.
Removable panels matter for anyone who services the vehicle at home. Oil changes, transmission fluid checks and transfer case work all depend on access underneath, and recessed bolts make it easier to take a panel off without rounding fasteners. Pick a system whose panels can be removed, and keep a set of bolts and a torque wrench on hand for reinstalling them.
Compatibility with other accessories is worth planning early. Bull bars, side rails and steps mount to the same chassis areas in many setups, so confirm how the skid mounts sit relative to those accessories before buying them separately. Changing the set of accessories later may require repositioning panel bolts.
- Note which components are most exposed on your trail use
- Confirm panel overlap at front and rear before ordering
- Plan for removable panels if you service the vehicle yourself
- Check the mounting points against bars and steps you already run
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | 5421100 |
| UPC | 9332018006646 |
| Material | 3mm folded steel, zinc plated |
| Finish | Gray powder coat; a silver textured finish is also available |
| Type | Undercarriage skid |
| Protects | Steering, engine oil pan, transmission, transfer case (depending on model) |
| Mounting | Bolted to the chassis with recessed bolts in vulnerable areas |
| Installation | Direct fit, no cutting or drilling required |
Vehicle fitment
It fits the Toyota Prado 120 and 150, the 4Runner and the FJ Cruiser, which share one chassis platform. Confirm fit for your vehicle’s year, model and trim before ordering.
This kit is not the one for the Prado 150 or for the 4Runner with Kinetic suspension. Those vehicles use ARB part number 5421110, which has a different lower bulge in the front panel. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The panels are direct fit and need no cutting or drilling. The oil pan panel includes access to the drain plug where practical, so the oil can be changed without removing the whole panel.
What’s included
The skid panel system with its panels and hardware. Check the package contents against your installation before starting.
Not included: the Kinetic suspension version of the kit (part 5421110), which is a separate product.
