Warn Dana 30 Black Differential Skid Plate – 65443

Warn

Shop Warn Dana 44 Differential Covers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Differential skid plate in 3/16-inch steel, stainless or black powder coat
  • Angled for a tight fit, closed design slides over obstacles
  • Fits high and standard pinion covers
  • Listed by axle type: Dana 25, 27, 30 variants, front and rear

Description

Overview

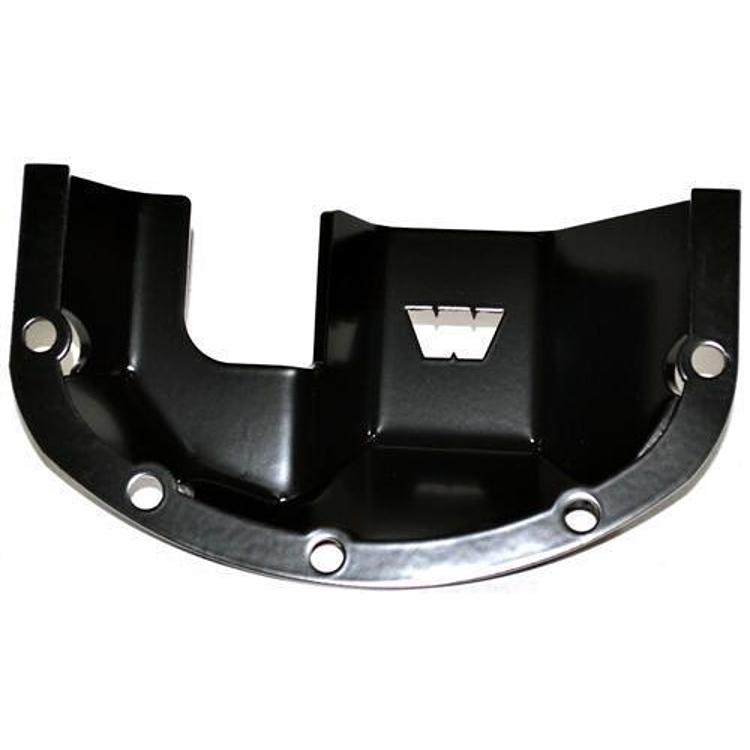

The Warn Dana 30 Black Differential Skid Plate, part number 65443, guards the differential cover on Dana 30 axles. It fits the front and rear locations and several Dana axle types, including Dana 25, Dana 27, and the standard, reverse, TJ and JK versions of the Dana 30.

The plate is angled to fit tightly and add rigidity to the cover. Its closed design slides over objects without snagging. It fits high and standard pinion covers and provides full protective coverage. It is made from 3/16-inch steel in stainless or black powder coat.

Key features

  • Angled for a tight fit and rigidity
  • Closed design slides over obstacles
  • Fits high and standard pinion covers
  • 3/16-inch steel
  • Stainless or black powder coat finish

Pinion cover and axle care

The differential cover sits low on the axle and is one of the more exposed parts of a solid axle setup. A skid plate over the cover spreads the load from rocks and ledges across a broader surface, and an angled shape helps it slide past obstacles rather than catching on them. Because the pinion cover is the part the plate protects, paying attention to its condition is part of the job.

Axle covers are also a common place for leaks, since the gasket and drain plug can weep after hard use. After fitting a skid, check the cover for seepage and keep the fluid at the correct level. Look at the pinion cover bolts for tightness, and inspect the skid edges for bends that could press against the cover. Clean mud from the area after wet runs so it does not trap moisture against the steel.

  • Check the cover gasket for seepage after trail runs
  • Confirm axle fluid level regularly
  • Look for bent skid edges pressing on the cover
  • Recheck cover bolts after rough use

Specifications

Brand Warn
Part number 65443
UPC 1274865443
Position Differential cover
Material 3/16-inch steel
Finish Stainless steel or black powder coat
Axle location Front or rear
Axle types Dana 25, Dana 27, Dana 30 standard, reverse, TJ and JK

Vehicle fitment

It is sized to specific axle covers and is not a universal fit. Match it to your axle type and pinion cover before ordering. Confirm your vehicle’s year, model and trim before ordering.

Match the skid to your axle type and pinion cover before ordering, because the Dana 30 variants are listed separately. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Measure your pinion cover first to confirm it is one of the high or standard covers the skid is designed for.

What’s included

One differential skid plate in the finish you select. Check the package contents against your installation before starting.

SKU: WAR65443 Categories: ,

Specification

Shipping weight 3.50 lbs
Package dimensions 12.50 × 5.50 × 3.50 in
brands

Questions & Answers

Does the Warn 65443 fit a Dana 30 JK axle?

Yes. The Dana 30 JK is one of the axle types this skid is sized for. Confirm your axle type and pinion cover before ordering.

Does the 65443 fit both front and rear axles?

Yes. It fits the front and rear axle locations, and it is sized to specific Dana axle covers rather than to a vehicle model.

Does the 65443 fit a high pinion cover?

Yes. The plate fits both high and standard pinion covers and provides full protective coverage of the cover. The skid is angled to add rigidity to the cover.

What steel is the 65443 made from?

The skid is made from 3/16-inch steel and comes in stainless or black powder coat. Its closed design slides over obstacles without snagging.

How do I know if the axle cover has been damaged?

Look for dents, cracks or fluid seepage around the cover and gasket. Check whether the skid is bent toward the cover or has shifted on its mounts. Any leak or damage should be addressed before the next trip, since low axle fluid can cause wear inside the differential.

Should a differential skid be replaced with the axle cover?

Not always. Replace the skid if it is bent or cracked, and consider the cover if it shows leaks or deep dents. Check the cover and skid fit together before installing, since a new cover can change how the skid sits. Keep the gasket and fluid level in mind during any cover service.
