Overview

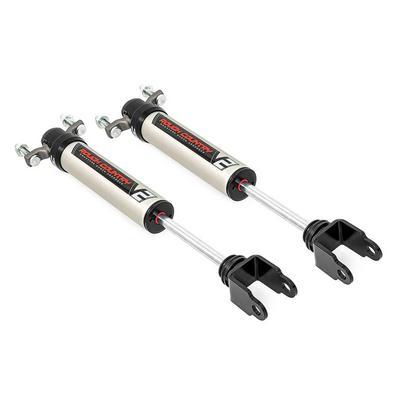

The Rough Country V2 front monotube shock R/C760795_A is a nitrogen-charged monotube shock for 2011–2026 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD trucks with a 0 to 3 inch lift. It uses a bar pin at the top and a clevis at the bottom, and the body is T6061 brushed aluminum.
The V2 floating piston keeps the shock oil and nitrogen apart, which helps avoid cavitation and supports a quick, controlled response. The internal piston is 46mm and high-flow. The shock is designed to be mounted body-up. Check the clevis bottom mount against your lower brackets before ordering, since it is not an eyelet.
Key features
- Monotube body with nitrogen charge
- Internal floating piston separates oil and nitrogen
- T6061 brushed aluminum body with black anodized accents
- 46mm high-flow internal piston
- Body designed to shed heat faster.
- Designed for body-up mounting
Mount checks before installation
The top bar pin and bottom clevis carry the shock’s load, so each connection point should be checked before the truck returns to service. A clevis uses a pin and retaining clip instead of the bushing an eyelet uses, so the pin, clip and bracket holes need a close look.
A small lift in this range is often used on trucks that carry plows, trailers or loaded beds. Under that kind of use, shocks see repeated loading and can wear faster. Inspect the bushings and pins at regular intervals, and replace any that show play, cracks or corrosion. Keep the lower brackets clean so the pin can move freely.
- Check the clevis pin and retaining clip
- Look for play at the bar pin mount
- Clean and lubricate moving pin surfaces
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C760795_A |
| Product line | V2 Series |
| Shock type | Monotube |
| Position | Front |
| Lift height | 0-3 in. |
| Top mount | Bar pin |
| Bottom mount | Clevis |
| Body material | T6061 brushed aluminum with black anodized accents |
| Piston | 46mm high-flow, internal floating design |
| Charge | Nitrogen |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2011–2026 Chevrolet Silverado 2500 HD and 3500 HD and the 2011–2026 GMC Sierra 2500 HD and 3500 HD. It is sized for a 0 to 3 inch lift.
The list covers the HD Silverado and Sierra from 2011 to 2026 only, so 1500 pickups and Ram trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the bar pin top mount and the clevis bottom mount against your existing brackets before installation. Confirm the front ride height is within the 0 to 3 inch range.
What’s included
One front V2 monotube shock, part number R/C760795_A.
