Rough Country GM Front Adjustable Vertex Reservoir Coilovers – 689001

Rough Country

$1,299.95In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 8:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rough Country front adjustable Vertex reservoir coilover for a 6 to 7.5 inch lift on 2007 to 2018 Silverado 1500 and Sierra 1500
  • 8-stage damping and a 2.5-inch body
  • Eyelet bottom mount, extended length 24.92 inches
  • Part number 689001, not for control arm drop kits

Description

Overview

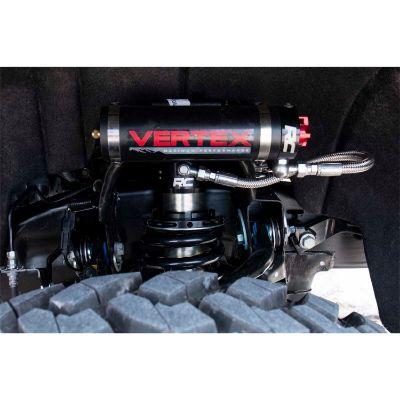

The Rough Country 689001 is a front adjustable Vertex reservoir coilover for 6 to 7.5 inch lifts. It has a 2.5 inch body, an eyelet bottom mount, a reservoir shock type and gas charged construction. It fits the 2007 to 2018 Chevrolet Silverado 1500 and GMC Sierra 1500 in the named trims.

The coilover uses 8-stage adjustable damping set with a dial, so the owner can choose a ride from smooth street driving to firmer damping for off-road use. It is nitrogen charged, with a monotube design and an external reservoir that adds oil capacity and damping sensitivity.

The shock has a 2.5 inch piston and a 22mm chrome hardened piston rod. The piston provides 56 percent more fluid capacity than an average 2.0 reservoir shock. The seal is a 3-stage fortified design, and the honed steel body has a silver finish with a laser-etched logo, matching Vertex decals and CNC-machined billet aluminum accents.

The coilover has a compressed length of 20.59 inches and an extended length of 24.92 inches. It includes a 3-year warranty.

Key features

  • 8-stage adjustable damping with a dial
  • 2.5 inch body and piston
  • 22mm chrome hardened piston rod
  • Nitrogen charged monotube with external reservoir
  • Eyelet bottom mount
  • Silver finish with CNC-machined billet aluminum accents

Choosing a coilover for a lift

A coilover sets both ride height and damping, so the lift and the spring need to be considered together. A taller setup changes suspension geometry, which can affect steering, driveline angles and how the truck handles on the road. Choosing a coilover for a lift means matching its length and travel to the height you plan to run, rather than relying on a general fit.

Eyelet bottom mounts are simple to service, but the bushings wear and should be inspected regularly. Look for cracked rubber, leaking oil and play in the mount during routine checks. Related parts, such as sway bar links, brake lines and bump stops, are often replaced or adjusted when a lift is changed.

  • Measure the lift before choosing the length
  • Inspect eyelet bushings on a regular schedule
  • Recheck bump stops after changing ride height

Specifications

Brand Rough Country
Part number 689001
Shock series Vertex
Shock type Reservoir
Body diameter 2.5 inches
Lift range 6 to 7.5 inches
Compressed length 20.59 inches
Extended length 24.92 inches
Bottom mount Eyelet
Hydraulic or gas charged Gas charged
Position Front
Warranty 3-year
Fitment type Direct fit
Vehicle Chevrolet Silverado 1500 and GMC Sierra 1500, 2007 to 2018

Vehicle fitment

It fits the 2007 to 2018 Chevrolet Silverado 1500 in the Custom, High Country, Hybrid, LS, LT, LTZ, SSV, WT and XFE trims, and the 2007 to 2018 GMC Sierra 1500 in the Base, Denali, Hybrid, SL, SLE, SLT, WT and XFE trims.

It is not compatible with control arm drop kits. Confirm fit for your vehicle’s year, model and trim before ordering, since 2019 and later model years are outside the listed years.

Installation notes

Do not fit this coilover on a truck with a control arm drop kit, because the two are not compatible.

What’s included

The product is a front adjustable Vertex reservoir coilover. Check the package contents against your installation, including the quantity needed for both front positions, before starting.

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002007–2018Custom, High Country, Hybrid, LS, LT, LTZ, SSV, WT, XFE
GMC Sierra 15002007–2018Base, Denali, Hybrid, SL, SLE, SLT, WT, XFE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this coilover work with a control arm drop kit?

No. It is not compatible with control arm drop kits, so a truck with that kit is not a match for this part.

What lift range is this Vertex coilover for?

It is for 6 to 7.5 inches of lift. Check the lift on your truck against that range before choosing the coilover.

Does this coilover fit a 2019 Silverado 1500?

No. It fits the 2007 to 2018 Silverado 1500 and Sierra 1500 in the named trims, so 2019 and later trucks are not covered. Confirm your model year before choosing this coilover.

Are control arm drop kits and coilovers always incompatible?

Not always, but the two must be checked together. A drop kit changes the lower arm position, which can put the coilover mount and travel out of their intended range.

How do I know if the coilover is wearing out?

Watch for oil on the body, a sagging or bouncy front end, and uneven tire wear. Any of these suggests the damping or spring has lost performance and the coilover should be inspected.
