Overview

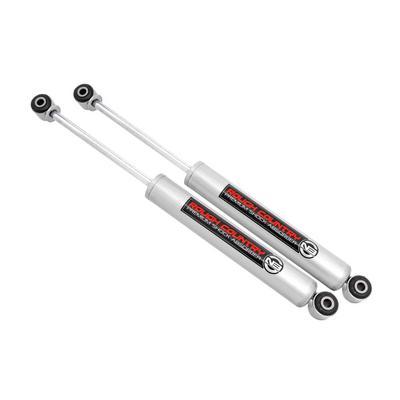

The Rough Country N3 rear shock R/C23209_G is a nitrogen-charged rear shock for 2004–2008 Ford F-150 pickups with a lift of 0 to 6 inches. It uses eyelets at the top and the bottom, and it is sold as a pair.
The shock has an extended length of 30.04 in and a collapsed length of 17.6 in. It uses a 35mm piston and an 18mm chrome-hardened piston rod, with ten-stage variable valving to control damping at different speeds. The military-spec damper fluid is rated to -40 C, and the body is 54mm in diameter.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal
- Rubber bushings and military spec damper fluid
Rear shock upkeep and setup
A rear shock on a half-ton pickup handles weight shifts from cargo, passengers and towing, so the damping has to control both body motion and wheel travel. Nitrogen charge helps keep the damping feel more consistent as the shock warms during use, which matters on longer drives or rough roads.
Pickups with a lift of 0 to 6 inches often run a range of ride heights, so the shock’s extension changes with the setup. Check the rear alignment and ride height after installation. Eyelet mounts rely on a bushing, so confirm the bolts pass cleanly through the bushing and the bracket without binding.
Signs of wear include oil seepage on the body, a bouncy rear end after bumps, and uneven tire wear across the rear. Check the bushings for cracks and the bolts for looseness after the first few weeks of use.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23209_G |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | 0-6 in. |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Extended length | 30.04 in |
| Collapsed length | 17.6 in |
| Body diameter | 54mm |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec, rated to -40 C |
| Finish | Metallic silver paint |
| Warranty | The shock carries a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
It is made for the 2004–2008 Ford F-150 in its FX4, Harley-Davidson Edition, King Ranch, Lariat, STX, XL and XLT models. It is sized for a rear lift of 0 to 6 inches.
The list covers 2004–2008 F-150 pickups only, so 2003 and older F-150s, 2009 and newer models and the Super Duty trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the rear alignment and ride height after installation. Confirm that the eyelet mounts match the rear axle brackets on your truck before ordering.
What’s included
One pair of N3 rear shocks, with one shock for each rear side.
