Overview

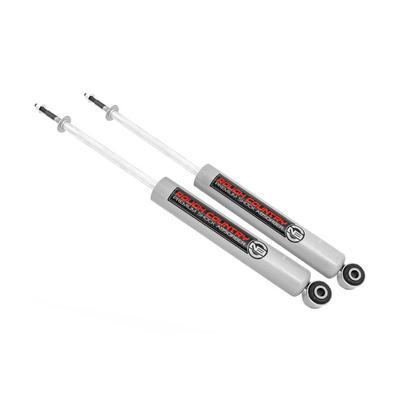

The Rough Country N3 rear shock R/C23223 is a nitrogen-charged rear shock for the Toyota 4Runner and FJ Cruiser, sized for a rear lift of 0 to 3 inches. It fits the 4Runner from 2003 to 2020 and the FJ Cruiser from 2007 to 2014, and it is sold as a pair.
The product line puts the shock in the N3 range, with a 35mm piston, an 18mm chrome-hardened piston rod and a 54mm body. Ten-stage variable valving gives adjustable damping, and the nitrogen charge helps keep it steady during repeated use.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal and rubber bushings
- Military spec damper fluid
Damping for body-on-frame trucks
The 4Runner and FJ Cruiser are body-on-frame trucks, so their rear suspension carries heavier loads and sees more articulation on trails than a unibody vehicle. Rear shocks on these trucks control axle movement on washboard roads, rocky climbs and steep descents. Adjustable valving lets the damping be matched to how the truck is used, with firmer settings for loaded trips and softer settings for mixed road use.
When replacing rear shocks, check the upper and lower mounts for play, look at the rubber bushings for cracking, and make sure the shock is not rubbing on the frame or the spare tire carrier. Oil streaks on the shock body and a rear end that keeps bouncing after a bump both suggest the shock has worn out. Replacing the pair keeps the left and right sides matched.
- Check the upper and lower mounts for play
- Inspect bushings for cracking after trail use
- Confirm the shock clears the frame at full compression
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23223 |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | 0-3 in. |
| Fitment | Direct fit |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Body diameter | 54mm |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec |
| Finish | Metallic silver paint |
| Warranty | Covered by a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
Fits the 2003–2020 Toyota 4Runner in its Limited, Nightshade, SR5, Sport, TRD Off-Road, TRD Pro, Trail and Venture models, and the 2007–2014 FJ Cruiser in its Base and TRD Special Edition trims. It is sized for a 0 to 3 inch lift.
The list covers the 4Runner from 2003 to 2020 and the FJ Cruiser from 2007 to 2014 only. Other Toyota models are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the rear alignment and ride height after the shocks are installed. Confirm the mounting style of the existing rear shocks before ordering.
What’s included
Sold as a pair, with one shock for each rear side.
