Overview

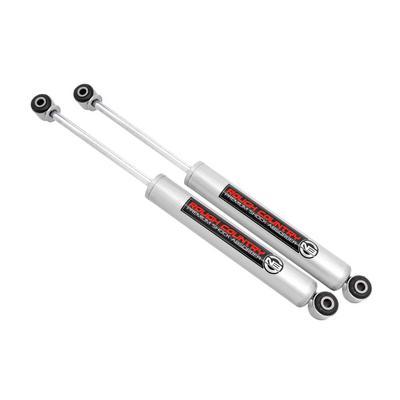

The Rough Country N3 rear shock R/C23216_A is a nitrogen-charged twin-tube shock for 2018–2026 Jeep Wrangler JL models with a lift of 1.5 to 3.5 inches. It uses eyelets at the top and the bottom and is sold as a pair.
It has an extended length of 30.51 in and a compressed length of 17.78 in. It combines a 35mm piston, an 18mm chrome-hardened piston rod and a 54mm body with ten-stage variable valving. It is a twin-tube design, with a fluid reserve held in an outer tube around the working cylinder.
Key features
- Nitrogen charged twin-tube shock
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body to help shed heat
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal
- Rubber bushings and military spec damper fluid
Twin-tube shocks on the JL
A twin-tube shock uses an outer tube around the working cylinder to hold reserve fluid. As the piston moves, oil flows through the valving between the two tubes, and that flow sets the damping. On a Wrangler JL, this design suits daily driving and trail use because the fluid has room to move and cool.
Eyelet mounts at both ends allow the shock to pivot as the axle moves, so the bushings take a lot of the load. At a lift of 1.5 to 3.5 inches, check the rear driveline angle and the ride height after installation. Confirm the mounts line up with your rear brackets before ordering.
Worn shocks show oil seepage along the shock body, a rear end that keeps bouncing after bumps, and uneven rear tire wear. Check the rubber bushings and fasteners after several weeks of trail use, because the Wrangler’s rear suspension flexes often on uneven ground.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23216_A |
| Product line | N3 Performance |
| Shock type | Twin-tube |
| Position | Rear |
| Lift height | 1.5-3.5 in. |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Extended length | 30.51 in |
| Compressed length | 17.78 in |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Body diameter | 54mm |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec, rated to -40 C |
| Finish | Metallic silver paint |
| Warranty | The shock carries a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
It is made for the 2018–2026 Jeep Wrangler JL in both two-door and four-door bodies, across the Willys, Sport, Sahara, Rubicon and Moab models and the 4xe hybrid versions. It is sized for a 1.5 to 3.5 inch lift.
The list covers the JL generation only, so the earlier Wrangler TJ, LJ and JK models and the Gladiator pickup are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the rear alignment and the rear ride height after the shocks are installed. Because the lift range is modest, confirm the eyelet mounts fit your existing rear brackets before ordering.
What’s included
Sold as a pair, with one rear shock for each side of the Wrangler.
