Overview

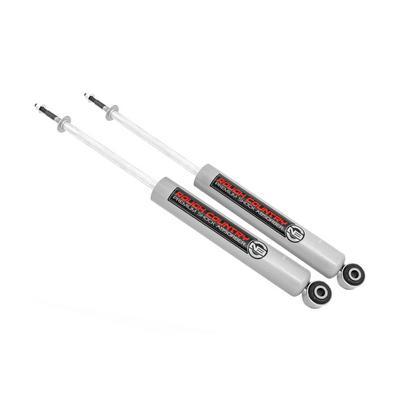

The Rough Country N3 rear shock R/C23269_N is a nitrogen-charged rear shock for 2005–2023 Toyota Tacoma pickups with a lift of 0 to 2 inches. It uses a stud at the top and an eyelet at the bottom, and it is sold as a pair.
The shock has an extended length of 22.9 in and a compressed length of 13.97 in. Its 35mm piston and 18mm chrome-hardened piston rod sit inside a 54mm body, and the ten-stage variable valving adjusts damping for both road and trail use. The stud top mount is the detail to confirm against the upper bracket on your Tacoma.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal and rubber bushings
- Military spec damper fluid
Rear shocks on a lifted Tacoma
A rear shock controls how the axle moves over bumps and during braking, so its damping affects both daily driving and off-road control. When a Tacoma gets a rear lift, the suspension geometry changes and the shock works through a longer range of travel. Shocks that were matched to the stock height may feel too soft or too firm after the lift, which is one reason many owners replace the rears when they change the ride height.
Stud and eyelet mounts need to line up with the upper and lower brackets, so measure the existing shock before you buy. Check the bushings and the mount hardware when the old shocks come off, and look for oil on the shock body, dents in the tube, or a bounce that keeps going after the truck is pushed down. Those signs point to worn damping and a shock that should be replaced.
- Check the upper bracket for wear before reinstalling
- Inspect rubber bushings for cracks or flattening
- Re-torque mounting bolts after the first few drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23269_N |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | 0-2 in. |
| Top mount | Stud |
| Bottom mount | Eyelet |
| Extended length | 22.9 in |
| Compressed length | 13.97 in |
| Body diameter | 54mm |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Finish | Metallic silver paint |
| Warranty | Covered by a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
Fits the 2005 to 2023 Toyota Tacoma across its Base, Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport and Trail models. It is sized for a rear lift of 0 to 2 inches.
The list covers the Tacoma from 2005 to 2023 only, so the 2023 and newer Tacoma and the Toyota 4Runner are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the rear alignment and ride height after installation. Confirm the stud top mount lines up with your upper bracket before the shock is tightened.
What’s included
A pair of N3 rear shocks, supplied as one shock for each rear side.
