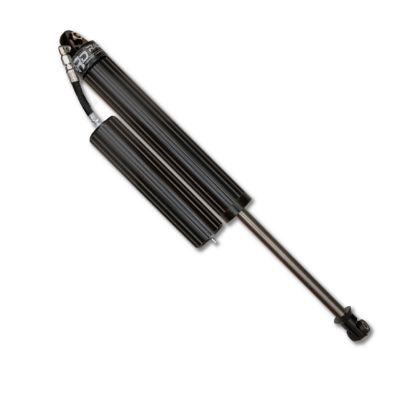

Rock Krawler Rear 2.625-11 Remote Reservoir Shock – RRD07653RR

Rock Krawler

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Krawler rear RRD 2.625 remote reservoir shock for the 2007 to 2018 Jeep Wrangler JK
  • Fluted aluminum body, 1-inch Nitrotec steel shaft and gas charged design
  • Comes with a 6 month warranty against defects in materials and workmanship
  • Part number RKSRRD07653RR

Description

Overview

The Rock Krawler RRD07653RR is a rear RRD 2.625 remote reservoir shock for 2007 to 2018 Jeep Wrangler JK trucks. It is a monotube reservoir shock with gas charged construction, and it is a direct fit for the rear location. It fits two-door and four-door JK trims.

The body is fluted aluminum, which reduces weight while keeping strength. Fluting adds surface area for heat dissipation, and the aluminum cylinders are as strong as or stronger than steel 2.5 inch cylinders. The body has a military grade hard anodized coating for corrosion protection.

A DU bearing supports a 1-inch Nitrotec steel shaft that is bare rather than chrome plated, which avoids the pitting and flaking that could damage the seals. A billet aluminum valve circuit with digressive valving controls damping, and redundant sealing keeps the shock oil in place.

The shock oil is formulated for fade-free damping and smooth rebounds, with a high viscosity index and shear stability to resist fade. A custom moly piston wear band reduces wear on the body. The shock weighs a fraction of comparable 2.5 inch steel bodied shocks and cools twice as fast. All Rock Krawler RRD shocks carry a 6 month warranty against defects in materials and workmanship.

Key features

  • Fluted aluminum 2.625 inch body
  • Military grade hard anodized coating
  • 1-inch Nitrotec steel shaft, bare rather than chrome plated
  • Billet aluminum valve circuit with digressive valving
  • Redundant sealing for the shock oil
  • Custom moly piston wear band

Remote reservoir shocks on a JK

A remote reservoir shock moves the gas and extra oil volume into a separate canister, which keeps the main body cooler and the damping more consistent on long runs. The reservoir needs room to mount and a hose route that stays clear of the frame, tires and suspension arms through full travel. Planning that space before installation avoids rubbing and kinks.

Because the body and reservoir are separate, the hose fittings and mounts deserve regular checks. Look for seepage at the fittings and wear where the hose touches a rub point. A remote reservoir shock with a bare steel shaft benefits from keeping grit off the shaft and seal area during trail use.

  • Plan room for the reservoir and hose
  • Keep the hose clear of rub points at full travel
  • Check fittings for seepage after trail use
  • Wipe the shaft and seal area after muddy runs

Specifications

Brand Rock Krawler
Part number RKSRRD07653RR
Shock series RRD 2.625
Shock type Monotube reservoir
Body diameter 2.625 inches
Hydraulic or gas charged Gas charged
Location Rear
Shaft 1-inch Nitrotec steel, bare
Warranty 6 month, against defects in materials and workmanship
Fitment type Direct fit
Vehicle Jeep Wrangler JK, 2007 to 2018

Vehicle fitment

It fits 2007 to 2018 Jeep Wrangler JK models in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X and X trims.

JL and earlier Wrangler generations are not on the list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear remote reservoir shock is included. Check the number needed for both rear positions against your installation before ordering.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RRD07653RR fit a JL Wrangler?

No. It fits the 2007 to 2018 Jeep Wrangler JK only. Later JL models are not covered, so confirm year and trim against your truck before ordering this rear shock.

How long is the warranty on this shock?

Rock Krawler says all of its RRD shocks come with a 6 month warranty against defects in materials and workmanship. The warranty is against defects in materials and workmanship.

What body diameter does this rear shock have?

The body is 2.625 inches with a monotube reservoir design and gas charged construction. The aluminum body is strong enough to match steel 2.5 inch bodies.

Does a remote reservoir shock need extra mounting room?

Yes. The reservoir sits apart from the body, so allow space for the hose and reservoir in the mounting area. Check that the hose will not rub on the frame or tire at full travel.

How should the reservoir hose be checked over time?

Inspect the hose for kinks, abrasion and cracks at each service. Check the fittings for seepage, since a loose or damaged hose can change how the shock damps.
