Overview

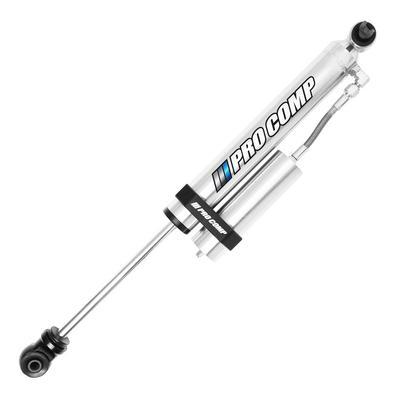

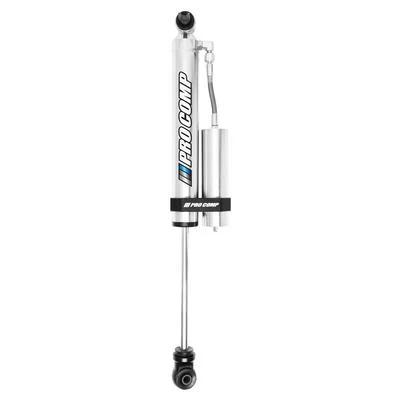

The Pro Comp Pro Runner reservoir shock, part ZXR2124, is a gas charged monotube shock with an external reservoir for lifts of 2.5 to 3.5 inches. It is designed for 2007 to 2018 Jeep Wrangler JK models, and it also covers a 2018 Wrangler JL Unlimited Moab 4-door.

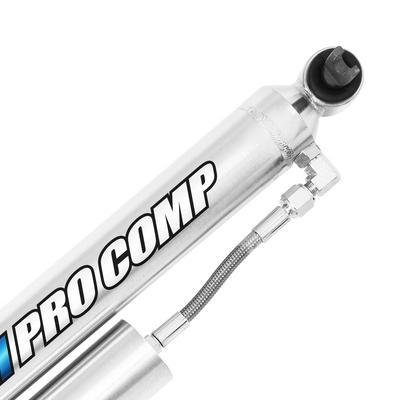

The external reservoir adds fluid capacity, which helps the shock run cooler. A floating piston separates the gas and fluid to eliminate cavitation, and the shock uses multi-stage valving. It is sold individually.
Key features
- External reservoir with increased fluid capacity
- Floating piston separates gas and fluid
- Multi-stage valving
- CNC billet aluminum clamp and lower mount
- 18mm nickel chromium plated shaft

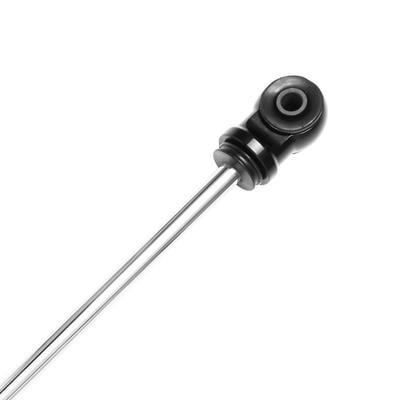

- Rubber shaft bottom out bump stop
- Clear coated zinc brushed finish
Reservoir shock setup
A reservoir shock mounts its body and external tank separately, which means the tank needs open space and a route that avoids heat and moving parts. Before fitting, plan where the reservoir will sit so the hose or body does not rub against the frame, tires or brake lines through the full range of travel.
Setup also depends on the rest of the suspension. Bump stops, control arm bushings and springs all change how far the shock travels, so a shock that works well on one truck may run out of travel on another. Measure the installed length against your current mounts before the work starts.
- Check reservoir clearance against the body and frame
- Compare the installed length with the current mounts
- Inspect the bump stops for wear before the install
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | ZXR2124 |
| Shock series | Pro Runner 2.0 Reservoir |
| Shock type | Monotube reservoir |
| Charge | Gas charged |
| Lift height | 2.5 to 3.5 inches (2.5 inches in the specifications) |
| Position | Driver side rear in the feature list, front left in the specifications |
| Extended length | 24.8 inches |
| Compressed length | 15.1 inches |
| Shaft | 18mm nickel chromium plated |
| Clamp and lower mount | CNC billet aluminum |
| Finish | Clear coated zinc brushed |
| Sold as | Individually |
| Fit type | Direct fit |
Vehicle fitment
It covers 2007 to 2018 Jeep Wrangler (JK) models, both the 2-door and the Unlimited 4-door, and the 2018 Wrangler (JL) Unlimited Moab 4-door.
The list does not cover the Wrangler (TJ), the Wrangler (LJ) or other JL models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The external reservoir needs room to mount, so check clearance against the body and frame before installing. Compare the 24.8 inch extended and 15.1 inch compressed lengths with your current shock mounts.
What’s included
One shock, sold individually. Check the package contents, including any boot, against your installation before starting.
Because the shock is sold individually, a pair for both rear wheels needs two separate orders.
