Rigid Industries Ignite LED Backup Light Kit – Surface Mount (Black) – 20541

Rigid Industries

$174.44In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 1:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

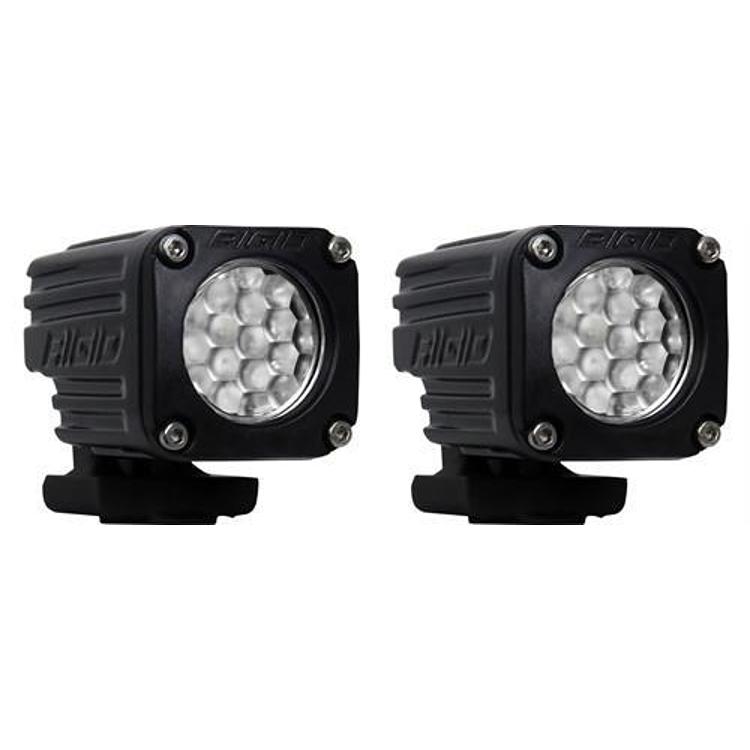

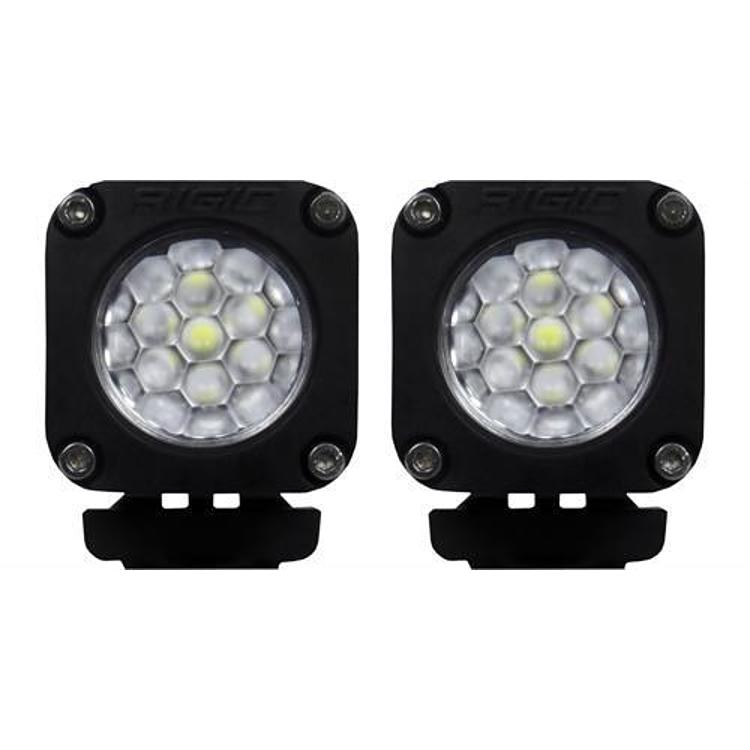

  • Pair of Ignite backup lights with surface mount brackets
  • 1000 raw lumens per light in a 1.4 x 1.4 x 2 inch housing
  • Diffused beam, black finish, IP68 compliant
  • Less than 1 amp per light, low minimum voltage of 6 VDC up to 28 VDC
  • Wiring harness not included

Description

Overview

The Rigid Industries Ignite LED Backup Light Kit (part 20541, surface mount, black) is a pair of small reverse lights that add backup illumination to a vehicle. Most vehicles have weak factory reverse lighting, and Rigid makes the Ignite backup kit to add compact, powerful light behind the vehicle. Each Ignite light gives 1000 raw lumens in a housing that measures 1.4 x 1.4 x 2 inches.

The kit is built from Ignite Series accessory lights and comes with mounting brackets and hardware. The beam is diffused. Each light draws less than one amp, so the lights can often run from the existing backup light circuit. A flush mount version of the same kit is also available.

Key features

  • Pair of Ignite lights with a surface mount bracket
  • 1000 raw lumens per light
  • Diffused light beam pattern
  • Low minimum voltage of 6 VDC, operating up to 28 VDC
  • IP68 compliant
  • Smaller than Rigid’s flush mount Ignite options

Before you mount backup lights

Backup lights are mostly used at low speed, close to people and obstacles, so the beam pattern and mounting height matter more than brightness alone. A diffused beam spreads light over the area behind the vehicle, which helps the driver and anyone standing nearby see the ground. Surface mounted lights stand off the body, so check that the bracket does not catch on a tailgate, trailer hitch or cargo that sits close to the rear.

Wiring is the other check. Tap into the backup circuit only after confirming the existing fuse and wire gauge can handle the added load, even though each light draws under one amp. Use an inline fuse close to the tap, and seal any splice against moisture. Test both lights in reverse before the vehicle is driven on a road, and look at the lens after rough trips to catch cracks or loose brackets.

Specifications

Brand Rigid Industries
Part number 20541
UPC 849774015007
Mount Surface mount, with brackets and hardware
Beam pattern Diffused
Output 1000 raw lumens per light
Size 1.4 x 1.4 x 2 inches per light
Voltage 6-28 VDC
Current Less than 1 amp per light
Color Black
Ratings IP68 compliant
Sold as Pair

Vehicle fitment

This kit is not tied to a specific year, make or model. Confirm fit for your vehicle’s year, model and trim before ordering, and make sure the bracket position clears the rear body before drilling.

Installation notes

A wiring harness is not included. Because each light draws less than one amp, the lights can often be tapped into the vehicle’s existing backup lighting circuit. Use a fuse and check local rules for auxiliary lights before mounting.

What’s included

A pair of Ignite surface mount lights, mounting brackets and related hardware.

Not included: a wiring harness.

SKU: RIG20541 Category:

Specification

Shipping weight 0.60 lbs
Package dimensions 9.00 × 5.50 × 2.50 in
brands

Questions & Answers

Does the Ignite backup kit include a wiring harness?

No. A wiring harness is not included. Because each light draws less than one amp, the lights are often wired into the existing backup light circuit.

Is the Ignite backup kit sold as a pair?

Yes. The kit includes two lights, mounting brackets and related hardware for surface mounting, so one purchase covers both backup light positions on a vehicle.

Can the Ignite backup lights be flush mounted?

Rigid also offers flush mount Ignite backup kits. This kit is the surface mount version, with brackets for mounting on the outside of the vehicle.

How do I keep a backup light kit working reliably?

Keep the lenses clean, since road grime dims a diffused beam quickly. Check the brackets and hardware each season for loose fasteners and corrosion, and look at the wire routing for rub points. Replace a cracked lens or damaged connector before water can reach the electronics.
