Overview

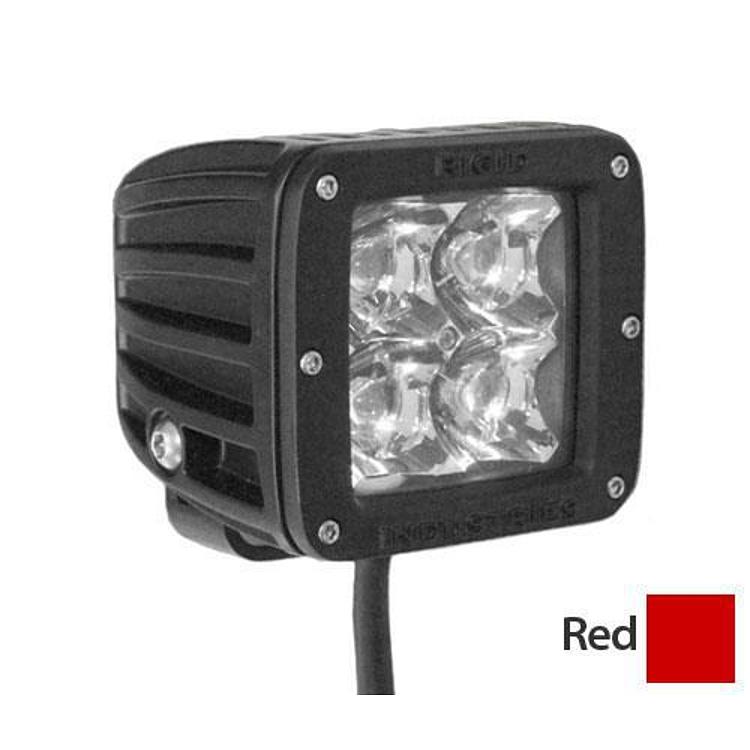

The Dually Series Spot LED Light, sold as a set of two under part number 20223, is a pair of spot lights with a 10 degree spot pattern in red. It is a universal light with no vehicle named for it. The lights switch on and off instantly with no warm-up, produce no UV emissions, and the beam does not vibrate or bounce.
The lens is an unbreakable Lexan lens over a 6061 aluminum extrusion, and it is optically clear. The LEDs are solid state with no moving parts and carry a life span of 50,000+ hours. Halogen lights are rated up to 1,000 hours and xenon lights up to 5,000 hours, and the LEDs are built to withstand shock and vibration better than either, which suits marine and off road conditions.
Key features
- 10 degree spot pattern
- Unbreakable Lexan lens, 100% optically clear
- 6061 aluminum extrusion
- 50,000+ hour life span
- Zero UV emissions
- Plug and play wiring harness with switch
Aiming spot lights
A 10 degree spot pattern concentrates light into a narrow, long beam, which suits seeing far down a trail, along a shoreline or across open water. Aim the lights level with the horizon at rest, then check the aim after the vehicle is loaded, since the nose drops with weight and the beam moves. Two lights in a set are easiest to aim together, using a flat wall or the ground at night as a reference.
Because the lights are used in marine and off road conditions, they are often exposed to spray, mud and salt. Rinse the lens after saltwater use, check the bracket hardware for corrosion, and look at harness connectors for green or white buildup. A switch built into the harness helps keep the lights off when not needed, which limits battery drain. Keep the wiring routed away from heat and moving parts.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 20223 |
| UPC | 815711011692 |
| Series | Dually Series Spot LED Light |
| Beam pattern | 10 degree spot |
| Lens | Unbreakable Lexan, optically clear |
| Housing | 6061 aluminum extrusion |
| Lifespan | 50,000+ hours |
| Switch | Included in the harness |
| Mounting | Bracket kit |
| Color | Red |
| Quantity | Set of two |
Vehicle fitment
This is a universal spot light set and no year, make or model is named. Because the lights are used in marine as well as off road settings, check the mounting spot and the harness route before ordering.
Confirm your vehicle’s year, model and trim before ordering any bracket.
Installation notes
The plug and play harness includes a switch, so the lights can be run from one control. Fuse the supply and check local rules before using spot lights on public roads.
What’s included
Two 10 degree spot LED lights with a plug and play wiring harness and switch, and a bracket kit.
