Overview
The ReadyLift 44-3471 is a 7-inch lift kit for 2014 to 2018 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks with the factory cast steel front suspension. It works with trucks with or without front MagneRide. It fits Silverado 1500 Custom, High Country, LS, LT, LTZ, SSV and WT versions, and Sierra 1500 Base, Denali, SLE and SLT versions. The lift height range is 6 to 7 inches.
The kit keeps the factory turning radius while limiting track width growth to less than 0.5 inch per side. Clam-shell lower strut extensions retain the factory struts, standard or front MagneRide, without strut rotation. TCT lower bushings set the pivot point, and the design maintains the factory ride. The rear uses 3/16-inch fabricated plate steel blocks with built-in bump stop landings and an offset pin that centers the axle. Premium extended length Bilstein rear shocks are included.
Key features
- 7-inch lift for cast steel front suspension trucks
- Clam-shell lower strut extensions
- TCT lower bushings
- Boxed steel front and rear cross members
- Full width front skid plate of 3/16-inch plate steel
- Boxed differential drop brackets of 1/4-inch plate steel
- Fabricated rear blocks with bump stop landings and an offset pin
- Extended length Bilstein rear shocks
Living with a lifted truck
Lifted trucks feel different on the road, with a higher center of gravity and longer suspension travel. Tires with more sidewall flex and a wider track can change steering response, so drive gently until the feel is familiar. Check tire pressures often, since a larger tire changes rolling resistance.
Cast steel front suspension components are heavier than aluminum versions, and the upper and lower joints should be inspected for play at regular intervals. Wheel bearings and axle joint angles also deserve attention when the truck is lifted. Keep a record of the work done so future service follows the new geometry.
- Check tire pressure after installation
- Inspect joints for play at each oil change
- Watch for driveline vibration
- Keep a record of alignment settings
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY44-3471 |
| Lift kit size | 7 inches |
| Lift height range | 6 to 7 inches |
| Front suspension | Factory cast steel |
| Rear shocks | Bilstein 5100 Series, extended length |
| Rear blocks | 3/16-inch plate steel with bump stop landings |
| Tire fit | Up to 35 inches on a 9-inch wide wheel with -12 offset |
| Drive type | 2WD or 4WD, not AWD |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2014 to 2018 Chevrolet Silverado 1500 models in the Custom, High Country, LS, LT, LTZ, SSV and WT versions, and GMC Sierra 1500 models in the Base, Denali, SLE and SLT versions.
It is made for the cast steel front suspension. Trucks with the aluminum front suspension use the 44-3470 kit. Confirm your suspension type, year, model and trim before ordering.
Installation notes
The clam-shell extensions and the differential drop change the front geometry and driveline angles, so an alignment and a driveline check should be done after installation. The rear block offset pin is designed to keep the pinion angle, which ReadyLift says is set by the block angles.
What’s included

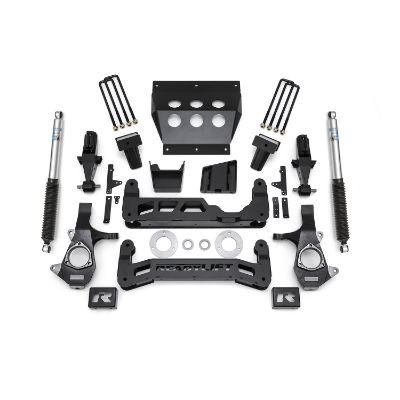

The kit includes the clam-shell lower strut extensions, the TCT lower bushings, the boxed steel cross members, the full width skid plate, the differential drop brackets, the fabricated rear blocks and the extended length Bilstein rear shocks.
